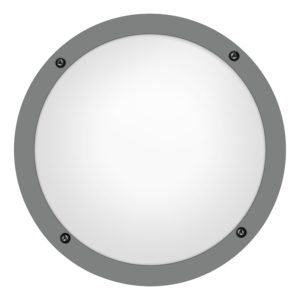

IP65 20W Emergency LED Bulkhead Light with Micro-Wave Detector

20W Emergency IP65 LED Ceiling/Wall/Bulkhead Light 3 hours can be perfect to work with our Emergency System and smart Micro-Wave presence detector,30% watts of normal watts can be emergency working 3 hours, which are widely using the solution of park lighting, corridor lighting, exterior lighting and amenity lighting.

>>Model:ILED-BH-R20W-EMS

>>Inventory: 500+ pcs In Stock

>>Categories: >> Commercial LED Lights» LED Bulkhead Light
Contact Now

CLICK HERE TO SEND INQUIRY


Wechat-iLeds

Description

Order Code

Installation

Application

IP65 20W Emergency LED Bulkhead Light with Micro-Wave Detector Key Parameters

Model

Wattage

Lumen Output

Dimensions

ILED-BH-R20W-EMS

20W

1700LM

φ300x90mm



Input

220-240VAC

LED Source

LM80

Lumen Output

90LM/W

Size

φ300x90mm

Materials

Aluminum+PC

PF

>0.9

CCT

2800-6500K

CRI

>80

Electrical Classification

Class I

IP Class

IP65

Beam Angel

120°

Body Color

White/Black/Silver

Warranty

3-5 years

Certifications

SAA,CE,RoHS



ON/Off Micro-Wave Sensor Detecor Parameters

Input

220V~240VAC 50/60Hz

Mount Height

6 meters

Detection sensitivity

10% / 50% / 75% / 100%

Hold Time

5s / 90s / 3min / 10min

Corridor Function

Daylight Sensor

5lux / 15lux / 50lux / Disable

Stand-by dimming level

/

Motion Detection

0.5-3m / s

Detection Angle

150°(Wall Installation), 360°(Ceiling Installation)

Warranty

3-5years

Certification

CE&RoHS&SAA,TUV





Emergency  Parameters

Emergency Watts

2.5W

Emergency Duration

3 hours

Charging Time

24 Hours

Emergency Lumen

300LM



IP65 20W Emergency LED Bulkhead Light with Micro-Wave Detector Package Detail

Net Weight

Quantites /Carton

Carton Size

Gross Weight/Carton

1.68KGs

10 pcs

64x54x34cm

18.2KGS



Application

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.


Drawing Bulkhead Fitting
Drawing Bulkhead Fitting
Inside of Bulkhead Fixture
Inside of Bulkhead Fixture
Connector Bulkhead Fitting
Connector Bulkhead Fitting
Producing Bulkhead Fixture
Producing Bulkhead Fixture
Photometric Bulkhead Fixture
Photometric Bulkhead Fixture

Color Temperature and Color of Body will be as the Postfix of all code.

CCT: 3000K – 3K / 4000K – 4K / 5000K -5K / 6000K-6K

Color Finished: White Painted – WH / Black Painted – BL / Silver Gray / SG

Standard CCT and Color Finished:  Black  Painted, 3000K.



For example:

Normal, 4000K, Black Painted , the detail code is

ILED-BH-R20W-4KBL



20W Round LED Bulkhead Order Items

Item NO.

Function Detail

MOQ

ILED-BH-R20W

Normal

100 pieces

ILED-BH-R20W-MC

On/Off Motion Sensor

100 pieces

ILED-BH-R20W-MLC

Dimmable Standby Sensor

100 pieces

ILED-BH-R20W-EM

Emergency 3 Hours

100 pieces

ILED-BH-R20W-EMS

Sensor + Emergency 3 Hours

100 pieces

ILED-BH-R20W-MLEM

Dimmable Standby Sensor + Emergency 3 Hours

100 pieces

ILED-BH-R20W-MLS

Mast Slave Motion Sensor

100 pieces

ILED-BH-R20W-DALI

DALI Dimmable

100 pieces

ILED-BH-R20W-DIM

Triac Dimmable

100 pieces

ILED-BH-R20W-DM10

0-10V Dimmable

100 pieces

30W Round LED Bulkhead Order Items

Item NO.

Function Detail

MOQ

ILED-BH-R30W

Normal

100 pieces

ILED-BH-R30W-MC

On/Off Motion Sensor

100 pieces

ILED-BH-R30W-MLC

Dimmable Standby Sensor

100 pieces

ILED-BH-R30W-EM

Emergency 3 Hours

100 pieces

ILED-BH-R30W-EMS

Sensor + Emergency 3 Hours

100 pieces

ILED-BH-R30W-MLEM

Dimmable Standby Sensor + Emergency 3 Hours

100 pieces

ILED-BH-R30W-MLS

Mast Slave Motion Sensor

100 pieces

ILED-BH-R30W-DALI

DALI Dimmable

100 pieces

ILED-BH-R30W-DIM

Triac Dimmable

100 pieces

ILED-BH-R30W-DM10

0-10V Dimmable

100 pieces
