Innovate,Design,Customize & Manufacture Commercial,Industrial and Traffic Lighting

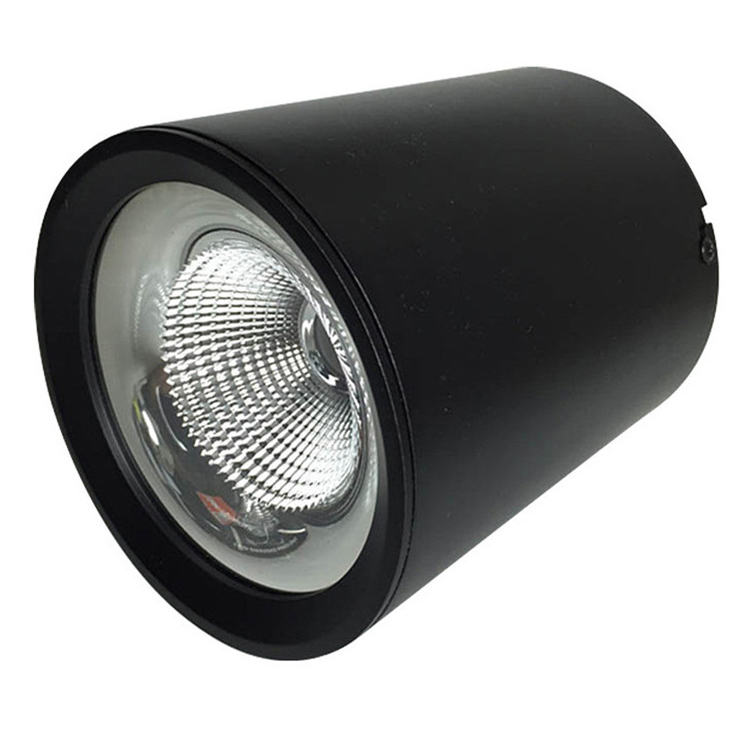

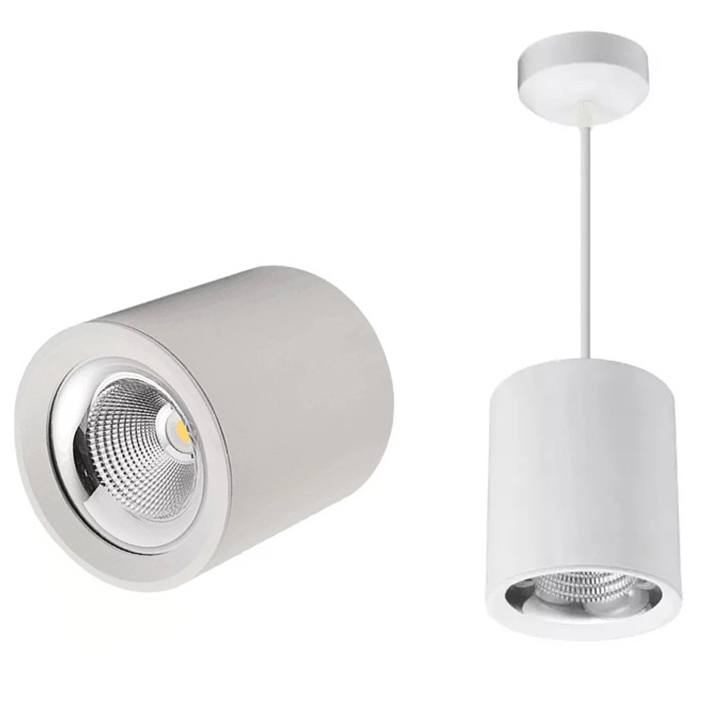

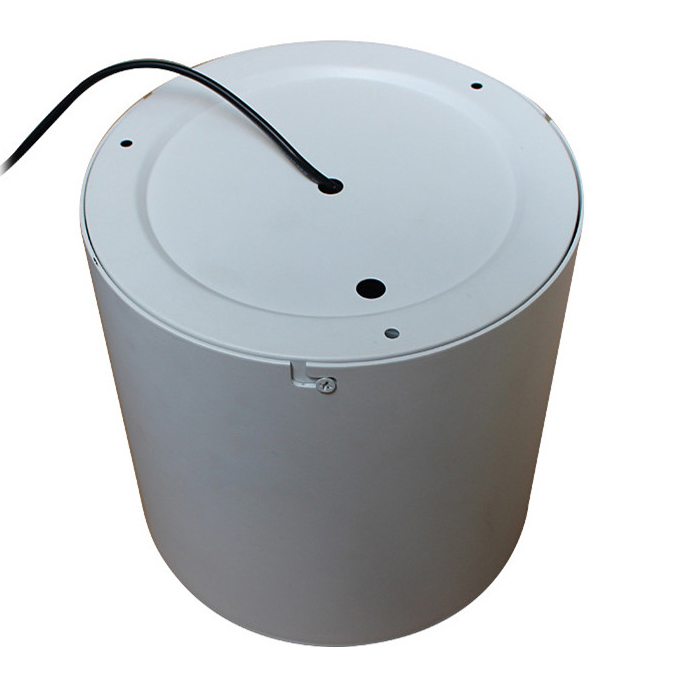

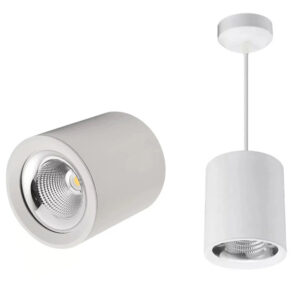

Surface Mounted LED Downlights COB Round 10W-35W ILED-DL-B S2

Model: ILED-DL-B S2 Categories , Tag

Square Surface Mounted LED Downlight COB adopt Tridonic LED Driver and Citizen COB LED with strong quality and high lumen output,great Color Index. Triac Dimmable , 0-10V Dimmable or DALI functions are available.

Highlights

→ High Lumen 100LM/W

→ CREE COB LED, CRI >92

→ Aluminum Body

→ DALI,Triac,0-10V Dimmable



iLed Wechat
certification
SKU ILED-DL-B S2 Category: , Tags:

Model

Watts

Lumen

Size

Beam angle

IP Class

Function

ILED-DL3-B S2

9W

900LM

D90x90mm

60°

IP42 or IP44

Normal

Triac Dimmable

0-10V Dimmable

DALI Dimmable

ILED-DL4-B S2

18W

1800LM

D110x120mm

60°

IP42 or IP44

ILED-DL5-B S2

28W

2800LM

D130x135mm

60°

IP42 or IP44

ILED-DL6-B S2

35W

3500LM

D160x165mm

60°

IP42 or IP44



Input 220-240VAC/110-277VAC LED Source CREE COB LED
Materials Aluminum+PC PF >0.9
Watts 9W-35W Lumen Effective 100LM/W
Color Temperature 2800-6000K CRI >92
Electrical Classification Class I IP Rating IP42 or IP44
Beam Angel  120° Body Color White/Black
Warranty 3-5 years Certifications SAA CE ROHS
Functions DALI,Triac Dimmable,0-10V Dimmable

Send Your Inquiry

High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.

Surface Mounted LED Downlights

Surface Mounted LED Downlights for Commercial Lighting

Specifications

Model

Watts

Lumen

Size

Beam angle

IP Class

Function

ILED-DL3-B S2

9W

900LM

D90x90mm

60°

IP42 or IP44

Normal

Triac Dimmable

0-10V Dimmable

DALI Dimmable

ILED-DL4-B S2

18W

1800LM

D110x120mm

60°

IP42 or IP44

ILED-DL5-B S2

28W

2800LM

D130x135mm

60°

IP42 or IP44

ILED-DL6-B S2

35W

3500LM

D160x165mm

60°

IP42 or IP44



Input 220-240VAC/110-277VAC LED Source CREE COB LED
Materials Aluminum+PC PF >0.9
Watts 9W-35W Lumen Effective 100LM/W
Color Temperature 2800-6000K CRI >92
Electrical Classification Class I IP Rating IP42 or IP44
Beam Angel  120° Body Color White/Black
Warranty 3-5 years Certifications SAA CE ROHS
Functions DALI,Triac Dimmable,0-10V Dimmable

Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.

Surface Mounted LED Downlights

Surface Mounted LED Downlights for Commercial Lighting
