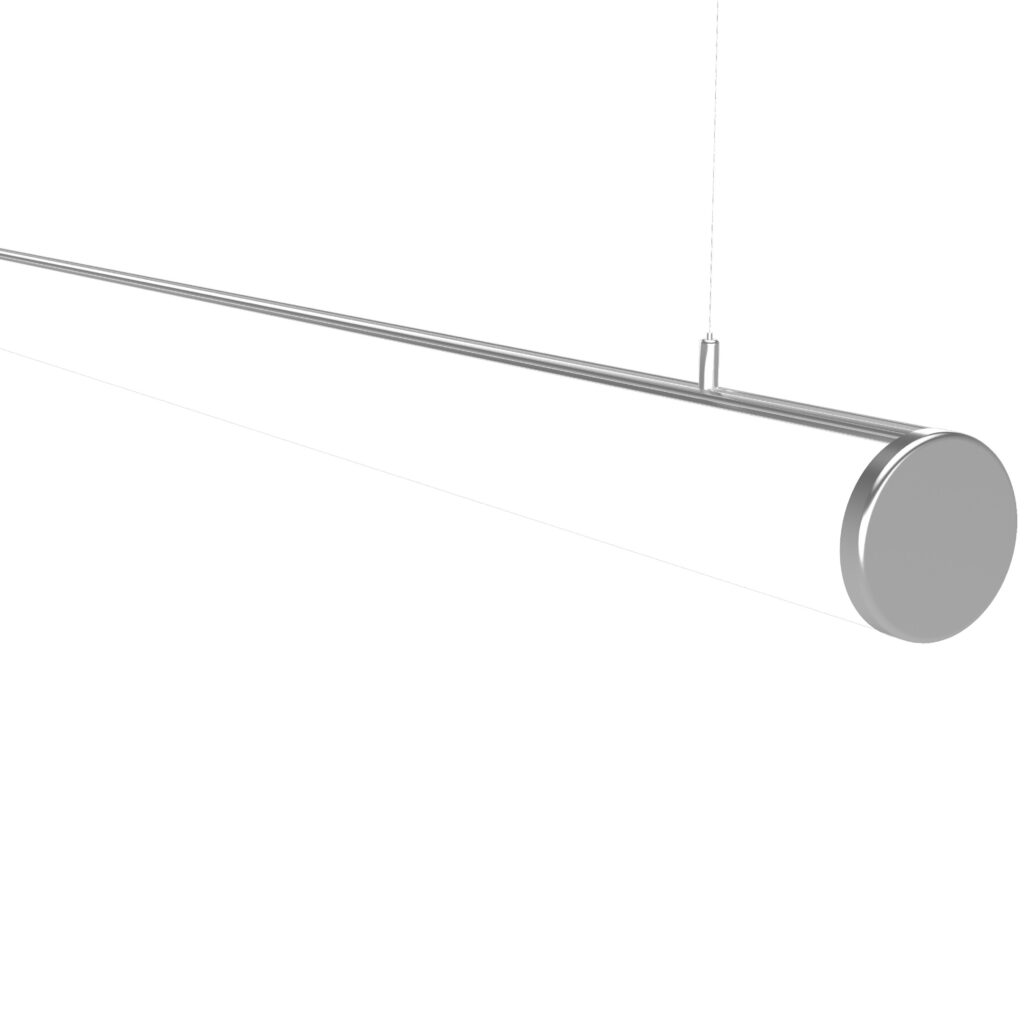

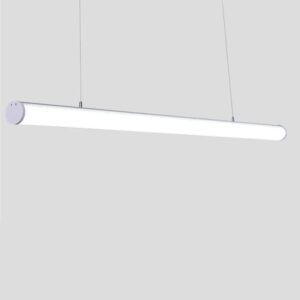

Home >> Product >> Commercial LED Lights» LED Linear Lighting >> 1.2 meter 4 feet Round Tube LED Linear Light for Office Lighting
iLed C Series Circle LED Linear Light is an innovative range of LED luminaires. Designed to achieve high output with good quality they are ideal for a range of commercial and architectural applications.1.2 meters 4 feet Round Tube LED Linear Light adopt Aluminum body and PC diffuser,36W with 100LM/W lumen effective. The input can be 24VDC or 110-240VAC.Also can have Dimmable, DALi,0-10V options to your projects application. Any length can be CUSTOMISED.
CLICK HERE TO SEND INQUIRY
Description
Order Code
Installation
Application
1.2 meter 4 feet Round Tube LED Linear Light for Office Lighting Key Parameters
Model |
Wattage |
Lumen Output |
Dimensions |
ILED-LL-60C |
18W |
1800LM |
φ60mmx600mm |
ILED-LL-120C |
36W |
3600LM |
φ60mmx1200mm |
Input |
24VDC / 110-240VAC |
LED Source |
LM80 |
Lumen Output |
90-100LM/W |
Size |
φ60mmx1200mm |
Materials |
Aluminum+PC |
PF |
>0.9 |
CCT |
2800-6500K |
CRI |
>80 |
Electrical Classification |
Class II |
IP Class |
IP42 |
Beam Angel |
120° |
Body Color |
White Black Aluminum Silver |
Warranty |
3-5 years |
Certifications |
SAA,CE,RoHS |
1.2 meter 4 feet Round Tube LED Linear Light for Office Lighting Application
Widely Providing lighting to commercial, retail, education, public sector, health centres, leisure centres and libraries,etc.
Color Temperture and Color of Body will be as the Postfix of all code. CCT: 3000K – 3K / 4000K – 4K / 5000K -5K / 6000K-6K Color Finished: White Painted – WH / Black Painted – BL / Aluminum Silver Standard CCT and Color Finished: Aluminum Silver, 4000K.
For example: Normal, 4000K, Aluminum Silver , the detail code is ILED-LL-120C-4K
|
||
0.6 meter 2 feet 18W Round LED Linear Light Order Items |
||
Item NO. |
Function Detail |
MOQ |
ILED-LL-60C |
Normal |
100 pieces |
ILED-LL-60C-DALI |
DALi Dimmable |
100 pieces |
ILED-LL-60C-DIM |
Triac Dimmable |
100 pieces |
ILED-LL-60C-DM10 |
0-10V Dimmable |
100 pieces |
1.2 meter 4 feet 36W Round LED Linear Light Order Items |
||
Item NO. |
Function Detail |
MOQ |
ILED-LL-120C |
Normal |
100 pieces |
ILED-LL-120C-DALI |
DALi Dimmable |
100 pieces |
ILED-LL-120C-DIM |
Triac Dimmable |
100 pieces |
ILED-LL-120C-DM10 |
0-10V Dimmable |
100 pieces |
