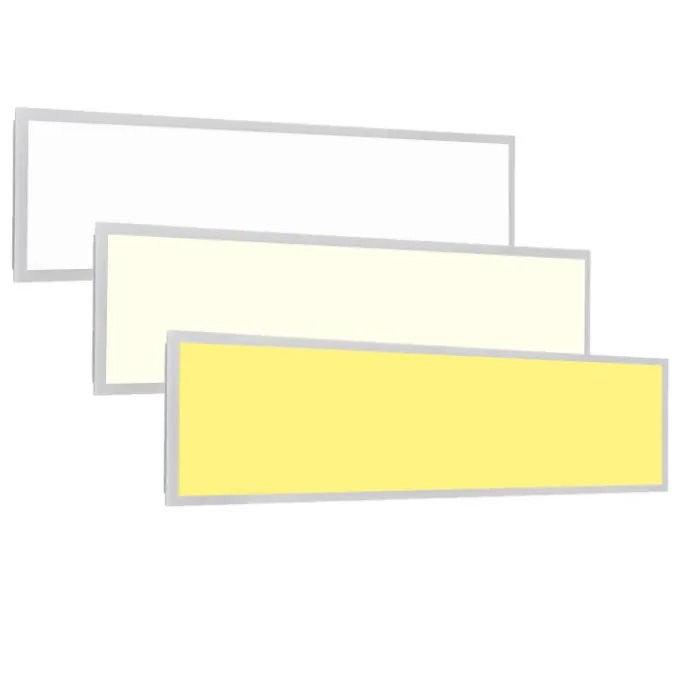

1200 x 300 Panel LED Lighting

>>  Model NO.:  ILED-PL12030-A48W

Our 1200 x 300 Panel LED Lighting ILED-PL12030-A48W adopt high Power 3014 Epistar LED chips and edge-lite with high quality light guide plate. Beautiful natural warm white lighting colour with high colour rendering index. Not emitting UV and IR, no RF interference, longer life than incandescent & fluorescent. No mercury, wide voltage 230/12VAC model available, constant current design. Solid state, high shock & vibration resistant, 95% savings in energy consumption, quiet, no noise, no flickering. Product is in accordance with CE, and RoHS testing standards. Produced under ISO9000 Quality System.

Contact Now

CLICK HERE TO SEND INQUIRY

WhatsApp-iLeds Wechat-iLeds

Description

Features:

Technical Specifications:

Name: 1200 x 300 Panel LED Lighting  ILED-PL12030-A48W
Light Source: 464pcs super brightness 3014 smd Epistar
Input Voltage:85V-265VAC
Power Consumption: 48Watt
Lumen output: 3600LM
Lumen Efficacy: > 75LM/W
Lumen maintenance:70% at 30000 hours, no flickering
Color Temperature:2800-7500K
Color Rendering index:>75
Surface color:silver, white, black, chrome, golden
Dimension:1200 x 300 x 11 mm
Beam Angle: 120°
Operation Temperature:-40~50 degrees Celsius
Protection Rating:IP41
Material:aluminum shell and aluminum PCB board and PC
Installation:  recessed mounted
Certificate: CE,RoHS
Warranty: 2 years
Low heat, no UV or IR light radiation, Environmentally Safe-no Mercury

Features:
Our 1200 x 300 Panel LED Lighting ILED-PL12030-A48W adopt high Power 3014 Epistar LED chips and edge-lite with high quality light guide plate. Beautiful natural warm white lighting colour with high colour rendering index. Not emitting UV and IR, no RF interference, longer life than incandescent & fluorescent. No mercury, wide voltage 230/12VAC model available, constant current design. Solid state, high shock & vibration resistant, 95% savings in energy consumption, quiet, no noise, no flickering. Product is in accordance with CE, and RoHS testing standards. Produced under ISO9000 Quality System.

Advantages:
95% energy-saving
Long Lifetime: up to 50000 hours / 15 years, 8 hour/day
Visual attractive with quality appearance
Material: Aluminium
No mercury contained
UV and IR free
Very low working temperature
Producing minimum heat
No additional fixtures needed
CE/RoHS approval

Application:

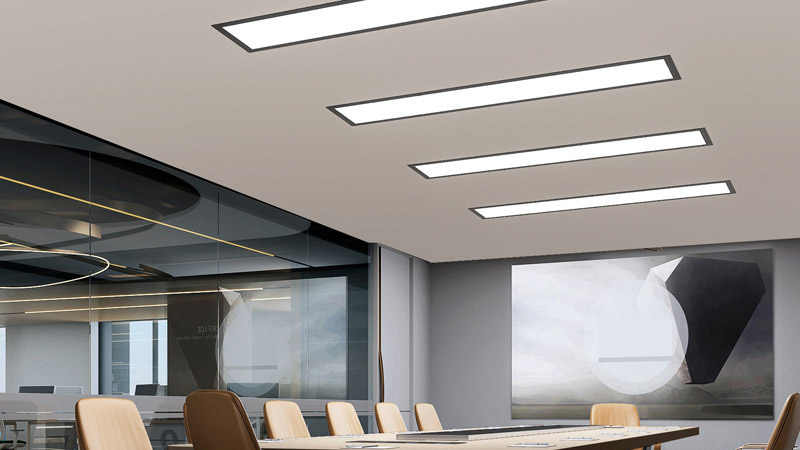

Our 1200 x 300 Panel LED Lighting ILED-PL12030-A48W are widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.

Package:

Net weight: 4.2 KG
Out Carton Size: 130 x 41 x  28 cm
Total Gross Weight(KG): 23.5 KG
Quantities / Carton: 4 pcs
