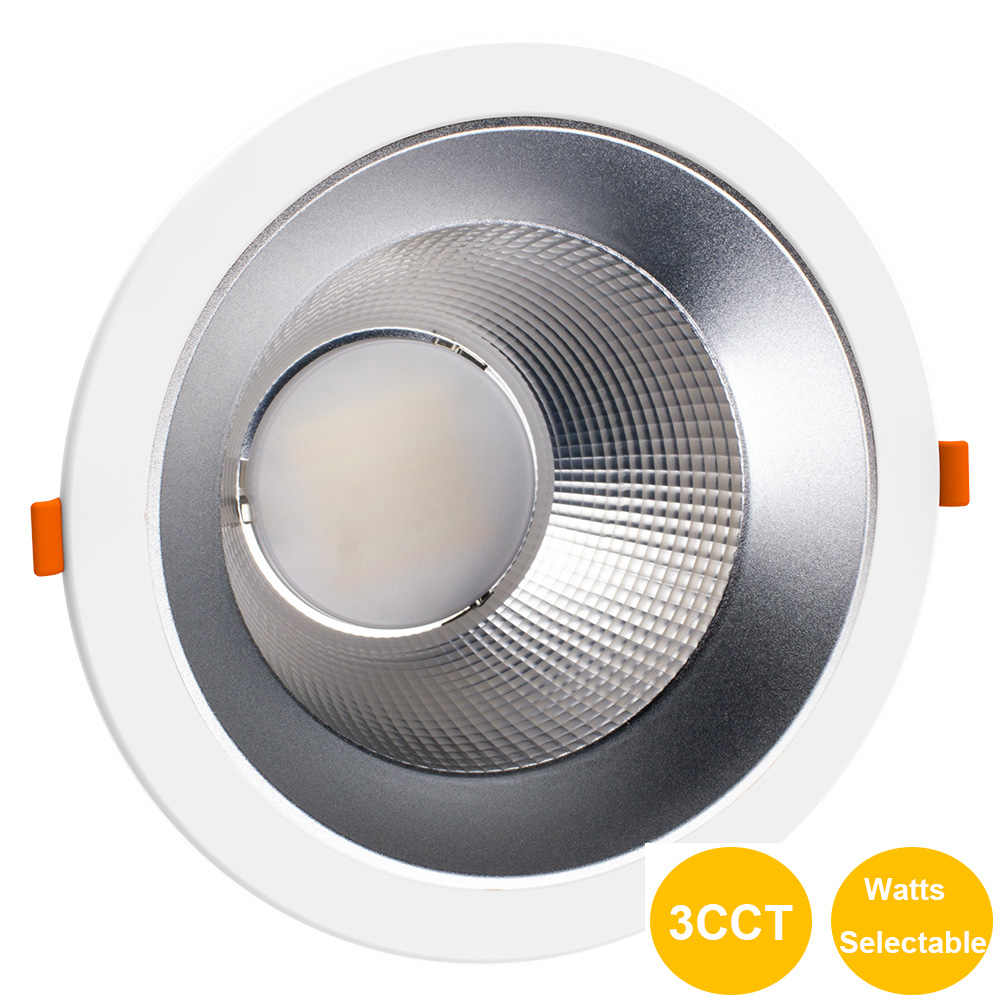

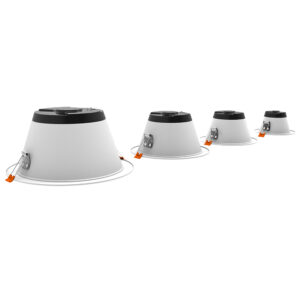

3CCT Anti Glare LED Downlights with Watts Selectable 3 to 8 Inches

Model: ILED-DL(3/4/6/8)-A D6 Categories , Tags , , ,

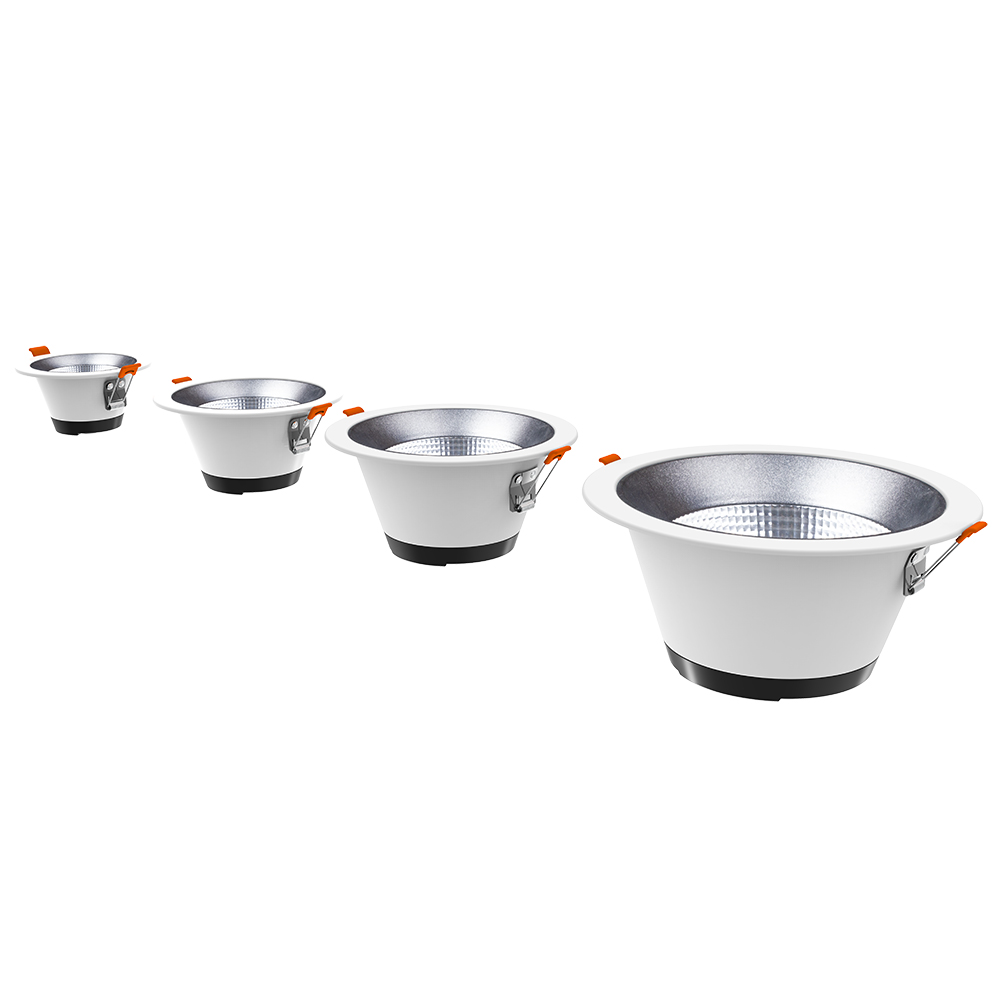

The ILED-DL (3/4/6/8) – A D6 series comes in various sizes and specifications, including 10W, 15W, 20W, and 35W; It has a high brightness, soft light, and deep anti glare design, with an elegant shape that meets the lighting needs of various occasions. The material is made of aluminum alloy shell, which has good heat dissipation performance, long service life, and durability; High CRL, anti glare, no visible flicker, no blue light hazard.

Highlights

→ High Lumen 100LM/W

→ LM80 LED

→ Aluminum Body

→ DALI,Triac,0-10V Dimmable or Emergency

→ 3CCT(3KK,6KK,4KK)

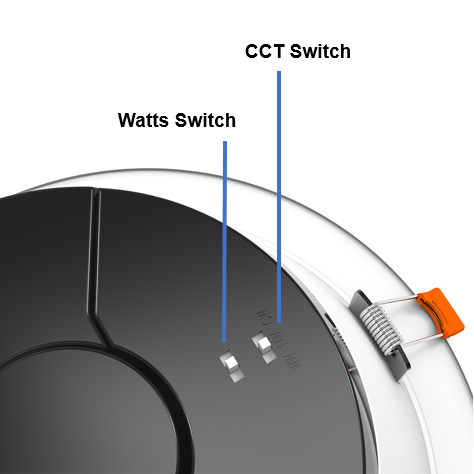

→ Watts Selectable

iLed Wechat
certification
SKU ILED-DL(3/4/6/8)-A D6 Category: , Tags: , , ,
Model Watts Lumen Size Cutout
ILED-DL3-A D6 10W 1500LM φ113x60mm Φ90-100mm
ILED-DL4-A D6 15W 2100LM Φ145x74mm Φ120-130mm
ILED-DL6-A D6 20W 3600LM Φ174x87mm Φ145-155mm
ILED-DL8-A D6 35W 4800LM Φ232x111mm Φ195-210mm



Input 220-240VAC LED Source  LM80 LEDs
Materials Aluminum+PC PF >0.9
Watts 10W/15W/20W/35W Lumen Effective 100LM/W
Color Temperature 2800-6500K CRI >80
IP Rating IP42 Body Color White
Warranty 3-5 years Certifications SAA CE ROHS







Send Your Inquiry

High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.

Specifications
Model Watts Lumen Size Cutout
ILED-DL3-A D6 10W 1500LM φ113x60mm Φ90-100mm
ILED-DL4-A D6 15W 2100LM Φ145x74mm Φ120-130mm
ILED-DL6-A D6 20W 3600LM Φ174x87mm Φ145-155mm
ILED-DL8-A D6 35W 4800LM Φ232x111mm Φ195-210mm



Input 220-240VAC LED Source  LM80 LEDs
Materials Aluminum+PC PF >0.9
Watts 10W/15W/20W/35W Lumen Effective 100LM/W
Color Temperature 2800-6500K CRI >80
IP Rating IP42 Body Color White
Warranty 3-5 years Certifications SAA CE ROHS







Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
