Home >> Product >> Facade LED Lighting» LED Wall Packed Light >> 40W IP65 Waterproof Motion Sensor UL LED Wall Lamp LED
Features: .Triac Dimmable, 0-10V Dimmable or DALI .Motion Sensor or Standby Motion Sensor .Emergency or DALI Emergency .Sensor + Emergency .IP65 Waterproof,IK10 .White , Black or Silver Gray for Option . SAA, CE-EMC,CE-LVD,RoHS approved
CLICK HERE TO SEND INQUIRY
Description
Order Code
Installation
Application

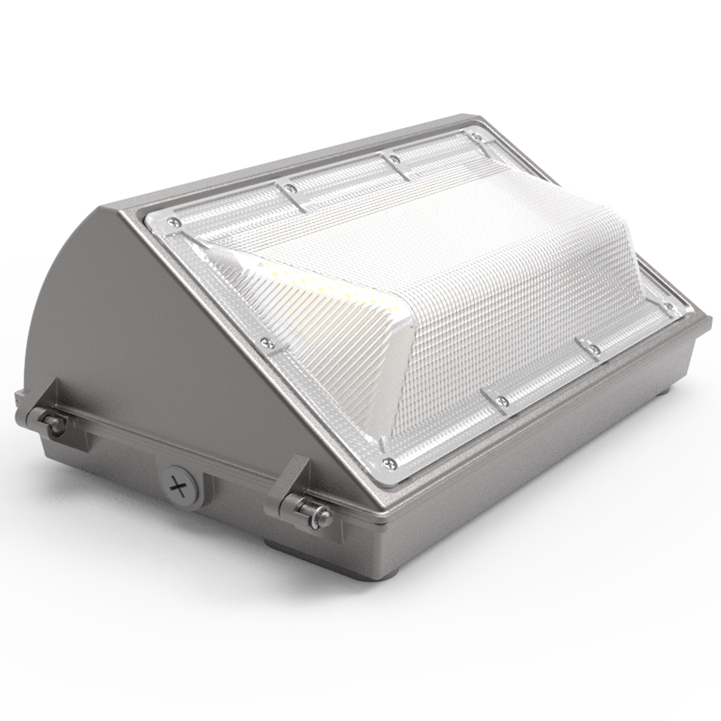

40W IP65 Waterproof Motion Sensor UL Wall Lamp LED Wall Pack Light
Features:
.Triac Dimmable, 0-10V Dimmable or DALI
.Motion Sensor or Standby Motion Sensor
.Emergency or DALI Emergency
.Sensor + Emergency
.IP65 Waterproof,IK10
.White , Black or Silver Gray for Option
. SAA, CE-EMC,CE-LVD,RoHS approved
Key Data:
Model |
Watts |
Lumen |
Size |
IP Class |
Function |
ILED-WPL-A01 |
40W |
4400LM |
361*235*187mm |
IP65 |
Normal |
ILED-WPL-A01-DIM |
40W |
4400LM |
361*235*187mm |
IP65 |
Triac Dimmable |
ILED-WPL-A01-DM10 |
40W |
4400LM |
361*235*187mm |
IP65 |
0-10V Dimmable |
ILED-WPL-A01-DALI |
40W |
4400LM |
361*235*187mm |
IP65 |
DALI Dimmable |
ILED-WPL-A01-MLS |
40W |
4400LM |
361*235*187mm |
IP65 |
Mast Slave Motion Sensor |
ILED-WPL-A01-MC |
40W |
4400LM |
361*235*187mm |
IP65 |
On/Off Motion Sensor |
ILED-WPL-A01-MLC |
40W |
4400LM |
361*235*187mm |
IP65 |
Dimmable Standby Sensor |
ILED-WPL-A01-EM |
40W |
4400LM |
361*235*187mm |
IP65 |
Emergency |
ILED-WPL-A01-EMS |
40W |
4400LM |
361*235*187mm |
IP65 |
Sensor + Emergency |
ILED-WPL-A01-MLEM |
40W |
4400LM |
361*235*187mm |
IP65 |
Dimmable Standby Sensor + Emergency |
Other Parameters
Input |
100V~240VAC 50/60Hz |
LED Source |
LM80 SMD LEDs |
Materials |
Aluminum +PC or Aluminum +Glass |
PF |
>0.9 |
CCT |
2800-7000K |
CRI |
>80 |
Electrical Classification |
Class I |
IP Class |
IP65 |
Beam angle |
120° |
Body Color |
|
Watt |
40W |
Install Style |
Surface Mounted |
Warranty |
3~5 years |
Certification |
CE&RoHS&SAA,TUV |
Package Information:
Model |
Carton Size |
Quantities / Carton |
Net Weight/Carton |
Gross Weight / Carton |
ILED-WPL-A01 |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-DIM |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-DM10 |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-DALI |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-MLS |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-MC |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-MLC |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-EM |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-EMS |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
ILED-WPL-A01-MLEM |
590 x 415 x 500 mm |
2 pieces |
5.6KGS |
15KGS |
Application:
Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Replacement for traditional T8 Fluorescent Tube Light, etc.
