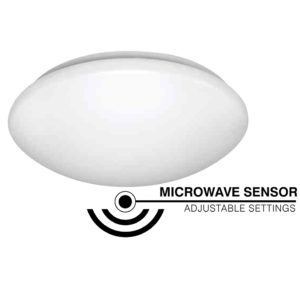

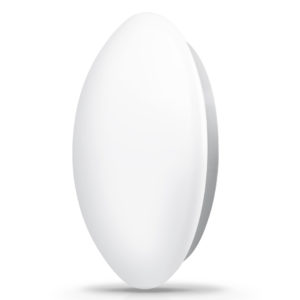

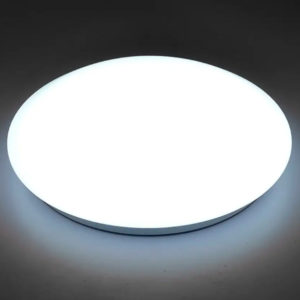

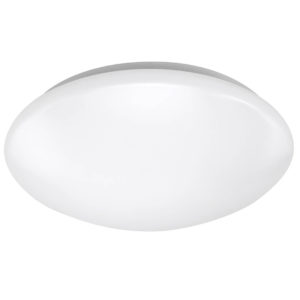

24W 500mm Round LED Oyster Light adopt LED Driver and Osram 2835 LED with strong quality and high lumen output,great Color Index. Triac Dimmable , 0-10V Dimmable , DALI or Emergency functions are available.
CLICK HERE TO SEND INQUIRY
Description
Order Code
Installation
Application
Features:
Ø Use high quality SMD LM80 2835 LEDs as lighting source
Ø Use high frequency driver in all models and suitable for wall and ceiling mounting.
Ø Luminous Efficiency > 90LM/W
Ø Step Dimmable Motion Sensor is available(Just for 24W)
Ø Triac Dimmable , 0-10V Dimmable, DALI are for option.
Ø Emergency is available.
Key Data:
Model |
Watts |
Lumen |
Size |
Beam angle |
IP Class |
Function |
ILED-OL-B24W-500 |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Normal |
ILED-OL- B24W -500-DIM |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Triac Dimmable |
ILED-OL- B24W -500-DM10 |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
0-10V Dimmable |
ILED-OL- B24W 500-ALI |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
DALI Dimmable |
ILED-OL- B24W -500-MLS |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Mast Slave Motion Sensor |
ILED-OL- B24W -500-MC |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
On/Off Motion Sensor |
ILED-OL- B24W -500-MLC |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Dimmable Standby Sensor |
ILED-OL- B24W -500-EM |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Emergency |
ILED-OL- B24W -500-EMS |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Sensor + Emergency |
ILED-OL- B24W -500-MLEM |
24W |
2000LM |
Ф500x108mm |
115° |
IP42 |
Dimmable Standby Sensor + Emergency |
Other Parameters
Input |
100V~240VAC 50/60Hz |
LED Source |
LM80 LEDs |
Materials |
iron+ PC |
PF |
>0.9 |
CCT |
2800-7000K |
CRI |
>80 |
Electrical Classification |
Class I |
IP Class |
IP42 |
Beam angle |
120° |
Body Color |
White Painted or Silver |
Watt |
24W |
Install Style |
Surface Mounted |
Warranty |
3~5 years |
Certification |
CE&RoHS&SAA,TUV |
Package Information:
Model |
Carton Size |
Quantities / Carton |
Net Weight/Carton |
Gross Weight / Carton |
ILED-OL-B40W-500 |
640x510x520 mm |
5 pieces |
1.56KGS |
9.7KGS |
Application:
Widely used in Bathroom , corridor, Shopping Center, Hotel, Stair,Hospital, etc.
Model |
Watts |
Function |
ILED-OL-B40W-500 |
40W |
Normal |
ILED-OL-B40W-500-DIM |
40W |
Triac Dimmable |
ILED-OL-B40W-500-DM10 |
40W |
0-10V Dimmable |
ILED-OL-B40W-500-DALI |
40W |
DALI Dimmable |
ILED-OL-B40W-500-EM |
40W |
Emergency |
ILED-OL-B40W-500-MLEM |
40W |
Dimmable Standby Sensor + Emergency |
Battery Powered Security 20W Emergency LED Bulkhead Light
IP65 Round 10W 15W 18W 20W 275mm 2D Exterior LED Bulkhead Light
Large 500mm 800mm 1000mm Round LED Oyster Light Ceiling light
DALI Triac 0-10V Dimmable LED Oyster Plafondi Ceiling Light
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety

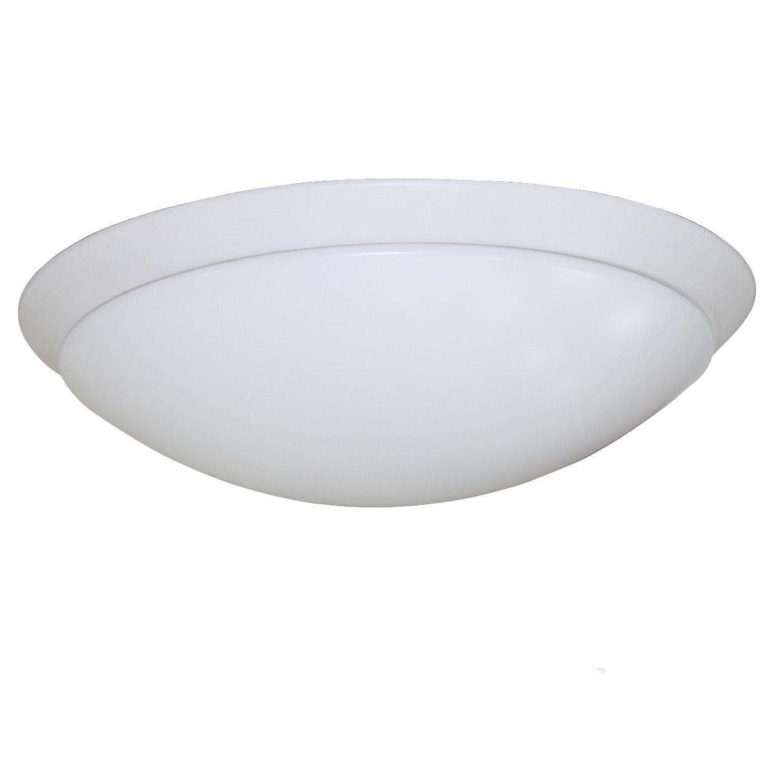

18W E27 Bulb Base Aluminum Housing Ceiling Light Fixture
