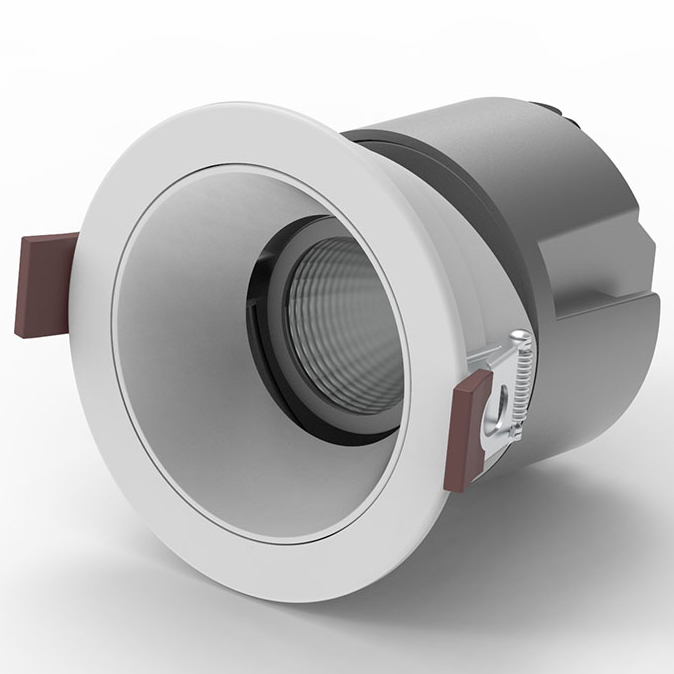

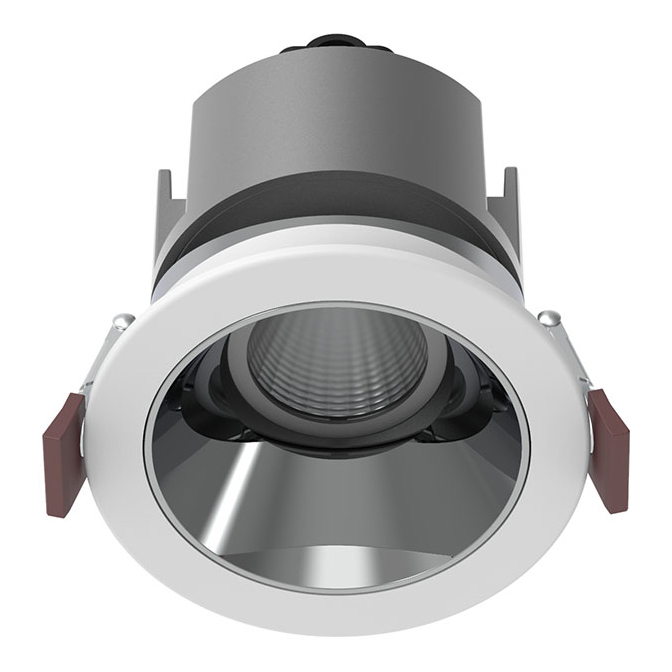

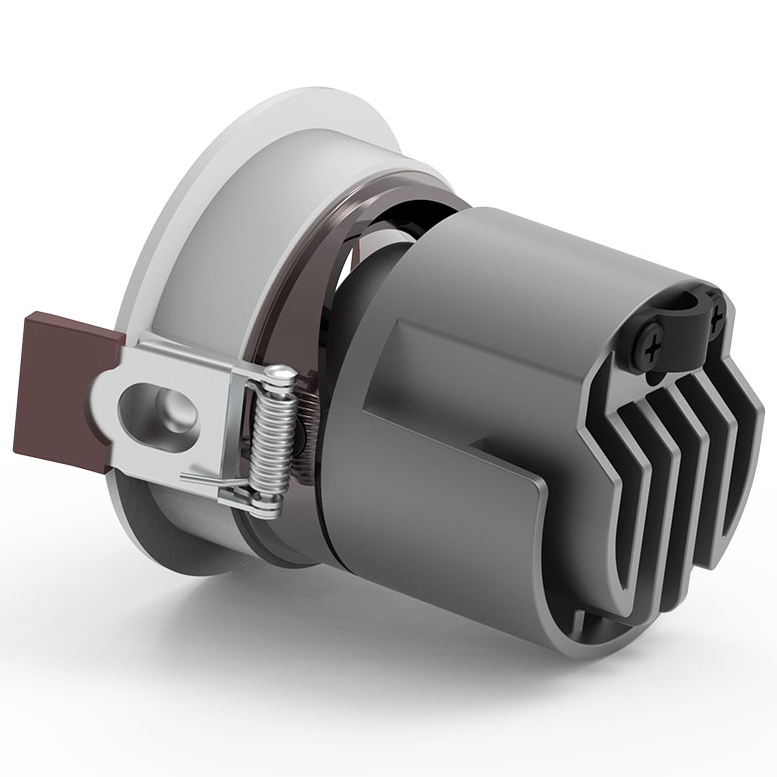

Recessed COB LED Downlight Tiltable Anti Glare ILED-CL-A C1
ILED-CL-A C1 is a series anti glare cob LED downlights ,adopt dieCast aluminum and high brightness CREE or Citizen COB Light.We can match Philips, Tridonic, Lifun Drivers for this downlight fittings according clients’ requirements. High color index,low glare and stable quality is the best option to your hotel and shop project in the ceiling lighting.
Highlights
→ High Lumen 100LM/W
→ CREE COB LED,CRI>92
→ Aluminum Body
→ DALI,Triac,0-10V Dimmable
→ Emergency
→ Low UGR,Anti Glare
|
Model |
Watt |
Lumen |
Size |
Cutout |
Lens |
|
ILED-CL2-A C1 |
5W |
450LM |
D63*H63mm |
D55mm |
15,24,38° |
|
ILED-CL3-A C1 7W |
7W |
630LM |
D85*H71mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 9W |
9W |
810LM |
D85*H76mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 12W |
12W |
1080LM |
D85*H93mm |
D75mm |
15,24,38° |
|
ILED-CL4-A C1 |
18W |
1620LM |
D105*H99mm |
D95mm |
15,24,38° |
|
ILED-CL5-A C1 |
28W |
2000LM |
D130*H115mm |
D120mm |
15,24,38° |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum +PC | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Lens | 15°,24°,38° | IP Class | IP42 |
| Body Color | White | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
|
Model |
Watt |
Lumen |
Size |
Cutout |
Lens |
|
ILED-CL2-A C1 |
5W |
450LM |
D63*H63mm |
D55mm |
15,24,38° |
|
ILED-CL3-A C1 7W |
7W |
630LM |
D85*H71mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 9W |
9W |
810LM |
D85*H76mm |
D75mm |
15,24,38° |
|
ILED-CL3-A C1 12W |
12W |
1080LM |
D85*H93mm |
D75mm |
15,24,38° |
|
ILED-CL4-A C1 |
18W |
1620LM |
D105*H99mm |
D95mm |
15,24,38° |
|
ILED-CL5-A C1 |
28W |
2000LM |
D130*H115mm |
D120mm |
15,24,38° |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum +PC | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Lens | 15°,24°,38° | IP Class | IP42 |
| Body Color | White | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
