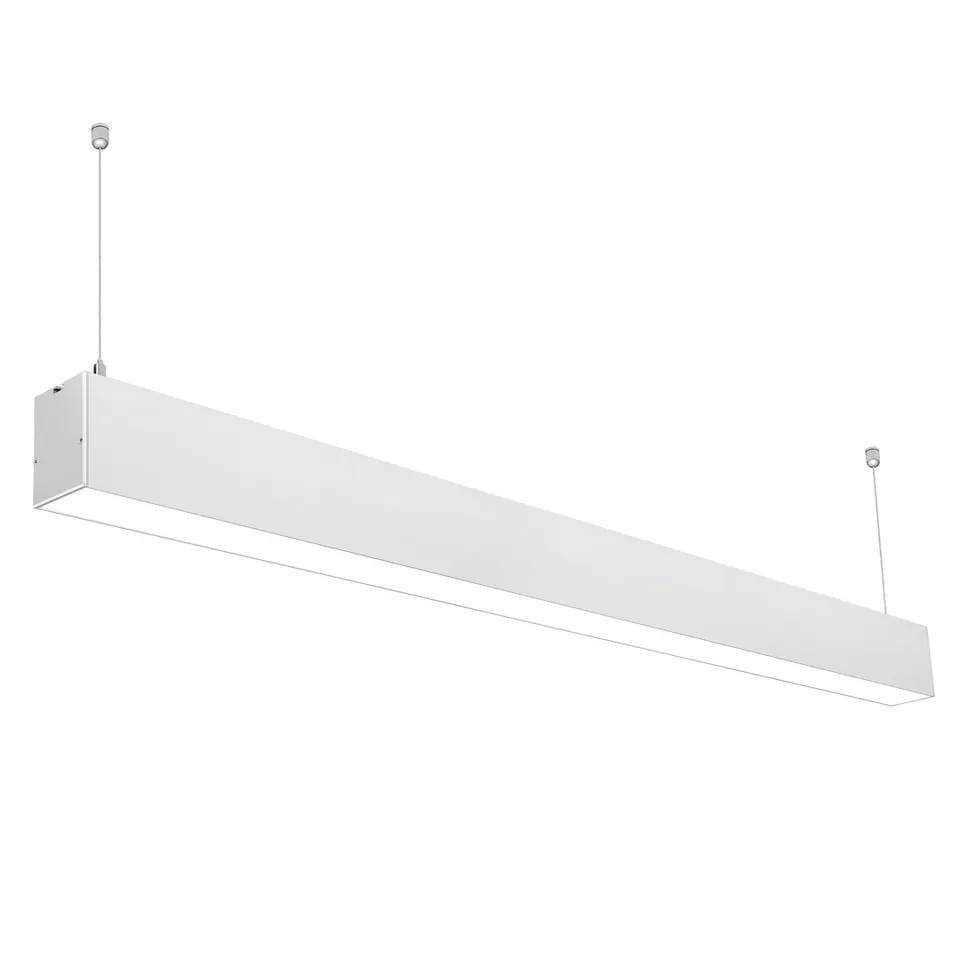

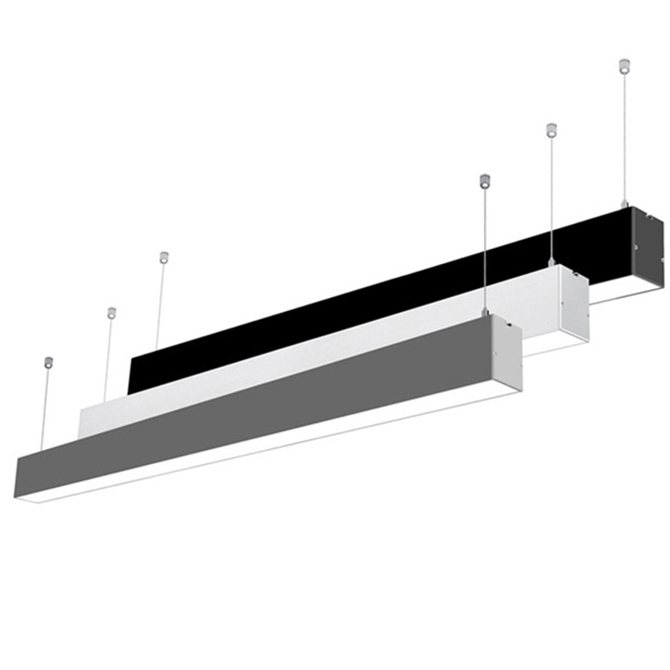

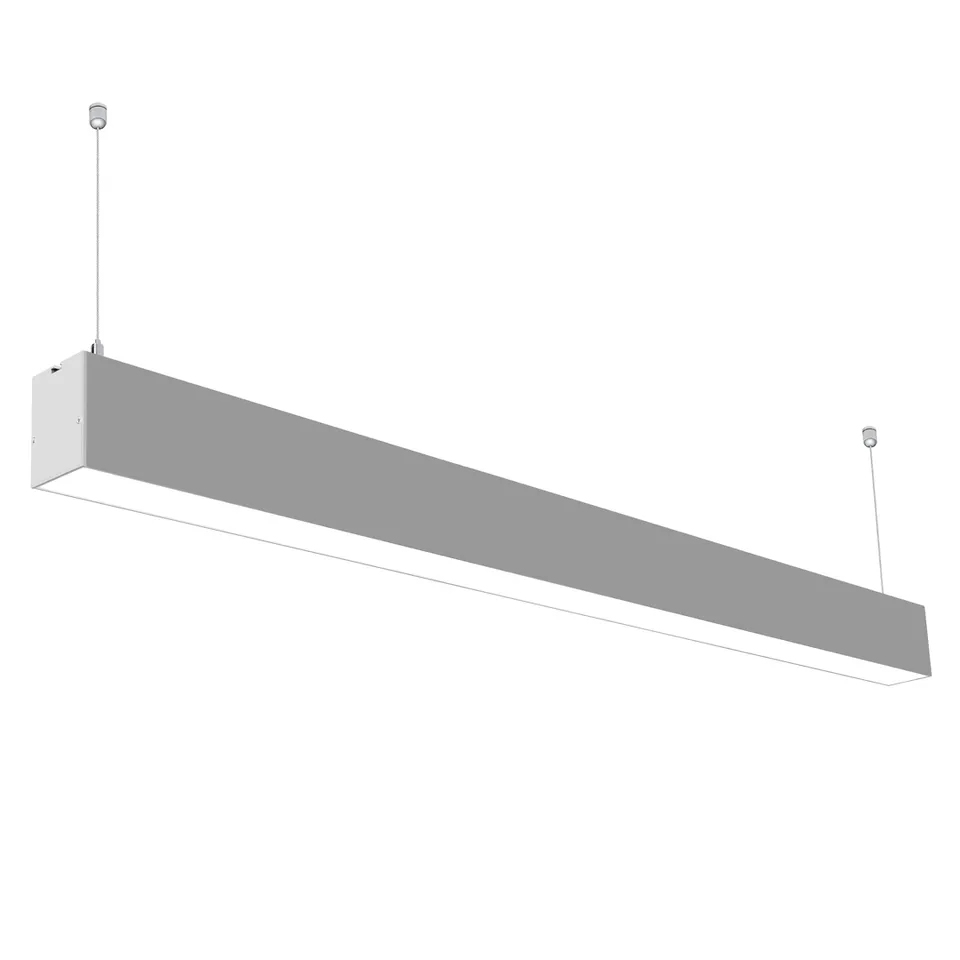

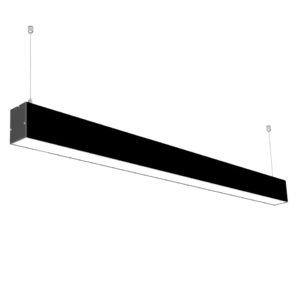

Custom LED Linear Light Pendant Flush Mount Ceiling for Office Lighting
iLed A Series Square LED Linear Light is an innovative range of LED luminaires.Designed to achieve high output with good quality they are ideal for a range of commercial and architectural applications.1.2 meters 4 feet square LED Linear Light adopt Aluminum body and PC diffuser,36W with 100LM/W lumen effective. Also can have Dimmable, DALi,0-10V, Motion Sensor and Emergency options to your projects application. Any length can be CUSTOMISED.
Highlights
→ High Lumen 90-100LM/W
→ LumiLEDs LED
→ Aluminum Body
→ Custom Shapes
→ DALI,Triac,0-10V Dimmable
→ Sensor,Emergency
| Model | Wattage | Lumen Output | Dimensions |
| ILED-LL-60A | 18W | 1800LM (100LM / W) | L600x70x50mm |
| ILED-LL-120A | 36W | 3600LM (100LM / W) | L1200x70x50mm |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 |
| Wattage | 18W/36W | PF | >0.9 |
| Color Temperature | 2800-6500K | Lumen Effective | 90-100LM/W |
| Angel | Aluminum+PC | CRI | >82 or 92 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Materials | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
LED linear lights are commonly used in a variety of settings, including offices, retail stores, educational institutions, hospitals, hospitality venues, residential spaces, industrial environments, and outdoor applications. They provide efficient and uniform illumination, making them suitable for task lighting, accent lighting, and general ambient lighting. LED linear lights are often installed in suspended ceilings, under cabinets, along walls, or as pendant fixtures. They offer energy efficiency, long lifespan, and customizable options in terms of length, color temperature, and dimming capabilities, making them a versatile lighting solution for a wide range of applications.
LED Linear Light for Office Lighting
LED Linear Light for Library Lighting
| Model | Wattage | Lumen Output | Dimensions |
| ILED-LL-60A | 18W | 1800LM (100LM / W) | L600x70x50mm |
| ILED-LL-120A | 36W | 3600LM (100LM / W) | L1200x70x50mm |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 |
| Wattage | 18W/36W | PF | >0.9 |
| Color Temperature | 2800-6500K | Lumen Effective | 90-100LM/W |
| Angel | Aluminum+PC | CRI | >82 or 92 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Materials | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
LED linear lights are commonly used in a variety of settings, including offices, retail stores, educational institutions, hospitals, hospitality venues, residential spaces, industrial environments, and outdoor applications. They provide efficient and uniform illumination, making them suitable for task lighting, accent lighting, and general ambient lighting. LED linear lights are often installed in suspended ceilings, under cabinets, along walls, or as pendant fixtures. They offer energy efficiency, long lifespan, and customizable options in terms of length, color temperature, and dimming capabilities, making them a versatile lighting solution for a wide range of applications.
LED Linear Light for Office Lighting
LED Linear Light for Library Lighting
Feedback from the Clients Who Used
I am extremely satisfied with our purchase of iLed’s LED Linear Lights for office lighting. These lights have transformed our workspace with their nice design and exceptional performance.The lights are very uniform and soft with high colour index,it also has low glare <19, not glue light hazard, and flicker free. Best Light!
Harry Game
Engineer Manager
Clients like our designs, we like iLed produces our design to the real products. In many commercial lighting projects, we will provide different designs of LED linear lights, iLed can finish them well,the shapes have straight,curved,circle,square,rectangle, triangular,zigzag,continous modular,iLed can produce them good.
Kitty Waston
Lighting Designer
We just finished a commercial lighting project for a supermarket.Which used many curved LED linear lights from iLed. They custom every linear light according to our drawings to help come our clients’ idea ture.If you have a professional and patient LED lighting supplier, why don’t you copperate with them!
Richard Austin
Lighting Designer
Our clients like to give different drawings,and let us make different shapes LED linears lights for their commercial and industrial lighting projects. As usual, we directly forwarder these files to iLed, the guys can provide the professional solutions quickly with best price. It helps us win many projects in commercial linear lighting.
David Walton
Electrical Contractor
We serviced for many projects with DALI lights, our clients trust us as we to iLed, they never make us disappointed. Whatever heat sink to electric parts, to the color of LED lighting,they are trying to do it the best. DALI LED Linear Lights make iLed demonstrated their commitment to innovative lighting solutions.
Eddie Nehme
Product Manager
We purchased RGBW round tube LED Linear Lights from iLed,these lights added a whole new dimension to our designs with their vibrant and customizable color options. The RGBW functionality allows us to create dynamic and captivating lighting effects that enhance the ambiance of any space. BESPOKE your idea, call iLed.
Rolita Burt
Design Architect
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
