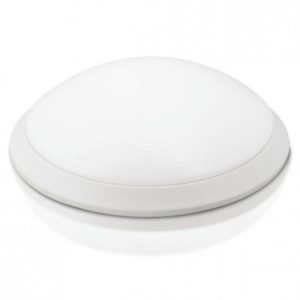

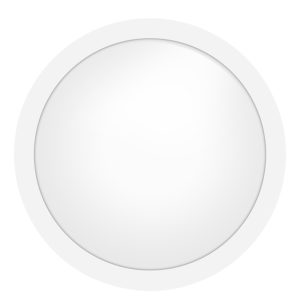

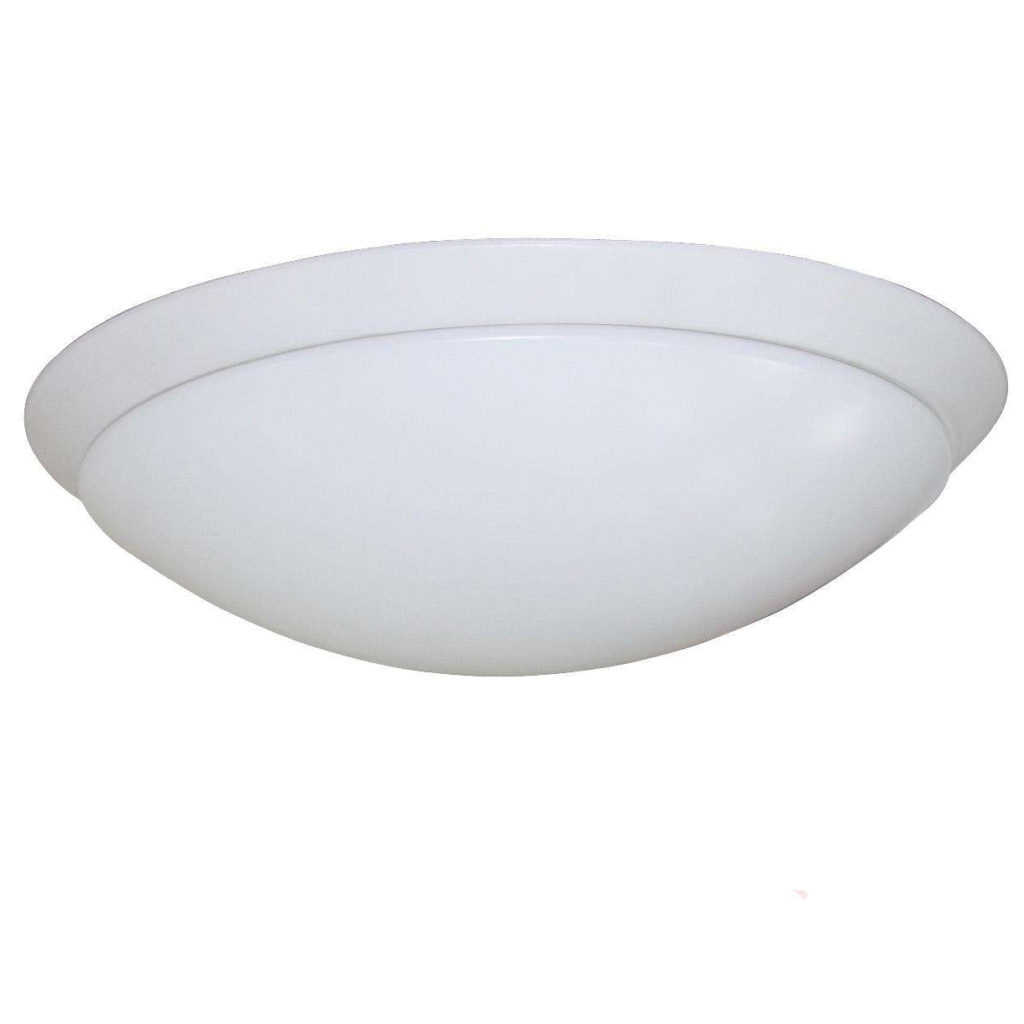

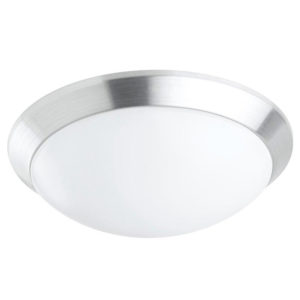

Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Lighting can be perfect to work with iLed Emergency System, adopt LM80 LED source,CRI>80,PF>0.9, high lumen output 90~95LM / W for commercial lighting, and also a good option to replace traditional 2D Lighting Fitting, also approved CE, RoHS, SAA and TUV.
CLICK HERE TO SEND INQUIRY
Description
Order Code
Installation
Application
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Key Data:
Model |
Wattage |
Lumen Output |
Dimensions |
ILED-OL-A18W-EM |
18W |
1600LM (90~95LM / W) |
Ф326x98mm |
ILED-OL-A24W-EM |
24W |
2100LM (90~95LM / W) |
Ф395x113mm |
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Emergency Data:
Model |
Emergency Watts |
Emergency Lumen Output |
Emergency During |
ILED-OL-A18W-EM |
5-6W |
400-450LM |
2.5-3 hours |
ILED-OL-A24W-EM |
7-8W |
500-600LM |
2.5-3 hours |
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Other Parameters
Input |
85-110VAC or 220V~240VAC |
LED Source |
LM80 LEDs |
Materials |
Steel Plate + PMMA |
PF |
>0.9 |
CCT |
2800-7000K |
CRI |
>80 |
Electrical Classification |
Class I |
IP Class |
IP21 |
Beam angle |
120° |
Body Color |
White Painted or Silver |
Warranty |
Lamps 3 years, battery cells 1 years |
Certification |
CE&RoHS&SAA,TUV |
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Package Information:
Model |
Gross Weight / Piece |
Inner Box Size |
Quantities / Carton |
Carton Size |
Gross Weight / Carton |
ILED-OL-A18W-DALI |
1.5KGS |
335x335x110 mm |
10 pieces |
685x565x360mm |
16.8 KGS |
ILED-OL-A24W-DALI |
2.3 KGS |
415x415x120 mm |
5 pieces |
620x430x440mm |
14 KGS |
Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Lighting Application:
Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.
Model |
Wattage |
Lumen Output |
Dimensions |
ILED-OL-A18W-EM |
18W |
1600LM (90~95LM / W) |
Ф326x98mm |
ILED-OL-A24W-EM |
24W |
2100LM (90~95LM / W) |
Ф395x113mm |
Battery Powered Security 20W Emergency LED Bulkhead Light
IP65 Round 10W 15W 18W 20W 275mm 2D Exterior LED Bulkhead Light

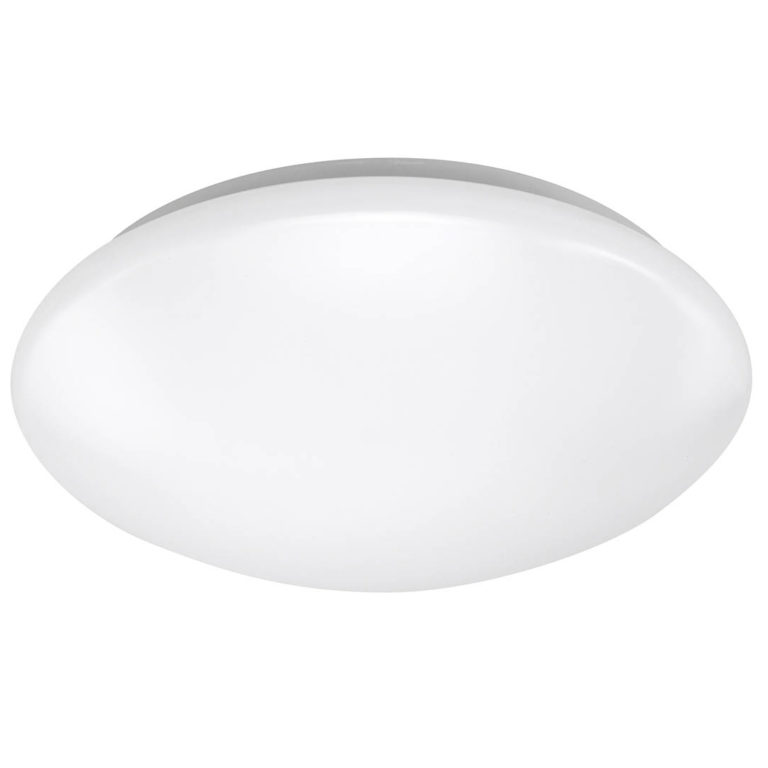

Large 500mm 800mm 1000mm Round LED Oyster Light Ceiling light
