Innovate,Design,Customize & Manufacture Commercial,Industrial and Traffic Lighting

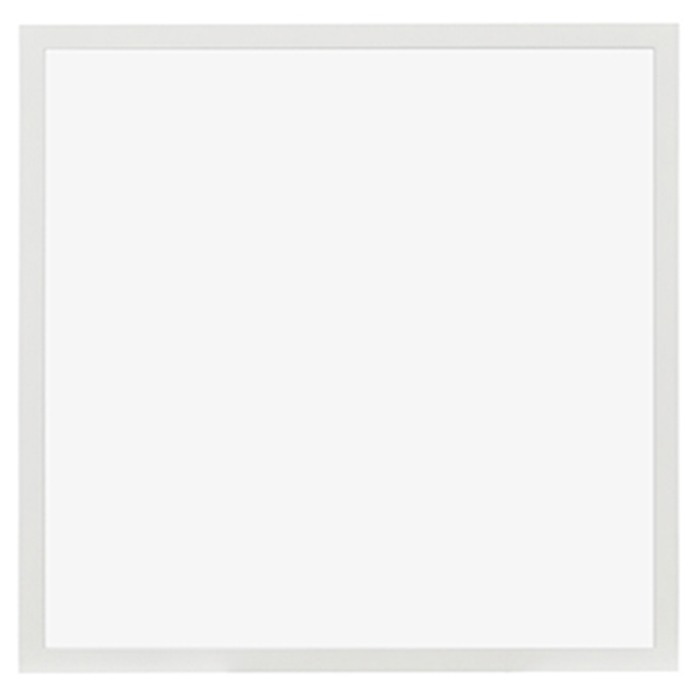

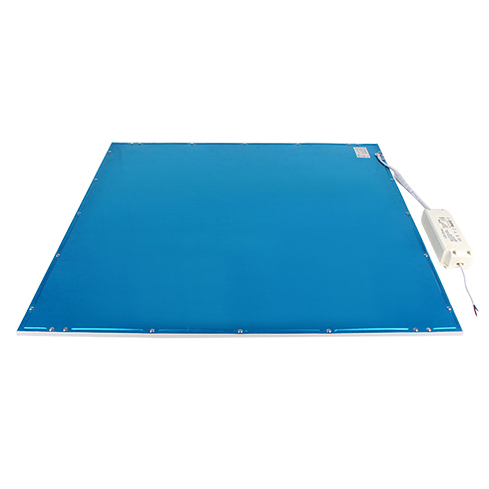

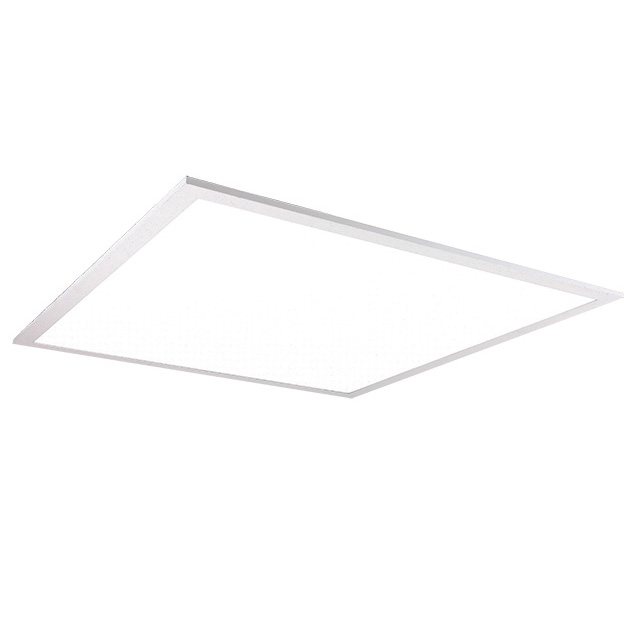

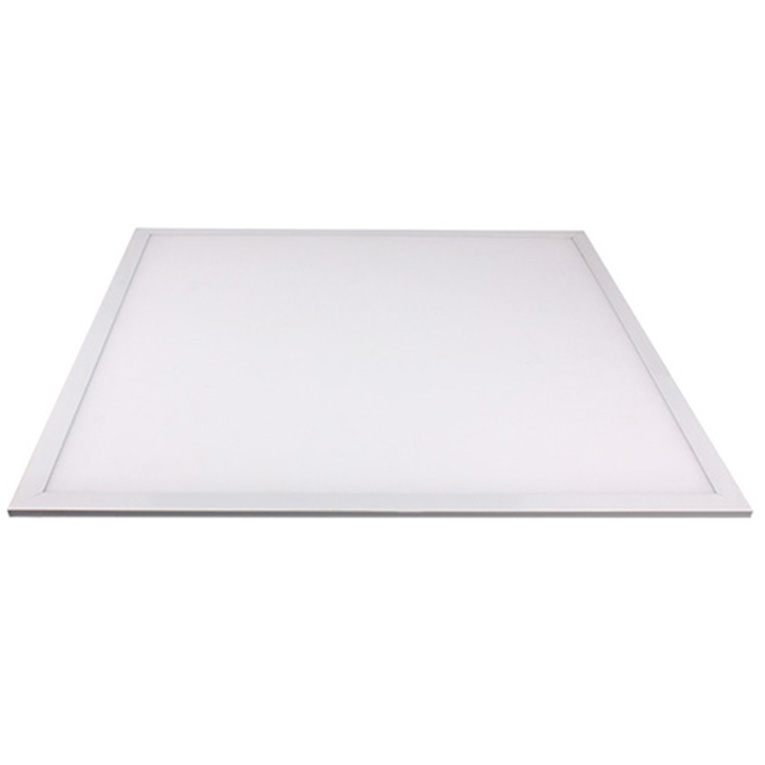

54W LED Flat Panel Light

Model: ILED-PL6060-A 54W Categories , Tags , ,

Our LED panel light ILED-PL6060-A 54W adopt high brightness LM80 LED source and edge-lite with high quality light guide plate. Beautiful natural warm white lighting colour with high colour rendering index. Not emitting UV and IR, no RF interference, longer life than incandescent & fluorescent. No mercury, wide voltage 230/12VAC model available, constant current design. Solid state, high shock & vibration resistant, 95% savings in energy consumption, quiet, no noise, no flickering. Product is in accordance with CE, and RoHS testing standards. Produced under ISO9000 Quality System.

Highlights

→ High 100LM/W Efficiency
→ Premium PMMA Diffuser
→ No Yellowing Durability
→ Flicker-Free Comfort
→ Uniform Soft Glow

iLed Wechat
certification
SKU ILED-PL6060-A 54W Category: , Tags: , ,
Input 220-240VAC/110-277VAC LED Source LM80 LEDs
Wattage 54W Size 595*595*11mm
Materials Aluminum PF >0.9
Lumen Output 5000LM Lumen Effective 90-100LM/W
Color Temperature 2800-6500K CRI >80
UGR 22(<19 for option) IP Rating IP42
Beam Angel 120° Body Color White/Silver
Warranty 3-5 years Certifications  CE ROHS



Send Your Inquiry

The 54W LED Flat Panel Light, model ILED-PL6060-A 54W, stands as a versatile and efficient lighting solution engineered for high-performance illumination in diverse settings, from commercial offices to residential interiors. This slim, edge-lit panel measures a standard 595 x 595 x 11mm, delivering an impressive 5000LM output at 90-100LM/W efficacy, which translates to substantial 95% energy savings over traditional incandescent or fluorescent alternatives. Crafted with a robust aluminum frame available in white or silver finishes, it offers a low-profile design that integrates seamlessly into suspended T-grid ceilings, surface-mounted fixtures, or recessed installations, providing a clean, modern aesthetic without compromising on durability or functionality. The high-quality PMMA light guide plate ensures uniform soft lighting across a wide 120° beam angle, eliminating shadows and hotspots while maintaining a flicker-free experience that promotes visual comfort and reduces eye strain during extended use. Powered by LM80-certified LEDs, the ILED-PL6060-A 54W supports a broad color temperature range from 2800K warm white to 6500K cool daylight, all while achieving a CRI greater than 80 for exceptional color rendering that makes hues appear natural and vibrant—ideal for spaces where accurate perception is key, such as retail displays or creative studios. Its constant current driver operates efficiently with a power factor exceeding 0.9 across input voltages of 220-240VAC or 110-277VAC, including a flexible 230/12VAC model for specialized low-voltage applications, ensuring stable performance without voltage drops or inconsistencies. Free from mercury, UV, IR emissions, and RF interference, this solid-state panel outperforms older technologies in longevity, often lasting beyond 50,000 hours, and demonstrates superior resistance to shocks and vibrations, making it suitable for high-traffic areas. The IP42 rating provides protection against dust ingress and light splashes, enhancing reliability in everyday environments, while the whisper-quiet operation—no noise, no humming—contributes to a serene atmosphere. Adherence to stringent standards underscores the panel’s quality: CE and RoHS certifications confirm safety and environmental compliance, with production under the ISO9000 Quality System guaranteeing consistent excellence from sourcing to assembly. The no-yellowing PMMA diffuser preserves optical clarity and aesthetic appeal over time, resisting discoloration that plagues lesser materials, thus extending the fixture’s visual and functional lifespan. With a UGR of 22 (optional <19 for enhanced glare reduction), it meets rigorous lighting regulations for workplaces, minimizing discomfort in task-oriented zones. Maintenance is remarkably straightforward—no bulbs to replace, just occasional cleaning—backed by a comprehensive 3-5 year warranty that covers manufacturing defects and lumen depreciation. In essence, the ILED-PL6060-A 54W embodies the evolution of flat panel lighting, blending high lumen efficiency with thoughtful engineering to create inviting, well-lit spaces. Its 5000LM brightness covers larger areas effectively, reducing the need for multiple units and optimizing installation costs, while the uniform diffusion fosters a sense of openness and warmth. For facility managers, the energy savings alone can offset initial investments within months, particularly in 24/7 operations like hospitals or warehouses. Environmentally conscious users will appreciate the mercury-free design, which aligns with green building initiatives and lowers carbon footprints without sacrificing performance. Whether retrofitting outdated fluorescents or specifying new projects, this panel delivers reliable, high-quality light that enhances productivity, safety, and ambiance. The adjustable color options allow tailoring to specific moods—cozy evenings in homes or energizing daylight in offices—while the broad beam ensures even coverage up to 30 sqm per unit. Ultimately, the 54W LED Flat Panel Light is more than illumination; it’s a sustainable, user-friendly cornerstone for modern lighting needs, proving that brighter spaces can be achieved with less energy, greater durability, and timeless style.

Superior Energy Savings: At 54W producing 5000LM with 90-100LM/W efficacy, it slashes energy use by 95% compared to fluorescents, helping businesses and homeowners cut utility bills dramatically while delivering ample brightness for large rooms, making it a smart, cost-effective upgrade for long-term financial and environmental benefits.
Exceptional Build Quality: The aluminum frame and IP42-rated PMMA resist shocks, vibrations, and discoloration, backed by LM80 LEDs and a 3-5 year warranty, appealing to users in busy environments who need a low-maintenance fixture that withstands daily rigors without frequent replacements or performance dips.
Health and Visual Comfort: Flicker-free operation with CRI >80 and tunable 2800-6500K temperatures provides natural, glare-reduced light (UGR 22 or <19 option), reducing eye strain and enhancing color accuracy, ideal for health-focused customers in offices or homes prioritizing well-being alongside aesthetic and functional excellence.
Versatile Installation Options: Its slim 11mm profile and standard 595x595mm size fit T-grids or surface mounts effortlessly, with wide voltage support (110-277VAC) for global compatibility, attracting installers and designers seeking a flexible, easy-to-integrate solution that simplifies retrofits without specialized tools or wiring.
Eco-Friendly Compliance: Mercury-free, emission-free design certified to CE/RoHS under ISO9000 ensures regulatory adherence and sustainability, drawing environmentally aware buyers who want to minimize e-waste and support green certifications like LEED, all while enjoying quiet, interference-free operation in sensitive spaces.

Q: What is the lifespan of the LEDs in this panel?
**A: The LM80-certified LEDs are rated for over 50,000 hours of use, with the 3-5 year warranty covering lumen maintenance above 70%, ensuring consistent performance and minimal need for replacements in typical daily applications.
Q: Does this panel work in low-voltage setups?
**A: Yes, the 230/12VAC model variant is available for low-voltage environments, alongside standard 220-240VAC/110-277VAC inputs, providing stable output via constant current design without additional adapters in most installations.
Q: How does the UGR affect office use?
**A: The standard UGR 22 offers comfortable lighting, but the <19 option significantly reduces glare for VDU tasks, complying with standards like EN 12464 to create strain-free workspaces, especially beneficial for prolonged computer-based activities.
Q: Is the light distribution even across the panel?
**A: The edge-lit PMMA guide plate ensures uniform soft lighting over 120°, covering 25-30 sqm without dark spots or hotspots, delivering a seamless, ambient glow that enhances room aesthetics and usability.
Q: Can the color temperature be adjusted after installation?
**A: While factory-set to a chosen 2800-6500K variant, multiple options are available at purchase; once installed, it’s fixed, but the high CRI >80 maintains excellent color fidelity regardless of the selected temperature.
Application Scenarios

Commercial Office Spaces: In open-plan offices or cubicles, the 5000LM output and 120° beam provide shadowless illumination for desks and conference areas, with energy savings reducing overheads in 200+ sqm layouts, while low UGR options minimize glare for screen-heavy tasks throughout the workday.
Retail Stores and Showrooms: High CRI >80 renders product colors vividly under uniform soft light, boosting visual appeal without UV fading; the slim design fits drop ceilings seamlessly, covering 30 sqm zones to enhance customer navigation and sales in bustling storefronts.
Healthcare Facilities like Clinics: Flicker-free warm 2800K lighting creates calming environments for waiting rooms or exam areas, with IP42 durability for easy sanitization; 95% energy efficiency lowers costs in 24/7 operations, ensuring reliable, strain-free visibility for staff and patients alike.
Residential Living Areas: Installed in kitchens or living rooms, the white/silver frames blend with modern decor, offering adjustable cool-to-warm tones for versatile moods; quiet operation and no emissions suit family homes, illuminating 25 sqm spaces efficiently for daily comfort and gatherings.
Educational Classrooms and Libraries: Broad coverage at 6500K daylight supports clear reading and presentations, with shock-resistant build handling student traffic; RoHS compliance aids school budgets, providing sustainable, uniform light over 40 sqm to foster focused learning without distractions or high maintenance.

1200*300 LED Panel Light for Meeting Room Lighting

1200*300 LED Panel Light for Meeting Room Lighting

LED Panel Lights for Office Lighting

LED Panel Lights for Office Lighting

Packaging

Net Weight Quantites /Carton Carton Size Gross Weight/Carton
1.5KGs 5 pcs 65x65x10cm 11.2KGS



Specifications
Input 220-240VAC/110-277VAC LED Source LM80 LEDs
Wattage 54W Size 595*595*11mm
Materials Aluminum PF >0.9
Lumen Output 5000LM Lumen Effective 90-100LM/W
Color Temperature 2800-6500K CRI >80
UGR 22(<19 for option) IP Rating IP42
Beam Angel 120° Body Color White/Silver
Warranty 3-5 years Certifications  CE ROHS



Send Your Inquiry

Description
The 54W LED Flat Panel Light, model ILED-PL6060-A 54W, stands as a versatile and efficient lighting solution engineered for high-performance illumination in diverse settings, from commercial offices to residential interiors. This slim, edge-lit panel measures a standard 595 x 595 x 11mm, delivering an impressive 5000LM output at 90-100LM/W efficacy, which translates to substantial 95% energy savings over traditional incandescent or fluorescent alternatives. Crafted with a robust aluminum frame available in white or silver finishes, it offers a low-profile design that integrates seamlessly into suspended T-grid ceilings, surface-mounted fixtures, or recessed installations, providing a clean, modern aesthetic without compromising on durability or functionality. The high-quality PMMA light guide plate ensures uniform soft lighting across a wide 120° beam angle, eliminating shadows and hotspots while maintaining a flicker-free experience that promotes visual comfort and reduces eye strain during extended use. Powered by LM80-certified LEDs, the ILED-PL6060-A 54W supports a broad color temperature range from 2800K warm white to 6500K cool daylight, all while achieving a CRI greater than 80 for exceptional color rendering that makes hues appear natural and vibrant—ideal for spaces where accurate perception is key, such as retail displays or creative studios. Its constant current driver operates efficiently with a power factor exceeding 0.9 across input voltages of 220-240VAC or 110-277VAC, including a flexible 230/12VAC model for specialized low-voltage applications, ensuring stable performance without voltage drops or inconsistencies. Free from mercury, UV, IR emissions, and RF interference, this solid-state panel outperforms older technologies in longevity, often lasting beyond 50,000 hours, and demonstrates superior resistance to shocks and vibrations, making it suitable for high-traffic areas. The IP42 rating provides protection against dust ingress and light splashes, enhancing reliability in everyday environments, while the whisper-quiet operation—no noise, no humming—contributes to a serene atmosphere. Adherence to stringent standards underscores the panel’s quality: CE and RoHS certifications confirm safety and environmental compliance, with production under the ISO9000 Quality System guaranteeing consistent excellence from sourcing to assembly. The no-yellowing PMMA diffuser preserves optical clarity and aesthetic appeal over time, resisting discoloration that plagues lesser materials, thus extending the fixture’s visual and functional lifespan. With a UGR of 22 (optional <19 for enhanced glare reduction), it meets rigorous lighting regulations for workplaces, minimizing discomfort in task-oriented zones. Maintenance is remarkably straightforward—no bulbs to replace, just occasional cleaning—backed by a comprehensive 3-5 year warranty that covers manufacturing defects and lumen depreciation. In essence, the ILED-PL6060-A 54W embodies the evolution of flat panel lighting, blending high lumen efficiency with thoughtful engineering to create inviting, well-lit spaces. Its 5000LM brightness covers larger areas effectively, reducing the need for multiple units and optimizing installation costs, while the uniform diffusion fosters a sense of openness and warmth. For facility managers, the energy savings alone can offset initial investments within months, particularly in 24/7 operations like hospitals or warehouses. Environmentally conscious users will appreciate the mercury-free design, which aligns with green building initiatives and lowers carbon footprints without sacrificing performance. Whether retrofitting outdated fluorescents or specifying new projects, this panel delivers reliable, high-quality light that enhances productivity, safety, and ambiance. The adjustable color options allow tailoring to specific moods—cozy evenings in homes or energizing daylight in offices—while the broad beam ensures even coverage up to 30 sqm per unit. Ultimately, the 54W LED Flat Panel Light is more than illumination; it’s a sustainable, user-friendly cornerstone for modern lighting needs, proving that brighter spaces can be achieved with less energy, greater durability, and timeless style.
Why choose us?

Superior Energy Savings: At 54W producing 5000LM with 90-100LM/W efficacy, it slashes energy use by 95% compared to fluorescents, helping businesses and homeowners cut utility bills dramatically while delivering ample brightness for large rooms, making it a smart, cost-effective upgrade for long-term financial and environmental benefits.
Exceptional Build Quality: The aluminum frame and IP42-rated PMMA resist shocks, vibrations, and discoloration, backed by LM80 LEDs and a 3-5 year warranty, appealing to users in busy environments who need a low-maintenance fixture that withstands daily rigors without frequent replacements or performance dips.
Health and Visual Comfort: Flicker-free operation with CRI >80 and tunable 2800-6500K temperatures provides natural, glare-reduced light (UGR 22 or <19 option), reducing eye strain and enhancing color accuracy, ideal for health-focused customers in offices or homes prioritizing well-being alongside aesthetic and functional excellence.
Versatile Installation Options: Its slim 11mm profile and standard 595x595mm size fit T-grids or surface mounts effortlessly, with wide voltage support (110-277VAC) for global compatibility, attracting installers and designers seeking a flexible, easy-to-integrate solution that simplifies retrofits without specialized tools or wiring.
Eco-Friendly Compliance: Mercury-free, emission-free design certified to CE/RoHS under ISO9000 ensures regulatory adherence and sustainability, drawing environmentally aware buyers who want to minimize e-waste and support green certifications like LEED, all while enjoying quiet, interference-free operation in sensitive spaces.

Frequently Asked Questions

Q: What is the lifespan of the LEDs in this panel?
**A: The LM80-certified LEDs are rated for over 50,000 hours of use, with the 3-5 year warranty covering lumen maintenance above 70%, ensuring consistent performance and minimal need for replacements in typical daily applications.
Q: Does this panel work in low-voltage setups?
**A: Yes, the 230/12VAC model variant is available for low-voltage environments, alongside standard 220-240VAC/110-277VAC inputs, providing stable output via constant current design without additional adapters in most installations.
Q: How does the UGR affect office use?
**A: The standard UGR 22 offers comfortable lighting, but the <19 option significantly reduces glare for VDU tasks, complying with standards like EN 12464 to create strain-free workspaces, especially beneficial for prolonged computer-based activities.
Q: Is the light distribution even across the panel?
**A: The edge-lit PMMA guide plate ensures uniform soft lighting over 120°, covering 25-30 sqm without dark spots or hotspots, delivering a seamless, ambient glow that enhances room aesthetics and usability.
Q: Can the color temperature be adjusted after installation?
**A: While factory-set to a chosen 2800-6500K variant, multiple options are available at purchase; once installed, it’s fixed, but the high CRI >80 maintains excellent color fidelity regardless of the selected temperature.
Application Scenarios

Applications

Commercial Office Spaces: In open-plan offices or cubicles, the 5000LM output and 120° beam provide shadowless illumination for desks and conference areas, with energy savings reducing overheads in 200+ sqm layouts, while low UGR options minimize glare for screen-heavy tasks throughout the workday.
Retail Stores and Showrooms: High CRI >80 renders product colors vividly under uniform soft light, boosting visual appeal without UV fading; the slim design fits drop ceilings seamlessly, covering 30 sqm zones to enhance customer navigation and sales in bustling storefronts.
Healthcare Facilities like Clinics: Flicker-free warm 2800K lighting creates calming environments for waiting rooms or exam areas, with IP42 durability for easy sanitization; 95% energy efficiency lowers costs in 24/7 operations, ensuring reliable, strain-free visibility for staff and patients alike.
Residential Living Areas: Installed in kitchens or living rooms, the white/silver frames blend with modern decor, offering adjustable cool-to-warm tones for versatile moods; quiet operation and no emissions suit family homes, illuminating 25 sqm spaces efficiently for daily comfort and gatherings.
Educational Classrooms and Libraries: Broad coverage at 6500K daylight supports clear reading and presentations, with shock-resistant build handling student traffic; RoHS compliance aids school budgets, providing sustainable, uniform light over 40 sqm to foster focused learning without distractions or high maintenance.

1200*300 LED Panel Light for Meeting Room Lighting

1200*300 LED Panel Light for Meeting Room Lighting

LED Panel Lights for Office Lighting

LED Panel Lights for Office Lighting

More You're Caring

Packaging

Net Weight Quantites /Carton Carton Size Gross Weight/Carton
1.5KGs 5 pcs 65x65x10cm 11.2KGS



Feedback from the Clients Who Used

Can’t find a suitable product?

All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.

Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
