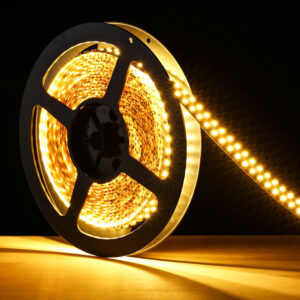

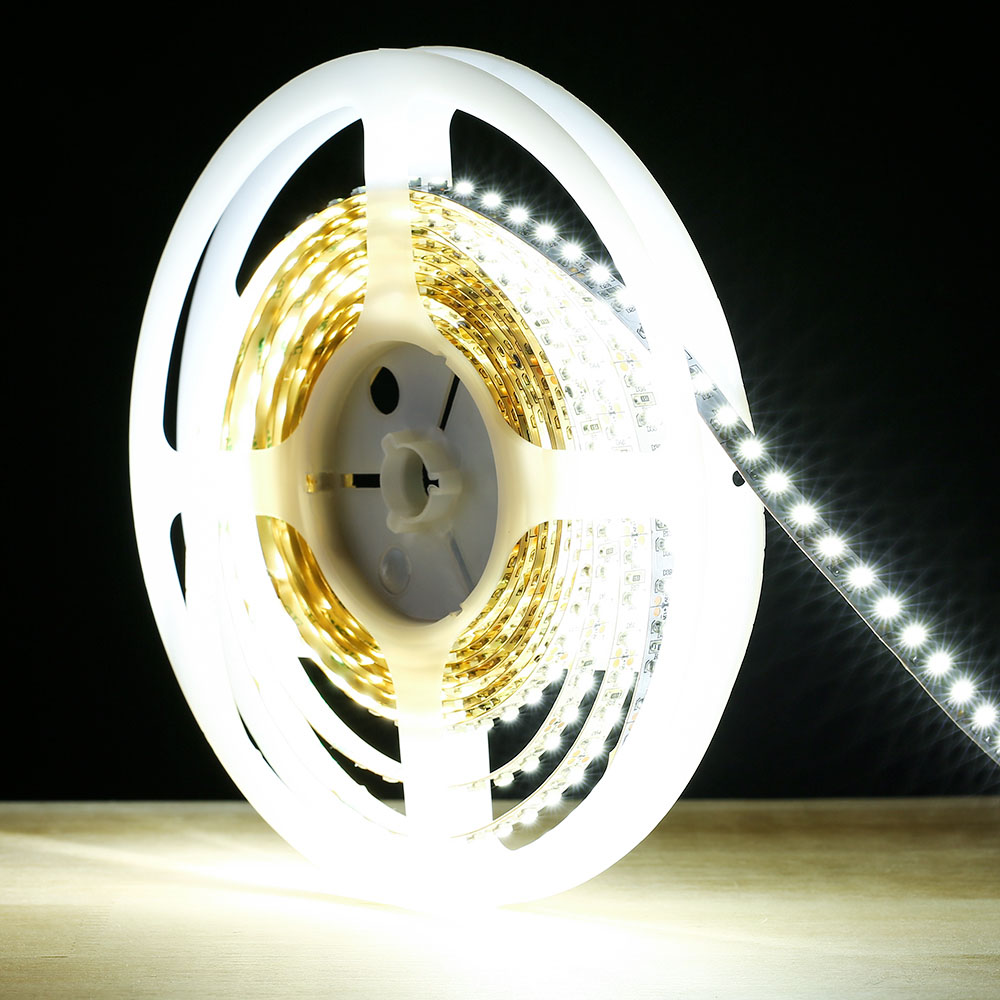

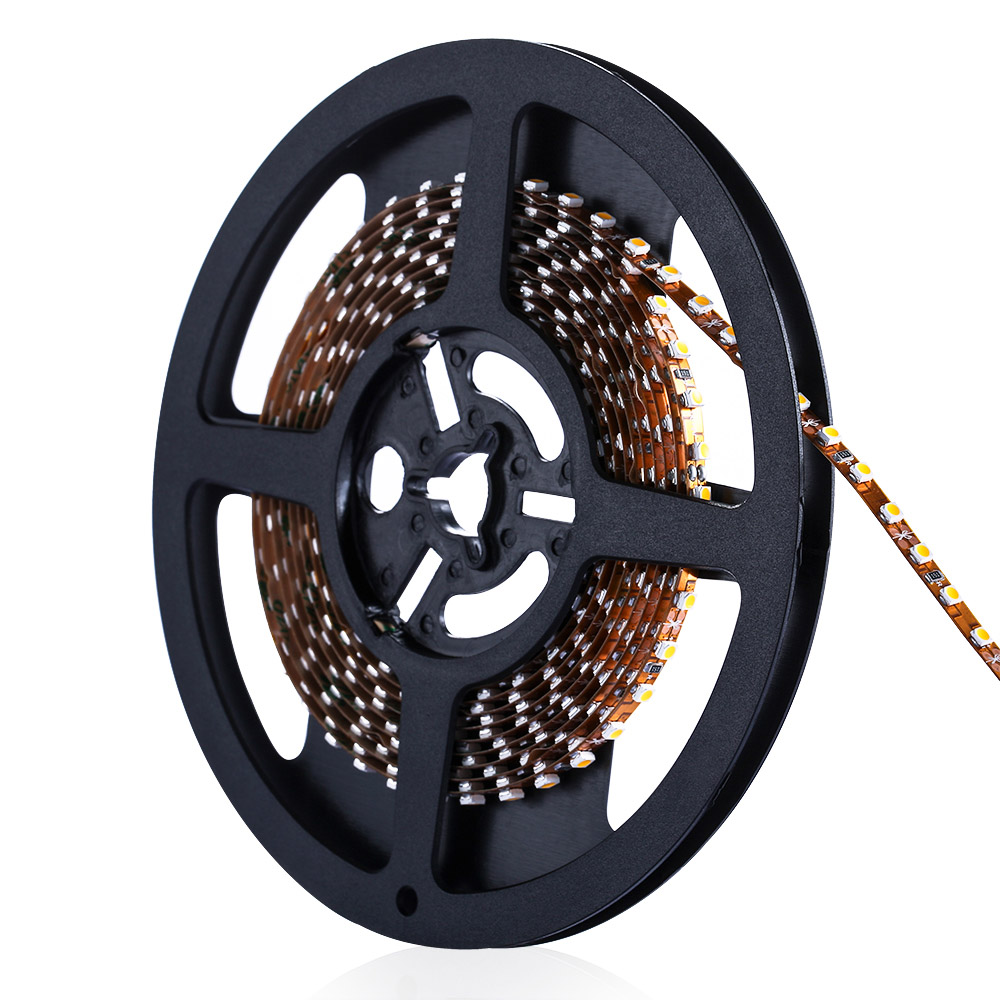

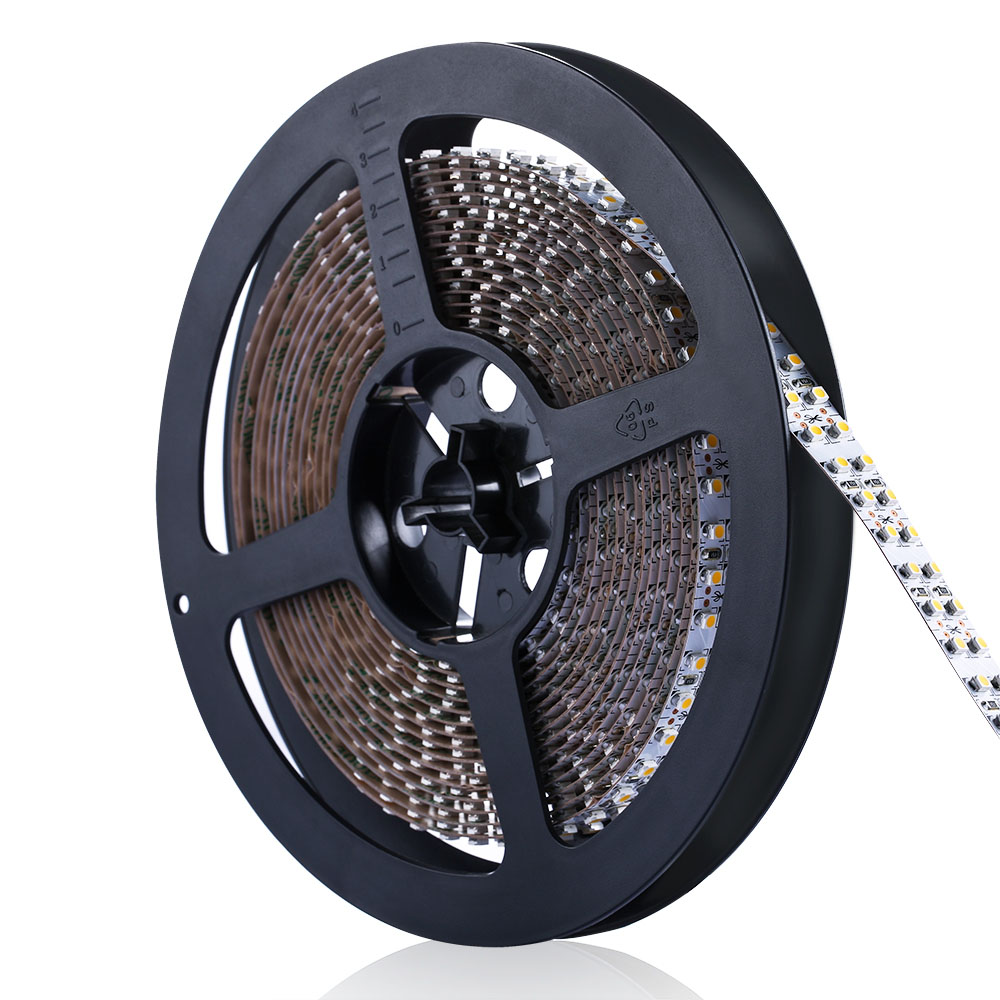

DC 12V 24V SMD 3528 Flexible LED Strip Light

Model: ILED-FX-3528 Categories , Tag

Highlights

→ High Brightness SMD 3528 LEDs

→ Flexible,Bendable,Cuttable

→ 12VDC or 24VDC Safety

→ Soft Lighting

iLed Wechat
certification
SKU ILED-FX-3528 Category: , Tags:
Item NO. Input LEDs Watts/Meter LM/Meter Width
ILED-FX-3528 30 DC12V 30 SMD3528 2.4WM 180LM/M 8mm
ILED-FX-3528 60 DC12V 60 SMD3528 4.8WM 360LM/M 8mm
ILED-FX-3528 120 DC12V/24V 120 SMD3528 9.6WM 800LM/M 8mm
ILED-FX-3528 240 DC12V/24V 240 SMD3528 19.2WM 1500LM/M 10mm
ILED-FX-3528 240D DC12V/24V 240 SMD3528 19.2WM 1500LM/M 15mm



Item NO. -(R/Y/B/G/WW/CW/W)
Light Colour Red/Green/Blue/Yellow/Warm W/Commercial W/Cool White
Dimmable Yes Light Source 120 LEDs SMD 3528
Input Voltage 12VDC or 24V DC CRI >80(>90 for option)
Brightness \ Beam Angle 120°
Power Consumption \ Working Temperature -20 – 50°C
IP Rating IP20 IP65 IP67 or IP68 Type Static
Average Lifetime 50,000 hours Cut Length 25mm
Width W=8-15mm
Length Standard 5 meters as a roll. Any length can be Customized
Cable 15cm cable for input.(Any connector cables can be customized
Stick Standard is 3M Yellow Stick(3M Red Stick can be option)

Send Your Inquiry

SMD LED strip lights are versatile lighting solutions. They are commonly used for decorative purposes, such as backlighting TVs, mirrors, or furniture. SMD LED strips are also popular for creating vibrant lighting effects in bars, clubs, and entertainment venues. They are often used in architectural lighting, illuminating buildings, bridges, or landmarks. SMD LED strips are suitable for outdoor applications like landscape lighting or accentuating outdoor structures. Additionally, they find use in automotive lighting, signage, and DIY projects due to their flexibility and easy installation. Their compact size and efficiency make them a popular choice for various lighting needs.

5050 SMD LED Strip Light

5050 SMD LED Strip Light Application



Specifications
Item NO. Input LEDs Watts/Meter LM/Meter Width
ILED-FX-3528 30 DC12V 30 SMD3528 2.4WM 180LM/M 8mm
ILED-FX-3528 60 DC12V 60 SMD3528 4.8WM 360LM/M 8mm
ILED-FX-3528 120 DC12V/24V 120 SMD3528 9.6WM 800LM/M 8mm
ILED-FX-3528 240 DC12V/24V 240 SMD3528 19.2WM 1500LM/M 10mm
ILED-FX-3528 240D DC12V/24V 240 SMD3528 19.2WM 1500LM/M 15mm



Item NO. -(R/Y/B/G/WW/CW/W)
Light Colour Red/Green/Blue/Yellow/Warm W/Commercial W/Cool White
Dimmable Yes Light Source 120 LEDs SMD 3528
Input Voltage 12VDC or 24V DC CRI >80(>90 for option)
Brightness \ Beam Angle 120°
Power Consumption \ Working Temperature -20 – 50°C
IP Rating IP20 IP65 IP67 or IP68 Type Static
Average Lifetime 50,000 hours Cut Length 25mm
Width W=8-15mm
Length Standard 5 meters as a roll. Any length can be Customized
Cable 15cm cable for input.(Any connector cables can be customized
Stick Standard is 3M Yellow Stick(3M Red Stick can be option)

Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

SMD LED strip lights are versatile lighting solutions. They are commonly used for decorative purposes, such as backlighting TVs, mirrors, or furniture. SMD LED strips are also popular for creating vibrant lighting effects in bars, clubs, and entertainment venues. They are often used in architectural lighting, illuminating buildings, bridges, or landmarks. SMD LED strips are suitable for outdoor applications like landscape lighting or accentuating outdoor structures. Additionally, they find use in automotive lighting, signage, and DIY projects due to their flexibility and easy installation. Their compact size and efficiency make them a popular choice for various lighting needs.
