Home >> Product >> LED Bulkhead Light >> IP65 LED Ceiling Light Surface Mounted 300mm 350mm 400mm 15W to 30W

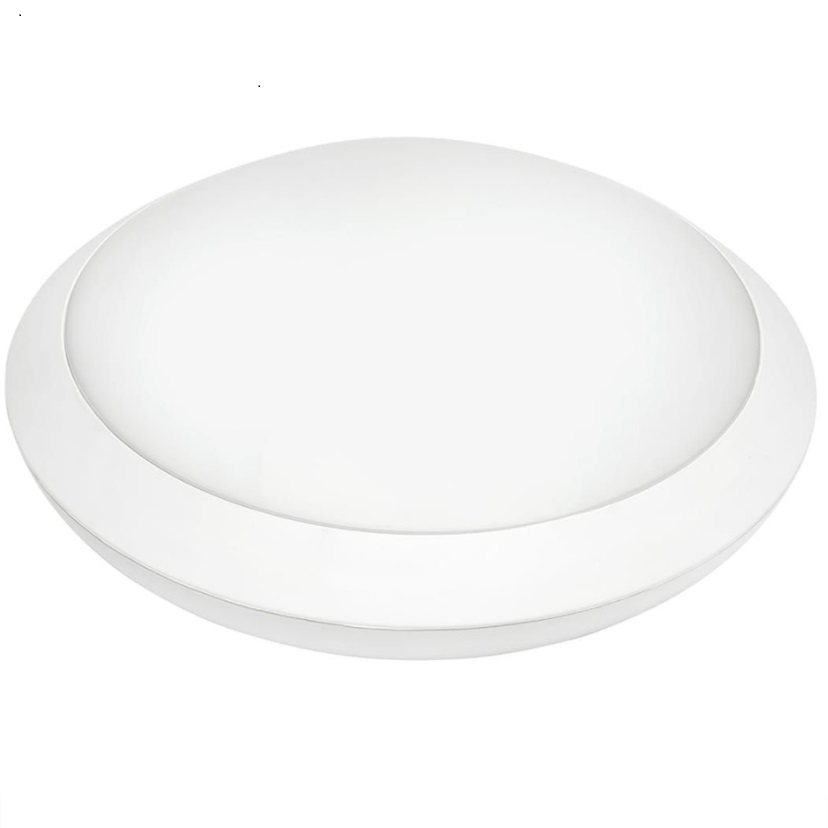

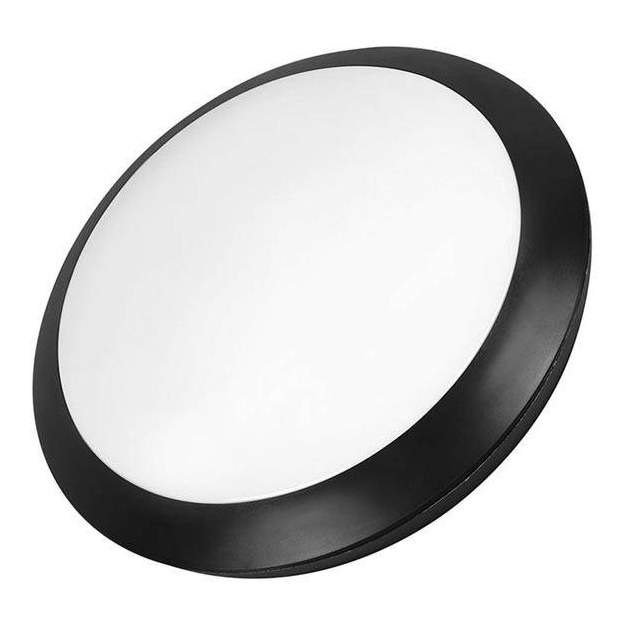

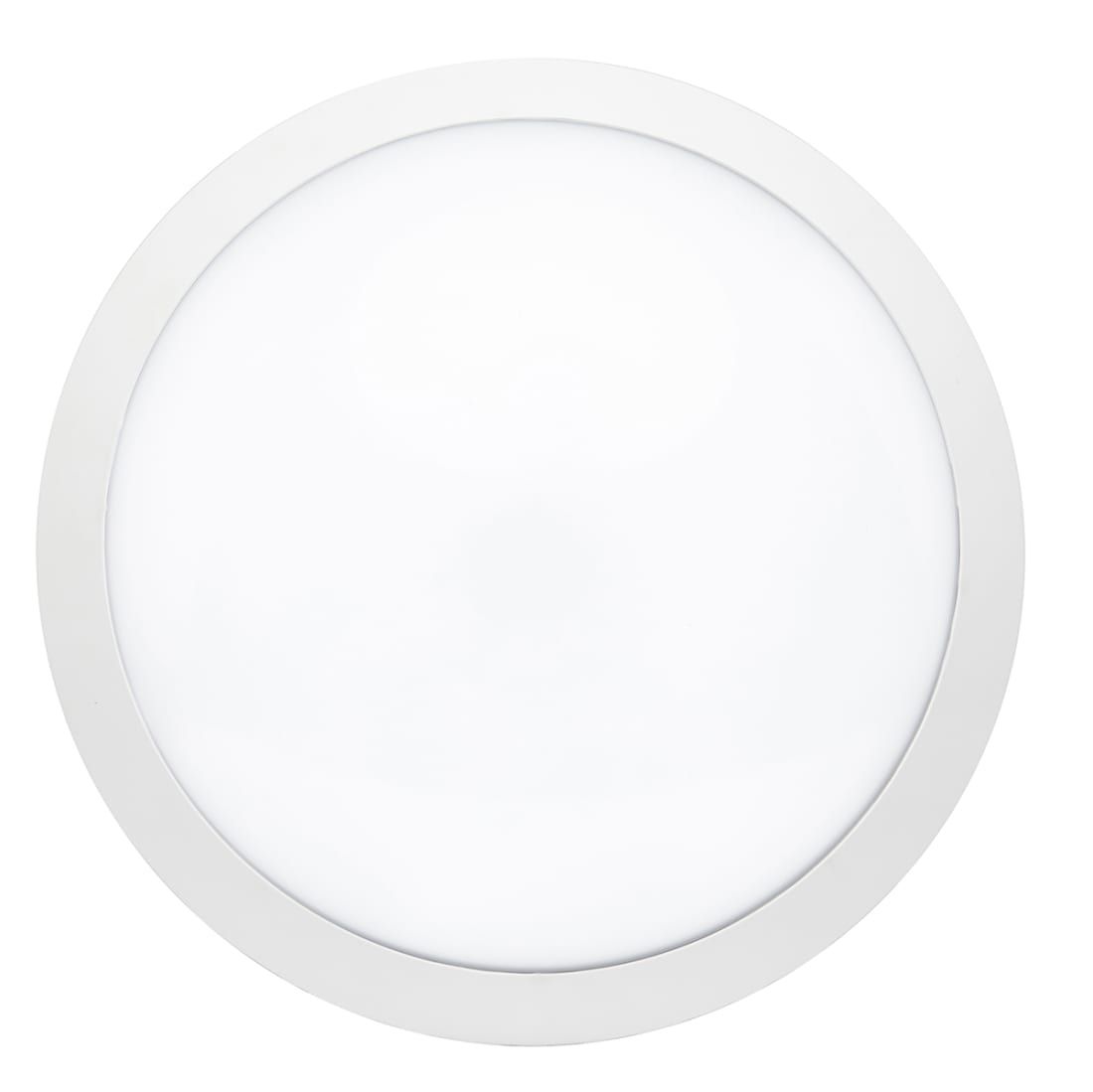

BH-R330 is a series of oyster design fixture with built-in high brightness LEDs and stable LED Driver. It has 3 sizes φ300mm,φ350mm and φ400mm for option. The fixtures uses strong white or black polycarbonate as lamp body, high transimitte lighting diffuser and strictly sealed waterproof IP65 , these are not only make the surface mounted light can waterproof for a harsh environment, but also can afford IK08 grade striking. This surface mounted LED Ceiling Luminaire can incorporates an emerge,motion sensor, dimmable or DALI. Ideal for wet rooms, commercial and interior applications, coastal environment, apartments, shopping centres, hospitality, prisons and hospitals.
CLICK HERE TO SEND INQUIRY
Description
Parameters
Model | Wattage | Lumen Output | Dimensions |
BH-R330 300 | 15W | 1500LM | φ300x100mm |
BH-R330 350 | 20W | 2000LM | φ355x118mm |
BH-R330 400 | 25W | 2500LM | φ400x135mm |
Input | 220-240VAC | LED Source | LM80 |
Lumen Output | 100LM/W | Size | φ300x90mm |
Materials | PC Body+PC Diffuser | PF | >0.9 |
CCT | 2800-6500K | CRI | >80 |
Electrical Classification | Class II | IP Class | IP65 |
Beam Angel | 120° | Body Color | White/Blackr |
Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
ON/Off Micro-Wave Sensor Detecor Parameters
Input | 220V~240VAC 50/60Hz | Mount Height | 6 meters |
Detection sensitivity | 10% / 50% / 75% / 100% | Hold Time | 5s / 90s / 3min / 10min |
Corridor Function | / | Daylight Sensor | 5lux / 15lux / 50lux / Disable |
Stand-by dimming level | / | Motion Detection | 0.5-3m / s |
Detection Angle | 150°(Wall Installation), 360°(Ceiling Installation) | Warranty | 3-5years |
Certification | CE&RoHS&SAA,TUV |
Emergency Parameters
Emergency Watts | 2.5W |
Emergency Duration | 3 hours |
Charging Time | 24 Hours |
Emergency Lumen | 300LM |
Where to use:
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
