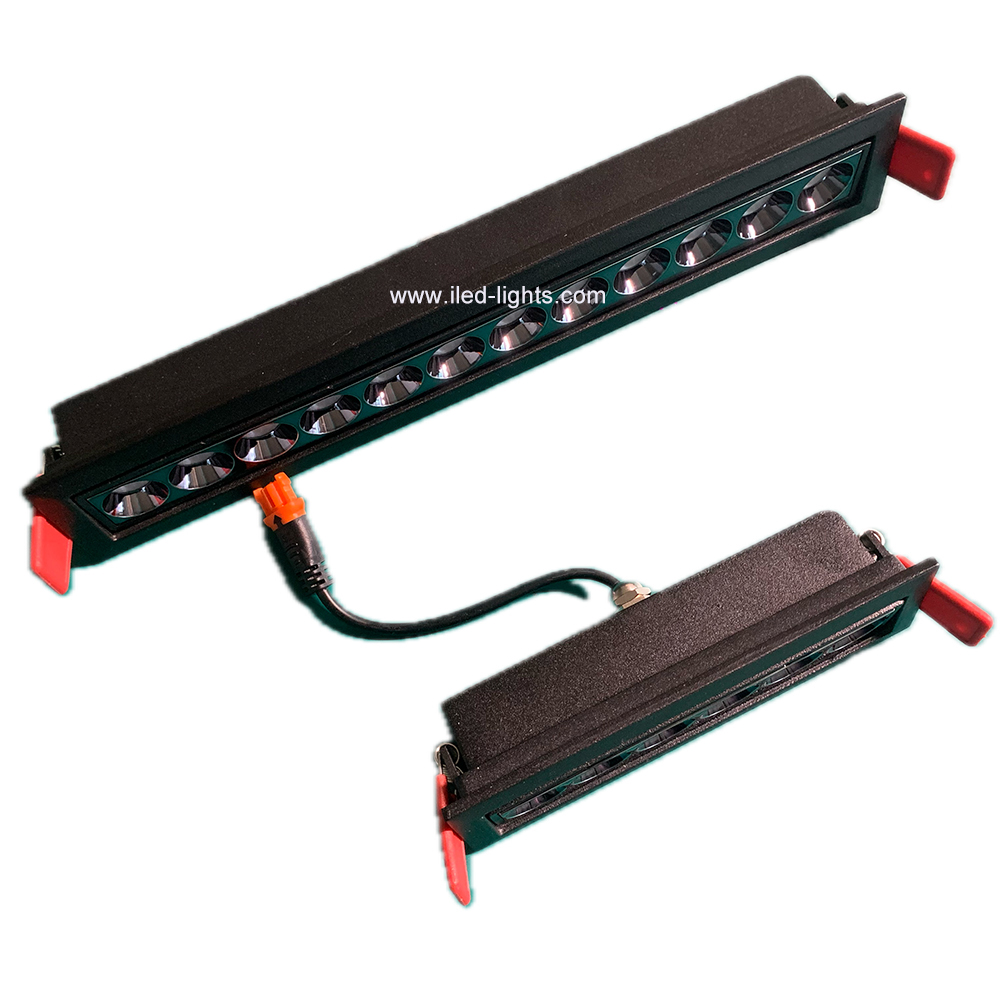

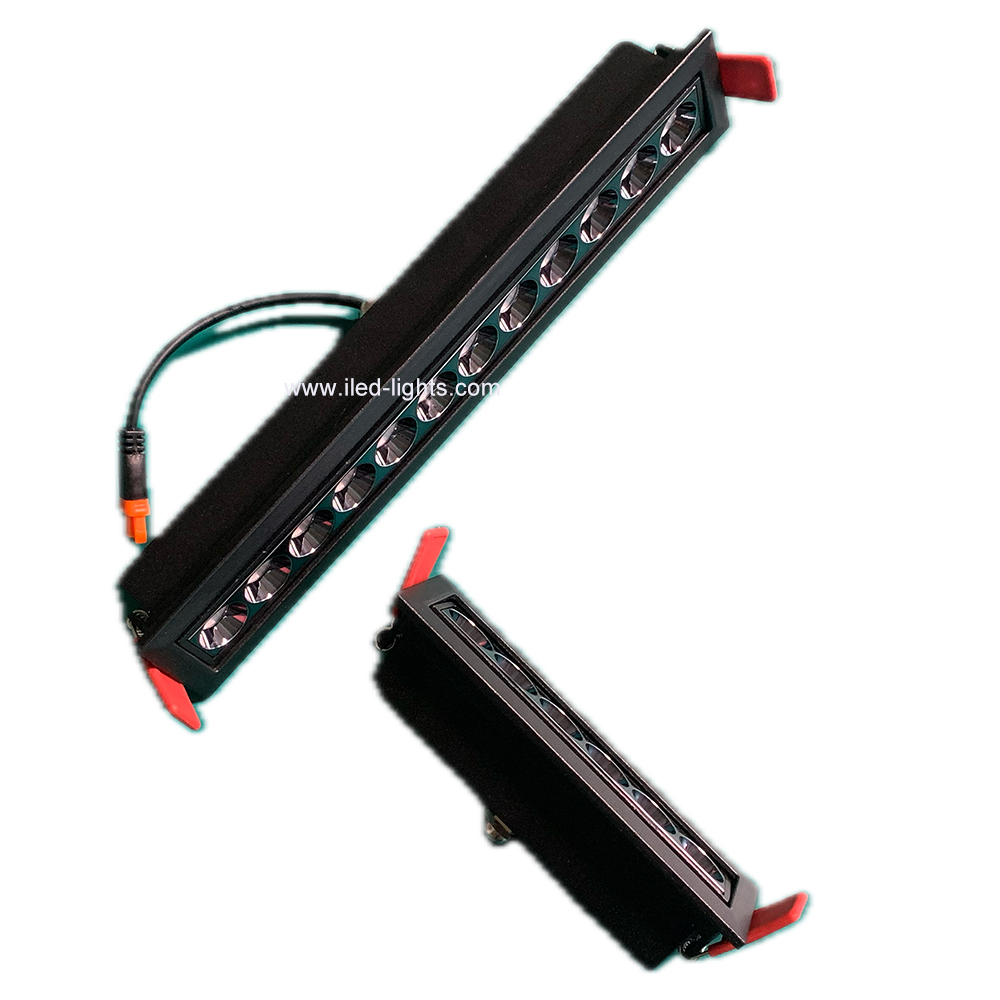

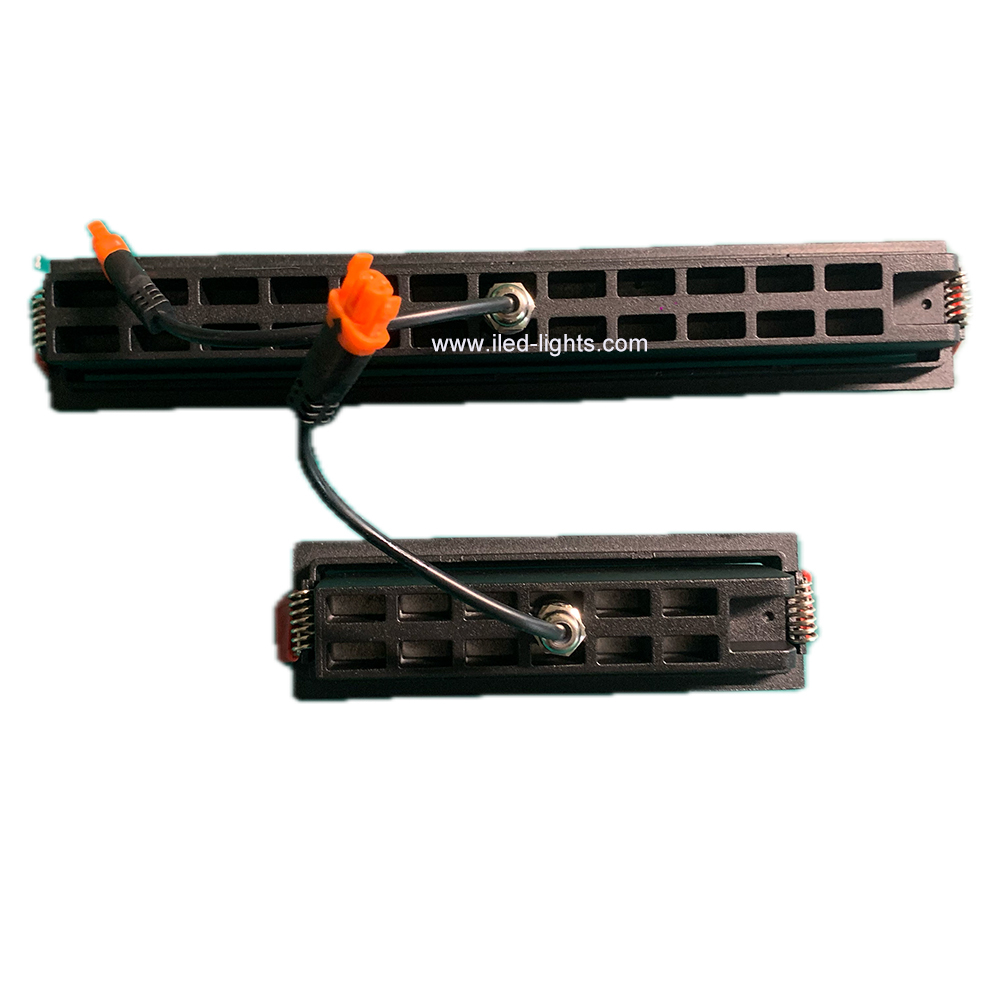

This LED Linear Downlight can be recessed and tiltable, we can adjustable the direction of the lighting, it is easy lighting for different area spotlighting. They have both color white and black for option. Meanwhile, it has CRI 92 color index, Flicker free, Low Glare UGR<12 with high quality reflectors. The light is very soft with nice spots. Two size for 10W and 18W.
CLICK HERE TO SEND INQUIRY
Description
Main Parameters
Model | Watts | Lumen | Size | Cutout | Function |
ILED-CL1-A F | 6-10W | 800LM | 145*45*35mm | 135*32mm | Normal |
ILED-CL1-A F DIM | 6-10W | 800LM | 145*45*35mm | 135*32mm | Triac Dimmable |
ILED-CL1-A F DM10 | 6-10W
| 800LM | 145*45*35mm | 135*32mm | 0-10V Dimmable |
ILED-CL1-A F DALI | 6-10W
| 800LM | 145*45*35mm | 135*32mm | DALI Dimmable |
ILED-CL1-A F EM | 6-10W
| 800LM | 145*45*35mm | 135*32mm | Emergency |
ILED-CL1-A G | 12-18W | 1440LM | 265*45*35mm | 255*32mm | Normal |
ILED-CL1-A G DIM | 12-18W
| 1440LM | 265*45*35mm | 255*32mm | Triac Dimmable |
ILED-CL1-A G DM10 | 12-18W
| 1440LM | 265*45*35mm | 255*32mm | 0-10V Dimmable |
ILED-CL1-A G DALI | 12-18W
| 1440LM | 265*45*35mm | 255*32mm | DALI Dimmable |
ILED-CL1-A G EM | 12-18W
| 1440LM | 265*45*35mm | 255*32mm | Emergency |
Other Parameters
Input | 100-277VAC or 220-240VAC | LED Source | LM80 3030 |
Materials | Aluminum + PC | PF | >0.9 |
CCT | 2700K,3000K,4000K,5000K,6000K | CRI | 92 |
Electrical Classification | Class II | IP Class | IP44 |
Body Color | White or Black | Certification | TUV,CE,RoHS,SAA |
