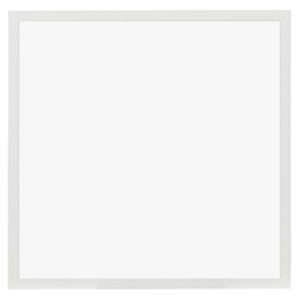

LED Panel Light 40W 595 x 595 Slim Dimmable DALI Emergency 100LM/W

Tech specs at a glance

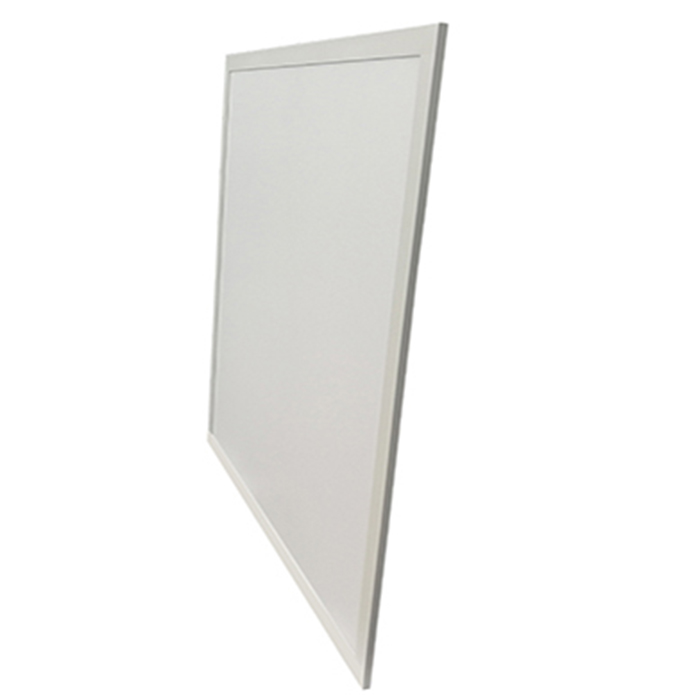

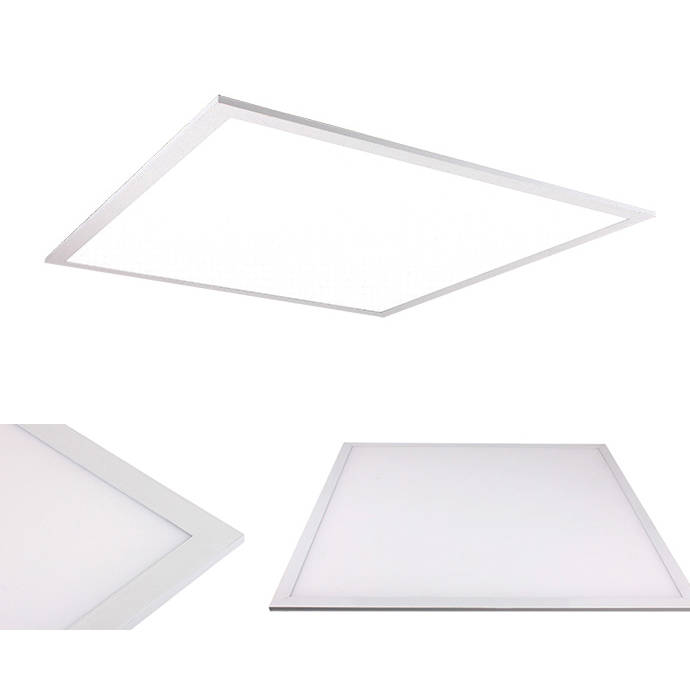

The ILED-PL6060-A is a slim 40W LED panel light in the standard 595 × 595mm ceiling tile format. It produces 4000 lumens at 100–110 lumens per watt from an edge-lit LM80 LED source, drawing power from 220–240VAC or 110–277VAC with a power factor above 0.9. The housing is 11mm thick with an aluminum body finished in white or silver, and the diffuser is a non-yellowing PMMA plate that spreads light across a 120° beam angle. UGR is 22 as standard, with an optional UGR below 19 glare-control version available. The CCT switch lets you choose between 2800K warm white and 6500K cool white at installation — all variants maintain CRI above 80.

Optical system and light distribution

The edge-lit design uses a PMMA light guide plate to spread light uniformly across the full panel surface. Light from the perimeter LEDs travels through the guide plate and exits through micro-structures printed on the plate surface, creating even brightness with no visible hot spots or dark zones. The 120° beam angle covers a broad area without needing multiple overlapping fixtures. A prismatic or frosted diffuser option is available if further softening of the light output is desired.

Light quality and colour

The flicker-free driver protects against eye strain during extended use in offices or classrooms. The 3CCT switch inside the driver lets you set the colour temperature once at installation — warm white for hospitality and residential spaces, neutral white for offices, or cool white for task-oriented environments. All three settings maintain CRI above 80 so colours in the space render naturally without appearing washed out or overly saturated.

DALI dimming and emergency backup

Two functions are integrated into a single driver: DALI-2 dimming and emergency battery backup. The DALI two-wire interface connects directly to any DALI bus — no separate dimmer module or protocol gateway required. Set scenes, schedule on/off times, and group-control panels from a central building management system. The emergency battery activates automatically when mains power fails, maintaining illumination at reduced output for approximately 90 minutes. This satisfies emergency egress requirements without additional wiring, external ballast, or a separate emergency lamp. The dual-function driver keeps the ceiling void clean — only mains and DALI pair wiring needed, no extra components.

Build and installation

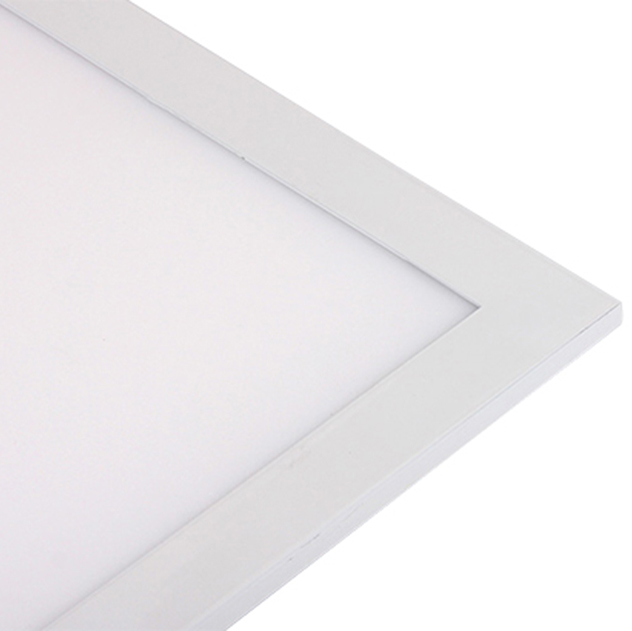

The 11mm slim profile fits standard 600 × 600mm T-bar suspended ceiling grids with no modification to the framework. Spring clips on each corner secure the panel from above — install from the ceiling void and clip into place. The aluminum housing resists warping and the PMMA diffuser does not yellow over time. IP42 rating covers indoor environments with moderate dust or occasional splashes, such as offices, corridors, and retail floors. The panel is not rated for wet or outdoor locations. A cut-out of approximately 565 × 565mm is needed for recessed mounting.

Certifications and warranty

The ILED-PL6060-A carries CE and ROHS certifications for electrical safety and restricted substances. The LM80-rated LED source is backed by a 3-to-5-year warranty depending on region and driver configuration. Emergency battery replacement intervals vary by usage cycle — plan for servicing every several years in high-cycling installations.

Where it gets used

Offices, retail stores, hotel corridors, healthcare waiting areas, and classrooms — anywhere a standard ceiling tile format is needed alongside emergency lighting compliance and DALI dimming control.

Here is what we hear from customers:

Standard ceiling tile size. The 595 × 595mm format drops into a suspended T-bar grid without modifying the existing framework. No cutting, no extra framing, no special adapters.

11mm slim profile. At 11mm thick this is one of the slimmest panels in its class. It works where ceiling void depth is limited and a bulkier housing would not fit.

DALI dimming and emergency in one driver. Both functions are integrated into a single unit. No external emergency ballast or separate wiring — connect the mains and the DALI pair, and the panel handles power failure automatically.

Non-yellowing PMMA diffuser. Cheaper panels shift warm over time as the plastic degrades under heat. The PMMA plate in this panel is rated to resist yellowing, so the light output stays consistent year after year.

Flicker-free for eye comfort. The constant-current driver eliminates visible flicker, which matters in offices and classrooms where people spend hours under the lights.

The ILED-PL6060-A is a standard ceiling tile panel with emergency backup, so it fits wherever clean even illumination and safety compliance are both required.

Offices. Open-plan floors and private offices benefit from the uniform 120° beam and low-glare option. DALI scene control lets you dim to daylight levels in the afternoon, saving energy without switching panels off.

Retail stores. CRI above 80 keeps product colours accurate on shelves and displays. The slim profile keeps the ceiling unobtrusive so attention stays on the merchandise.

Hotels and hospitality. Emergency backup in corridors and stairwells meets fire safety codes, while the 3CCT switch lets you tune warmth for guest rooms versus service areas.

Healthcare waiting areas. Flicker-free operation and uniform light reduce eye strain for patients and visitors. The emergency battery ensures safe evacuation paths during any power interruption.

Schools and classrooms. The UGR below 19 option keeps glare low for students and teachers. DALI scheduling aligns lights with class timetables — on before the bell, off when rooms are empty.

A few practical points to check before ordering the ILED-PL6060-A:

Confirm emergency runtime with the supplier. The panel includes a built-in battery, but the exact backup duration depends on battery capacity and load. Ask for the certified runtime at reduced output before specifying for egress compliance — it varies by region and model revision.

Set the DALI address before mounting. Programming the address is much easier at a workbench than on a ladder. Connect the DALI pair, assign the address with a tool or BMS, then clip the panel into the ceiling.

Choose the CCT before installation. The 3CCT switch is inside the driver — you set it once and it stays. If you need different colour temperatures in different zones, order each variant separately rather than trying to adjust after mounting.

Check the cut-out size. The recessed opening should be approximately 565 × 565mm for a clean fit in a standard 600 × 600mm ceiling tile grid.
