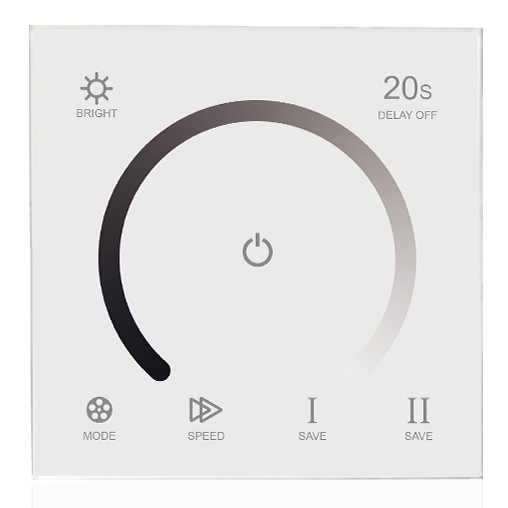

Touch Dimmer Wall Mounted 84 Panel for LED Strip Lights ILED-DM3 H

Model: ILED-DM3 H Categories ,

ILED-DM3 H is a dimmable wall mounted controller for LED strip lights. The input is DC 12-24V and has 3 Channels for loading LED lights. Very good for making dimmable led strip lights and  COB led strip light. Professional packaging is good for wholesales and retail.

Highlights

→ Dimmable

→ Stable and Flicker Free

→ Easy Connection

iLed Wechat
certification
Model NO.:  ILED-DM3 H Zones \
Function Dimmable Input Voltage 12V-24VDC
Input Terminal DC2.1 and Screw terminal Output 4A*3CH
Max Power Load 12V=144W, 24V=288W Dimming 0-100%
Remoter Frequency Push Dim Operate Temp. -30°C – +55°C
Receiver Dimension L86*W84*H60mm Receiver Weight 100g
Remoter Dimension \ Remoter Weight \
Packaging Colorful Box or Skin Packing, any OEM can be supported.

Send Your Inquiry

Ideal for controlling LED strip lights in various settings. Its sleek design allows for easy installation on walls. It can be used in bedrooms, living rooms, or entertainment areas to create ambient lighting and adjust brightness levels with a simple touch. The dimmer panel is also suitable for commercial spaces such as restaurants, bars, or retail stores, where customizable lighting can enhance the atmosphere. With its user-friendly interface and compact size, the touch dimmer is a versatile solution for achieving desired lighting effects in any environment.

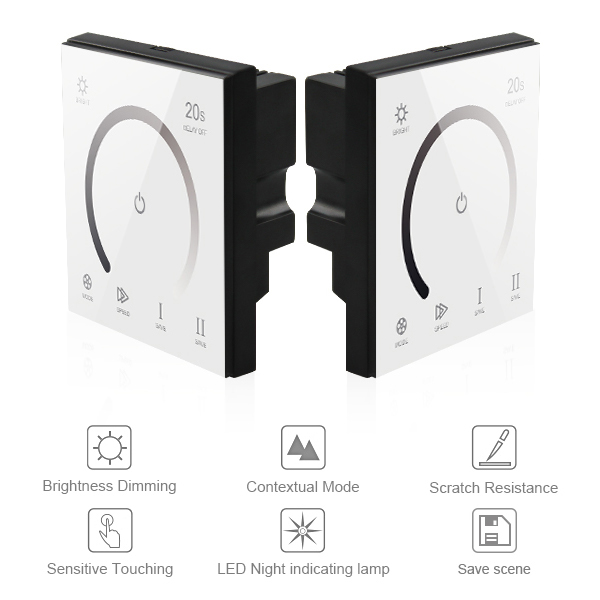

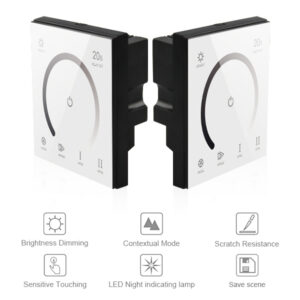

Touch Dimmer Wall Mounted

Touch Dimmer Wall Mounted for LED Strip Light



Specifications
Model NO.:  ILED-DM3 H Zones \
Function Dimmable Input Voltage 12V-24VDC
Input Terminal DC2.1 and Screw terminal Output 4A*3CH
Max Power Load 12V=144W, 24V=288W Dimming 0-100%
Remoter Frequency Push Dim Operate Temp. -30°C – +55°C
Receiver Dimension L86*W84*H60mm Receiver Weight 100g
Remoter Dimension \ Remoter Weight \
Packaging Colorful Box or Skin Packing, any OEM can be supported.

Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

Ideal for controlling LED strip lights in various settings. Its sleek design allows for easy installation on walls. It can be used in bedrooms, living rooms, or entertainment areas to create ambient lighting and adjust brightness levels with a simple touch. The dimmer panel is also suitable for commercial spaces such as restaurants, bars, or retail stores, where customizable lighting can enhance the atmosphere. With its user-friendly interface and compact size, the touch dimmer is a versatile solution for achieving desired lighting effects in any environment.

Touch Dimmer Wall Mounted

Touch Dimmer Wall Mounted for LED Strip Light
