Mini Neon LED Lights 4mmx10mm CRI90 Side Lighting

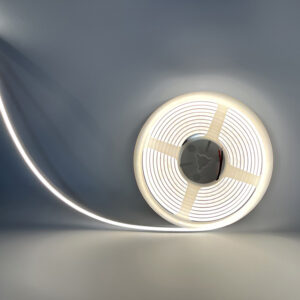

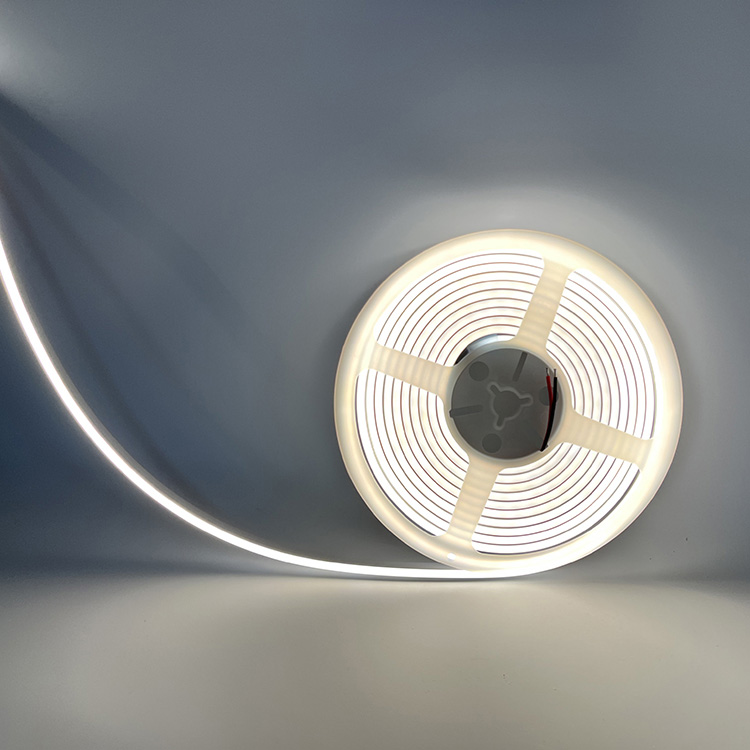

What Is the ILED-NT1 Mini Neon?

The ILED-NT1 Mini Neon is a flexible silicone jacket designed to slip over standard 5 mm or 6 mm width LED strip lights, transforming them into a neon-style side-lit tube. The food-grade silicone diffuser creates a soft, uniform glow along the full length of the strip with no visible LED dots — achieving the aesthetic of traditional gas neon without the fragility, high voltage, or maintenance requirements. The neon cover itself is rated IP67, making it suitable for both indoor and outdoor installations.

Key Specifications

Important — LED Strip Sold Separately

The ILED-NT1 Mini Neon is a silicone diffuser cover only; the LED strip light is not included. You must select a compatible LED strip separately. The NT1 accepts any 5 mm or 6 mm width PCB LED tape — choose either a 120 LEDs/m SMD strip or a 480 LEDs/m COB strip. COB strips produce a denser, more uniform glow inside the neon tube, while SMD strips are more cost-effective. Always verify the PCB width of your selected strip matches the 5 mm or 6 mm requirement before ordering the neon cover.

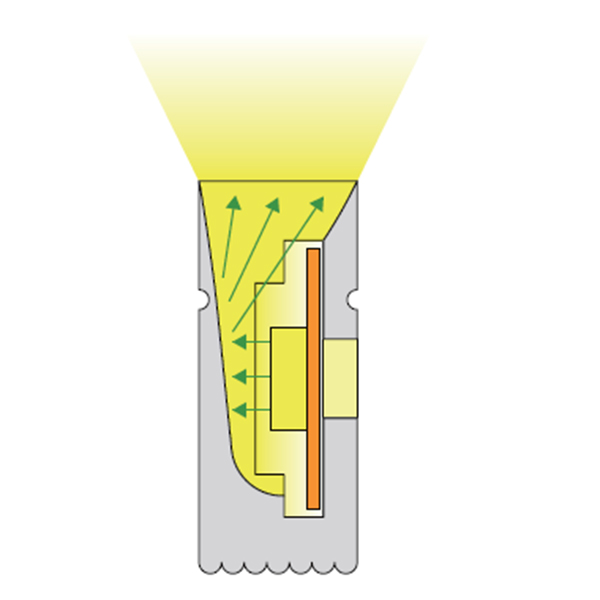

Side-Lighting Design

Unlike top-emitting LED strips that shine light upward or downward, the ILED-NT1 is designed for side illumination. The silicone jacket emits light laterally at a 120° beam angle, creating a even, continuous neon-like glow around the entire circumference of the tube. This side-lighting approach eliminates hot spots and produces the classic neon aesthetic — a smooth, glowing line of colour or white light with no visible LED points.

Food-Grade Silicone Construction

The NT1 is manufactured from food-grade silicone, which is non-toxic, UV-resistant, and rated for outdoor use. The IP67 rating means the cover protects against temporary submersion — suitable for outdoor signage, façade lighting, and landscape installations. The silicone remains flexible across a wide temperature range (-20°C to 50°C) and does not yellow or crack over time.

Applications

The ILED-NT1 is suited to decorative and accent applications where a neon aesthetic is desired: signage and lettering, architectural feature lighting, retail displays, hospitality interiors, bar and restaurant ambient lighting, holiday and event decorations, and automotive or marine accent trim. The side-lighting design makes it particularly effective for cove tracing, edge-lit displays, and curved installations where a traditional rigid neon tube would be difficult to install.

The ILED-NT1 Mini Neon transforms any standard 5 mm or 6 mm LED strip into a neon-style side-lit tube using food-grade silicone. The result is a soft, uniform glow with no visible LED dots — the classic neon aesthetic without the brittleness, high voltage, or maintenance of traditional gas neon.

Rated IP67, the NT1 is suitable for both indoor and outdoor use. The food-grade silicone is UV-resistant and remains flexible in extreme temperatures, making it ideal for signage, façade lighting, and landscape installations. The 120° side-lighting beam creates a consistent neon-like effect around the entire tube circumference.

Two compatible strip options — 120 LEDs/m SMD or 480 LEDs/m COB — let you choose the brightness and cost balance that suits your project. COB produces a denser, more uniform glow; SMD is more economical. Custom colour temperatures beyond the standard 2300K–6000K range are available on request.

Is the LED strip included?
No. The ILED-NT1 is a silicone diffuser cover only. The LED strip must be purchased separately. Choose a 5 mm or 6 mm width PCB strip — either a 120 LEDs/m SMD variant or a 480 LEDs/m COB variant. Always confirm the PCB width matches the NT1 requirement before ordering.

Which LED strip should I pair with the NT1?
Both 120 LEDs/m SMD and 480 LEDs/m COB strips fit the NT1. COB strips produce a denser, more uniform glow inside the silicone tube with no visible LED points. SMD strips are more cost-effective and still produce a good neon effect. Choose COB for high-end installations where uniformity matters; choose SMD for budget-conscious projects.

What colour temperatures are available?
The standard range covers 2300K (very warm), 2700K (warm white), 4000K (neutral white), and 6000K (cool white). Custom colour temperatures outside this range are available on request — specify your required temperature at order time.

Can the NT1 be bent into shapes?
Yes. The silicone jacket is fully flexible and can be bent by hand into curves, arcs, and custom shapes. Minimum bend radius is approximately 30 mm. Mark the desired shape on the silicone before installing the LED strip, then slide the strip in and secure the ends.

Is the NT1 suitable for outdoor use?
Yes. The NT1 is rated IP67 and made from UV-resistant food-grade silicone, making it suitable for outdoor signage, façade lighting, and landscape installations. Ensure the LED strip you pair with it is also rated for outdoor use (IP65 or higher) and that all connections are properly sealed.

What is the difference between the NT1 and the ILED-COB series?
The NT1 is a silicone cover that requires a separate LED strip — it is not a self-contained light source. The ILED-COB series (13918, 13921, 13929, 13475) are complete LED strip products with built-in LEDs. If you need a finished neon tube, combine the NT1 with a compatible COB or SMD strip. If you need a flat strip for cove or under-cabinet lighting, choose a COB model directly.

Signage and lettering.
— The ILED-NT1 turns any shape into a glowing neon sign. Bend the silicone tube into letters, logos, or graphics, then insert a compatible LED strip. The side-lighting design produces a uniform neon-like glow around the entire perimeter — ideal for shop fronts, bar signs, and decorative wall lettering. IP67 rating allows outdoor signage.

Architectural accent and feature lighting.

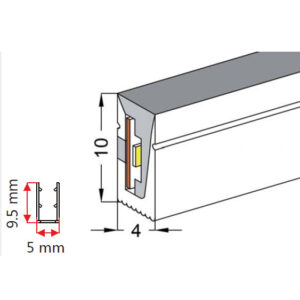

— Trace building edges, cornices, and architectural details with a continuous neon line. The 4×10 mm cross-section is slim enough to remain unobtrusive while delivering a bold illuminated outline. The flexible silicone conforms to curves and angles that rigid neon cannot achieve.

Retail and hospitality interior lighting.
— Create ambiance in restaurants, bars, hotels, and retail spaces with custom-shaped neon features. The warm colour temperatures (2300K–2700K) suit lounge and dining atmospheres; neutral white (4000K) works for modern retail displays. The dotless side-lighting effect adds visual interest without glare.

Holiday, event and display decoration.
— The NT1 is easy to cut and shape on-site, making it ideal for seasonal installations, exhibition stands, and event décor. The IP67 rating allows outdoor event use. Custom colour temperatures and lengths are available for project-specific requirements.

COB vs SMD inside the neon. — COB strips (480 LEDs/m) produce a denser, more uniform glow inside the silicone tube with no visible LED points. SMD strips (120 LEDs/m) show slight dot patterns but are more cost-effective. For high-end signage where uniformity is critical, choose COB. For budget projects, SMD is acceptable.

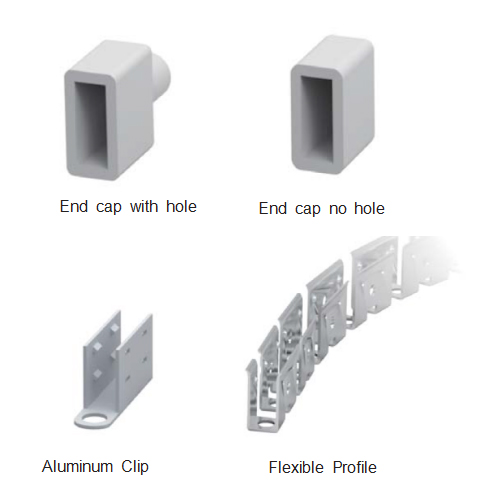

Bending and installation. — The NT1 bends by hand with a minimum radius of approximately 30 mm. Mark your desired shape on the silicone before inserting the LED strip — once the strip is inside, adjustments are difficult. Secure the neon tube to its mounting surface using stainless steel clips or adhesive-backed mounting channels compatible with the 10 mm width.

Outdoor installation requires sealed connections. — While the NT1 silicone jacket is IP67, the LED strip connections (power input, splices, and controller joints) must also be waterproofed. Use IP67-rated connector caps and silicone sealant at all exposed joints. Failure to seal connections will compromise the IP67 rating.
