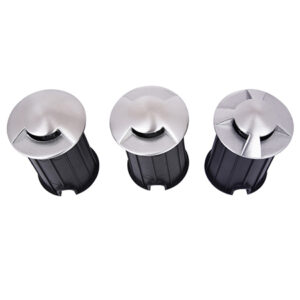

Round IP68 62mm 12V 24V 3W Decorative Underground LED Light

Round IP68 62mm 12V 24V 3W Decorative Underground LED Light

Round IP68 62mm 12V 24V 3W Decorative Underground LED Light for Underground Lighting use Epistar Light and Safety Glass with Robust 304 Stainless Steel Body. DC/AC 12V or 24V provides safey electrical. Directing, Single Side , Double Sides or four sides have different directing lighting makes it is the best decorative lighting for walkway, underground, embedded wall lighting.

>>Model:ILED-LUL-103(A/B/C/D)

>>Inventory: 500+ pcs In Stock

>>Categories: >> Decorative LED Lighting» Underground LED Deck Light

Contact Now

CLICK HERE TO SEND INQUIRY

Description

Order Code

Installation

Application

Key Parameters

Model	Wattage	Direction	Dimensions	Cuthole
ILED-LUL-103A	3W	Directing	φ62x88mm	φ55mm

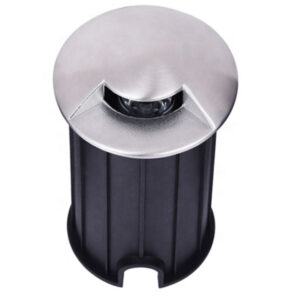

ILED-LUL-103B	3W	Single Side	φ62x95mm	φ55mm

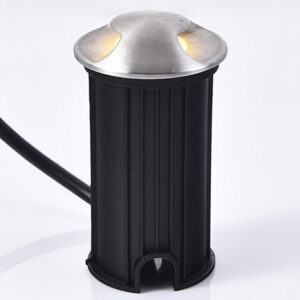

ILED-LUL-103C	3W	Double Sides	φ62x95mm	φ55mm

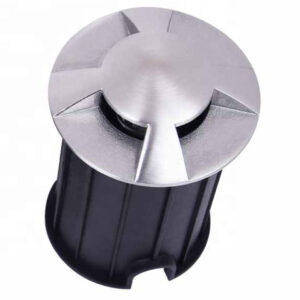

ILED-LUL-103D	3W	Four Sides	φ62x95mm	φ55mm

Input	DC 12V / 24V AC 12V / 24V	LED Source	Epistar LED
Lumen Output	85-90LM/W	Beam Angel	60°
Materials	304 Stainless Steel + PC	IP Class	IP68
Color	2800-6500K/RED/GREEN/BLUE
Warranty	2 years	Certifications	CE,RoHS

Package Detail

Net Weight	Quantites /Carton	Carton Size	Gross Weight/Carton
0.2KGs	100 pcs	42x42x54cm	19.6 KGS

Application

Widely providing decorative lighting to Outdoor, Indoor,Exterior,underground,inground,walkway, embedded wall, etc.

Round IP68 62mm 12V 24V 3W Decorative Underground LED Light

Color Temperature and Color of Body will be as the Postfix of all code. CCT: 3000K – WW / 4000K – CW / 6000K –W / RED – R / GREEN –G / BLUE-B Lighting Direction: Directing – A / One Side – B / Two Sides – C / Four Sides - D Standard: Directing / 3000K. For example: One Side , 6000K, , the detail code is ILED-LUL-103B-W
62mm Round Inground Underground LED Deck Light Order Items
Item NO.	Lighting Direction	Diameter	MOQ
ILED-LUL-103A	Directing	62mm	100 pieces
ILED-LUL-103B	One Side	62mm	100 pieces
ILED-LUL-103C	Two Sides	62mm	100 pieces
ILED-LUL-103D	Four Sides	62mm	100 pieces
