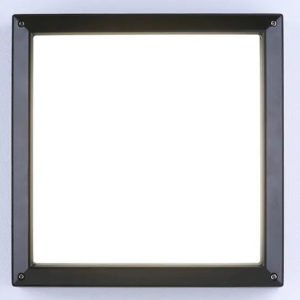

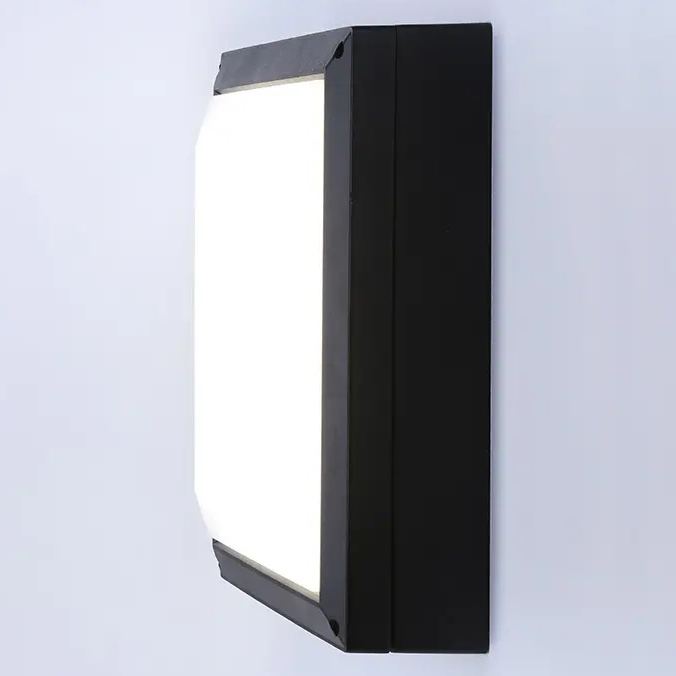

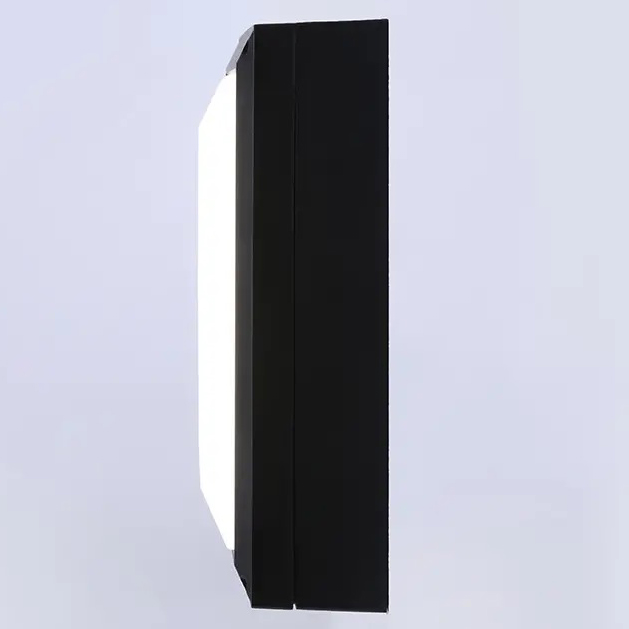

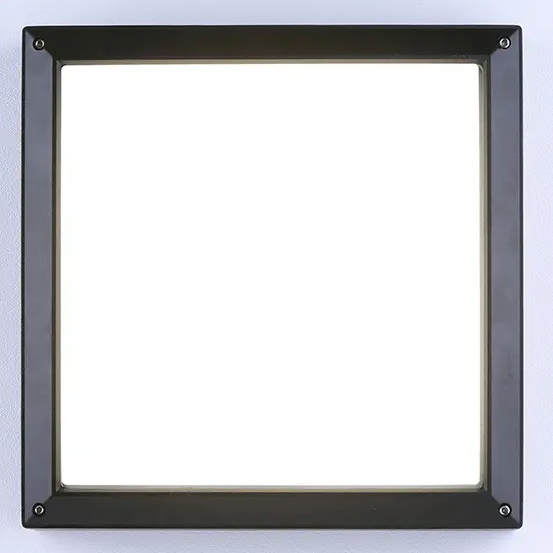

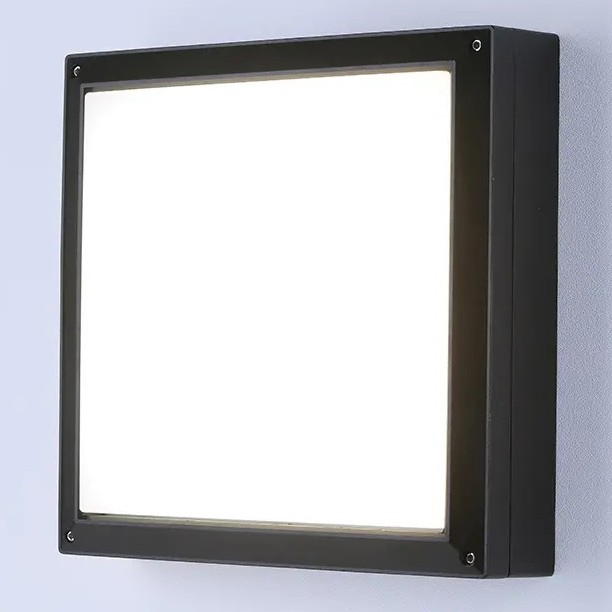

Square 270mm Aluminum Waterproof IP65 15W 18W LED Bulkhead Light
ILED-BH-R275 S is a strong impact resistant light fitting featuring a professional LED light source and integral constant current LED driver. ILED-BH-R275 S is also available in several sizes and various of functions such as sensor,dimmable,dali and emergency. Typical applications include mining & industrial sites, government projects, education facilities, other commercial and industrial projects.
Highlights
→ Robust Cast Aluminum Body
→ Anti-UV Diffuser
→ Emergency,Sensor,DALI
→ Anti Salty,IP65,IK10
→ Uniform Soft Lighting
| Model | Wattage/Lumen | Cover | Dimensions |
| ILED-BH-R275 S | 15W / 1400LM
18W / 1700LM |
Plain | 270x270x86mm |
| ILED-BH-R275-GL S | 15W / 1400LM
18W / 1700LM |
Grille Crossing | 270x270x86mm |
| ILED-BH-R275-EL S | 15W / 1400LM
18W / 1700LM |
Eyelid Half Moon | 270x270x86mm |
| ILED-BH-R275-TL S | 15W / 1400LM
18W / 1700LM |
Crossing | 270x270x86mm |
| Input | 220-240VAC or
110-277VAC |
LED Source | LumiLEDs LED |
| Watts | 15W/18W | Lumen Effective | 90-100LM/W |
| Lumen Output | 1500LM/1700LM | Size | 270*270x86mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White / Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
Square LED Bulkhead Lights Application
Square LED Bulkhead Lights Application
Packaging
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
| 2.1KGs | 10 pcs | 60x54x32cm | 22.8KGS |
| Model | Wattage/Lumen | Cover | Dimensions |
| ILED-BH-R275 S | 15W / 1400LM
18W / 1700LM |
Plain | 270x270x86mm |
| ILED-BH-R275-GL S | 15W / 1400LM
18W / 1700LM |
Grille Crossing | 270x270x86mm |
| ILED-BH-R275-EL S | 15W / 1400LM
18W / 1700LM |
Eyelid Half Moon | 270x270x86mm |
| ILED-BH-R275-TL S | 15W / 1400LM
18W / 1700LM |
Crossing | 270x270x86mm |
| Input | 220-240VAC or
110-277VAC |
LED Source | LumiLEDs LED |
| Watts | 15W/18W | Lumen Effective | 90-100LM/W |
| Lumen Output | 1500LM/1700LM | Size | 270*270x86mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White / Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
Square LED Bulkhead Lights Application
Square LED Bulkhead Lights Application
Packaging
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
| 2.1KGs | 10 pcs | 60x54x32cm | 22.8KGS |
Feedback from the Clients Who Used
We purchased Oval and Circle LED Bulkhead Lights in iLed from 2014. Over ten thousand of bulkhead lights in our projects during these years, they are working well. We have not received any complains from our clients. Thanks for these guys’ supportment. Good quality saves much maintainance cost for us.
Marlon
Purchasing Manager
We met in lighting fair at 2018,and attracted by their products. Our clients like the powder coated of their bulkhead lights, and iLed developed CCT changeable version for us. It much helps us do the stock easily. The high lumen effective 110LM/W satisfy our clients. Top quality and reasonable price is for iLed.
Craig Horni
Lighting Wholesale
Everytime I gave the requirments from our clients to iLed from 2017, the guys feedback quickly with professional solutions. Different projects covered Triac dimmable, DALI, Emergency and Motion sensor of LED Bulkhead Lights. They always help us produce these bulkhead light fixtures before the period of construction.
David Walton
Electrical Contractor
iLed helped us win many projects in Saudi Arabia. It was 345 pcs of emergency LED bulkhead lights for our first project in 2019. iLed gives us 2 years warranty for battery of emergency bulkhead lights. But they are work well until now. The guys told us they leave much space for the battery so that it is enough to the lost of battery capacity.
Mohamed Baroudi
Product Manager
We bought square 20W LED bulkhead lights for a school project from iLed. They were installed on the corridors ceiling. iLed quickly gave us the solution with square bulkhead lights with corridor motion sensor, which can be standby, not flicker, no blue light hazard. They are not only saving cost, but also safe to eyes.
Baptiste
Owner,Lighting Srl
We used 20W Round LED Bulkhead Light for Hong Kong Central Library. The lights were installed on outside stair wall. We knew iLed did well IP65 waterproof and IK10 for this bulkhead light fixtures. The alumimum body is robust like the people of HongKong are strong and robust.They are working well more than 4 years.
Jason Lee
CEO of ELS
Can’t find a suitable product?
All of our LED lighting solutions can be customised to your needs. We also offer free, no-obligation consultations, prototype development, sample testing and can assist with your development projects.
Simply call us on with your special requirements and our experts will gladly help you find the best solution for your project.
