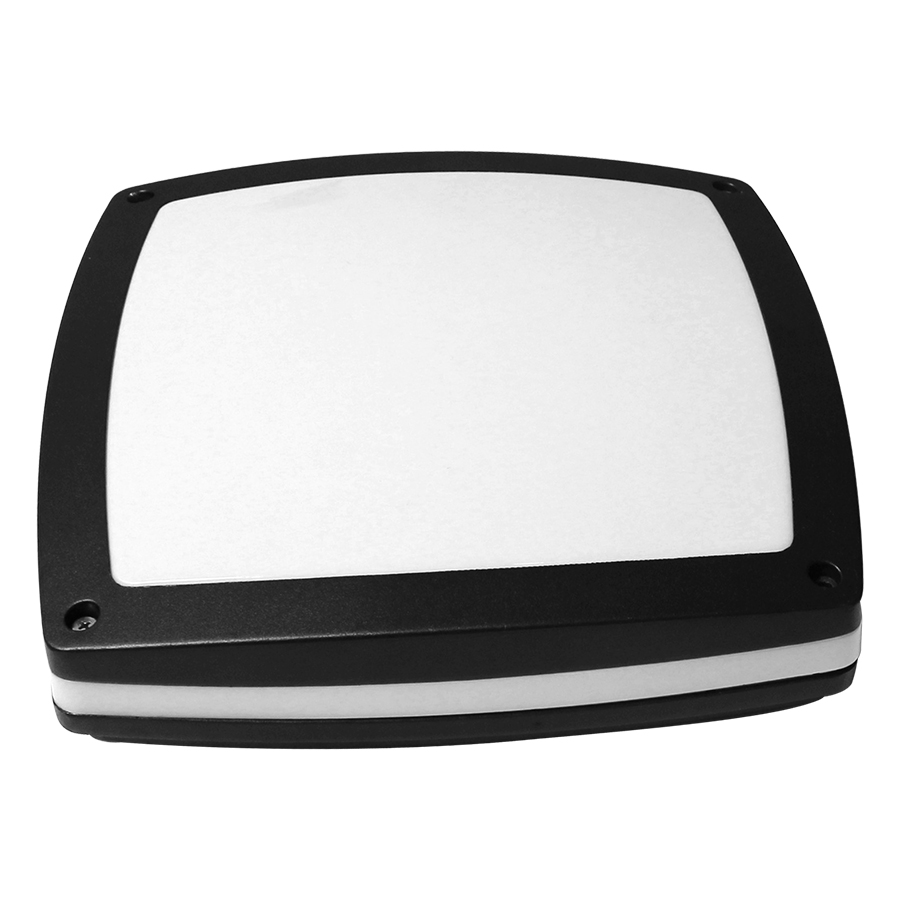

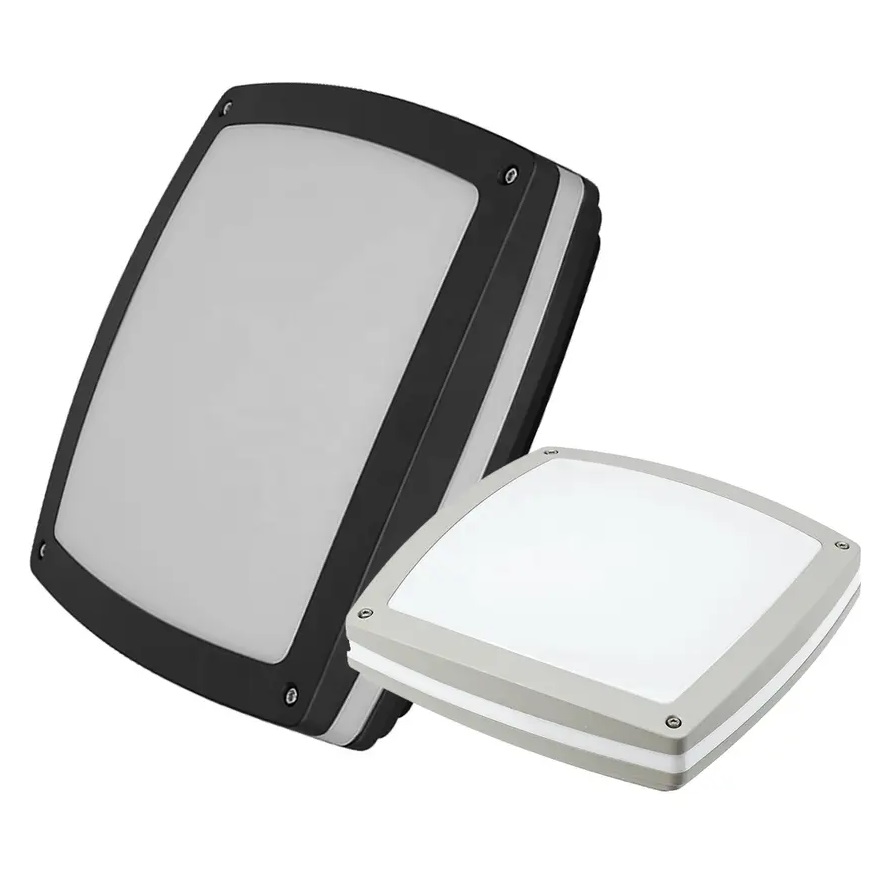

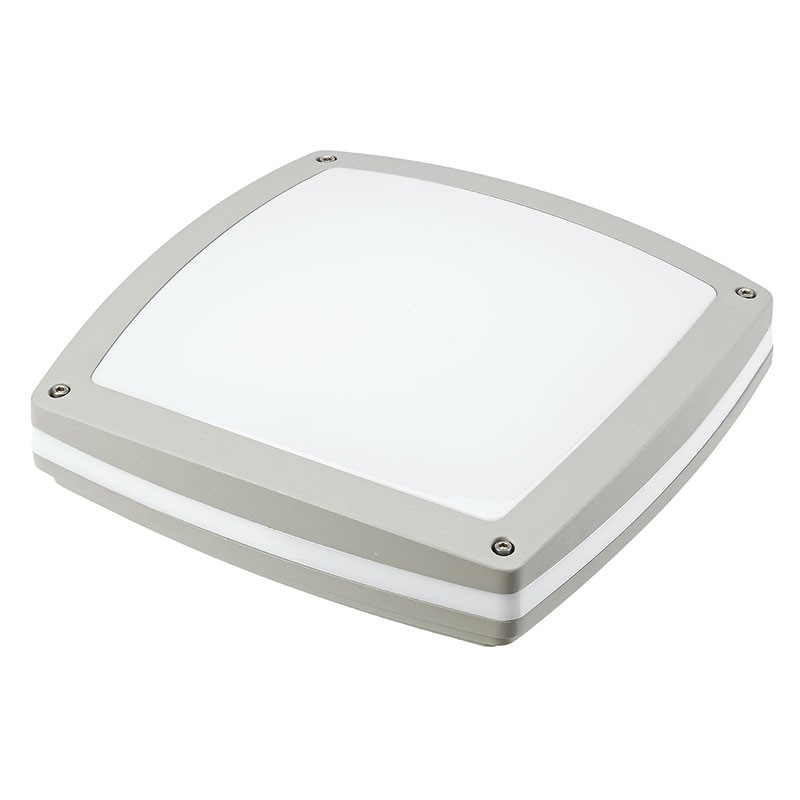

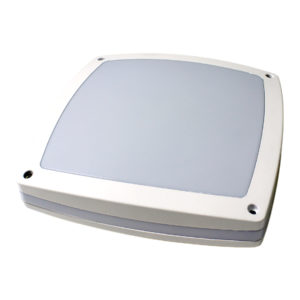

Square Weatherproof IP65 IK10 LED Bulkhead Ceiling Light

Square Weatherproof IP65 IK10 LED Bulkhead Ceiling Light uses Robust Die-Cast Aluminum Body and Anti UV polycarbonate enclosure is vandal resistant and provides protection to IP65. High Lumen and Stable quality makes it as the best solution lighting to walkways, tunnels, storage areas, car parks etc.

>>Model:ILED-BH-S(XX)

>>Inventory: 500+ pcs In Stock

>>Categories: >> Facade LED Lighting» LED Bulkhead Light
Contact Now

CLICK HERE TO SEND INQUIRY


Wechat-iLeds

Description

Order Code

Installation

Application

Key Data:

Model

Wattage

Lumen Output

Dimensions

ILED-BH-S20W

20W

1600LM (80LM / W)

300x300x90mm

ILED-BH-S30W

30W

2400LM (80LM / W)

300x300x90mm



Other Parameters

Input

110V~240VAC 50/60Hz

LED Source

LM80 LEDs

Materials

Dia Dast Aluminum+ PC

PF

>0.9

CCT

2800-7000K

CRI

>80

Electrical Classification

 Class I

IP Class

 IP65

Beam angle

120°

Body Color

White, Black or Gray Painted

Warranty

3 years

Certification

CE&RoHS&SAA,TUV



Package Information:

Model

Gross Weight / Piece

Inner Box Size

Quantities / Carton

Carton Size

Gross Weight / Carton

ILED-BH-S20W

1.8KGS

310x310x100 mm

5 pieces

530x330x340mm

10.5 KGS

ILED-BH-S30W

1.82 KGS

310x310x100 mm

5 pieces

530x330x340mm

10.7 KGS



Application:
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.


Drawing Square LED Bulkhead Light
Drawing Square LED Bulkhead Light
Producing Square LED Bulkhead Light
Producing Square LED Bulkhead Light
Aging-Test LED Bulkhead Light
Aging-Test LED Bulkhead Light
Photometric LED Bulkhead Light
Photometric LED Bulkhead Light

Color Temperture and Color of Body will be as the Postfix of all code.

CCT: 3000K – 3K / 4000K – 4K / 5000K -5K / 6000K-6K

Color Finished: White Painted – WH / Black Painted – BL / Silver Gray / SG

Standard CCT and Color Finished: Black Painted, 3000K.



For example:

Normal, 4000K, Black Painted , the detail code is

ILED-BH-S20W-4KBL



20W Order Items

Item NO.

Function Detail

MOQ

ILED-BH-S20W

Normal

100 pieces

ILED-BH-S20W-MC

On/Off Motion Sensor

100 pieces

ILED-BH-S20W-MLC

Dimmable Standby Sensor

100 pieces

ILED-BH-S20W-EM

Emergency 3 Hours

100 pieces

ILED-BH-S20W-EMS

Sensor + Emergency 3 Hours

100 pieces

ILED-BH-S20W-MLEM

Dimmable Standby Sensor + Emergency 3 Hours

100 pieces

ILED-BH-S20W-MLS

Mast Slave Motion Sensor

100 pieces

ILED-BH-S20W-DALI

DALI Dimmable

100 pieces

ILED-BH-S20W-DIM

Triac Dimmable

100 pieces

ILED-BH-S20W-DM10

0-10V Dimmable

100 pieces

30W Order Items

Item NO.

Function Detail

MOQ

ILED-BH-S30W

Normal

100 pieces

ILED-BH-S30W-MC

On/Off Motion Sensor

100 pieces

ILED-BH-S30W-MLC

Dimmable Standby Sensor

100 pieces

ILED-BH-S30W-EM

Emergency 3 Hours

100 pieces

ILED-BH-S30W-EMS

Sensor + Emergency 3 Hours

100 pieces

ILED-BH-S30W-MLEM

Dimmable Standby Sensor + Emergency 3 Hours

100 pieces

ILED-BH-S30W-MLS

Mast Slave Motion Sensor

100 pieces

ILED-BH-S30W-DALI

DALI Dimmable

100 pieces

ILED-BH-S30W-DIM

Triac Dimmable

100 pieces

ILED-BH-S30W-DM10

0-10V Dimmable

100 pieces
