Home >> Product >> LED Downlight >> Top Class Recessed COB LED Downlight 3-8 inch 10-40W for Commercial Lighting

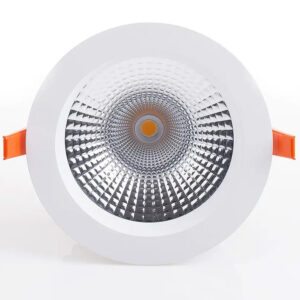

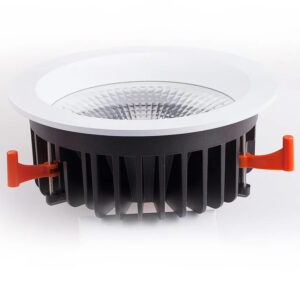

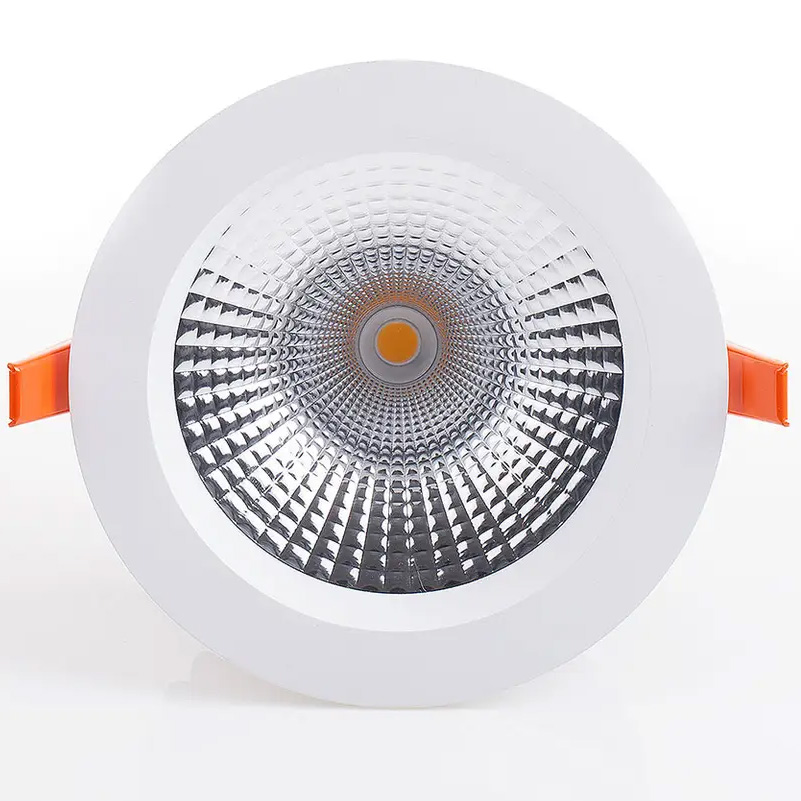

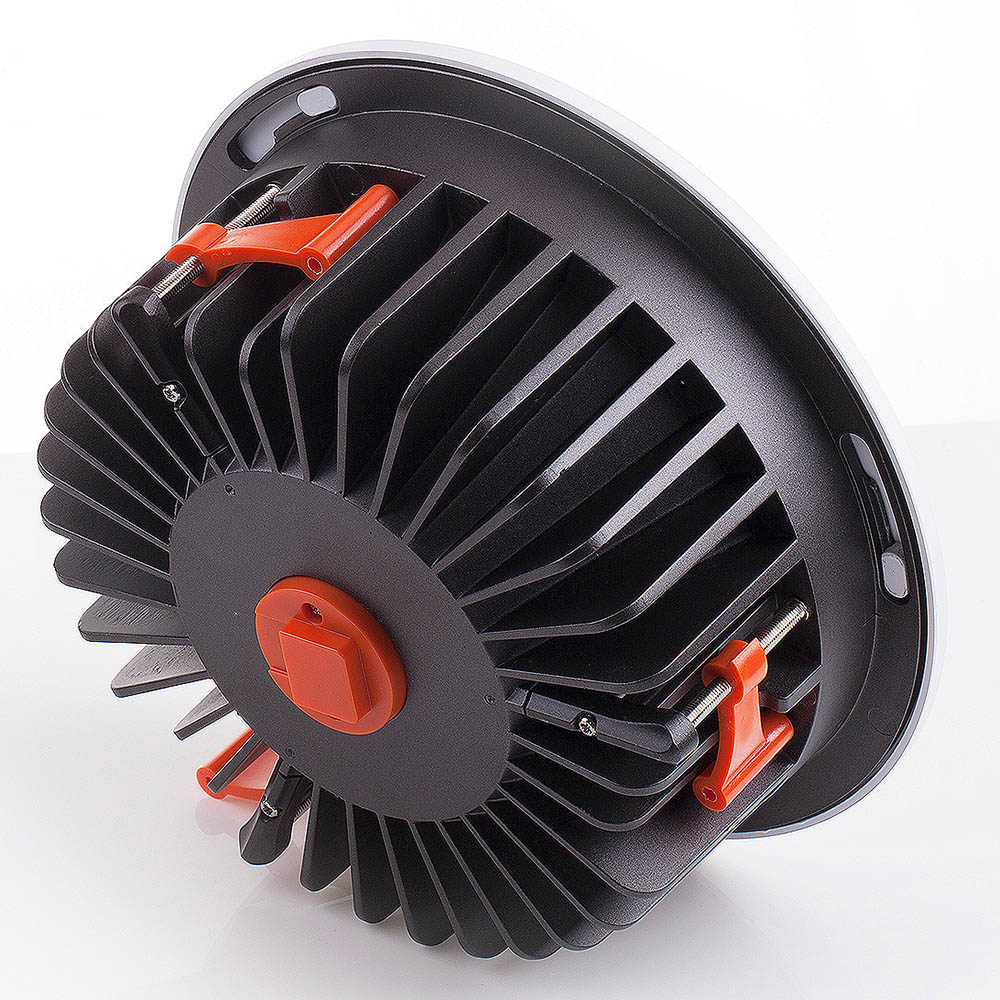

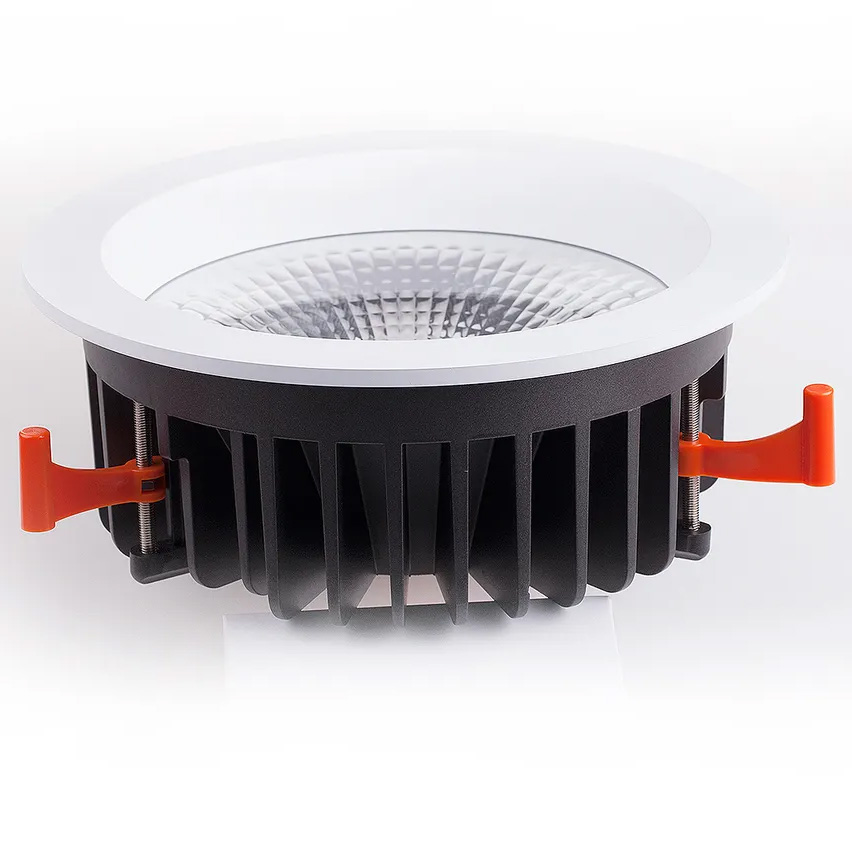

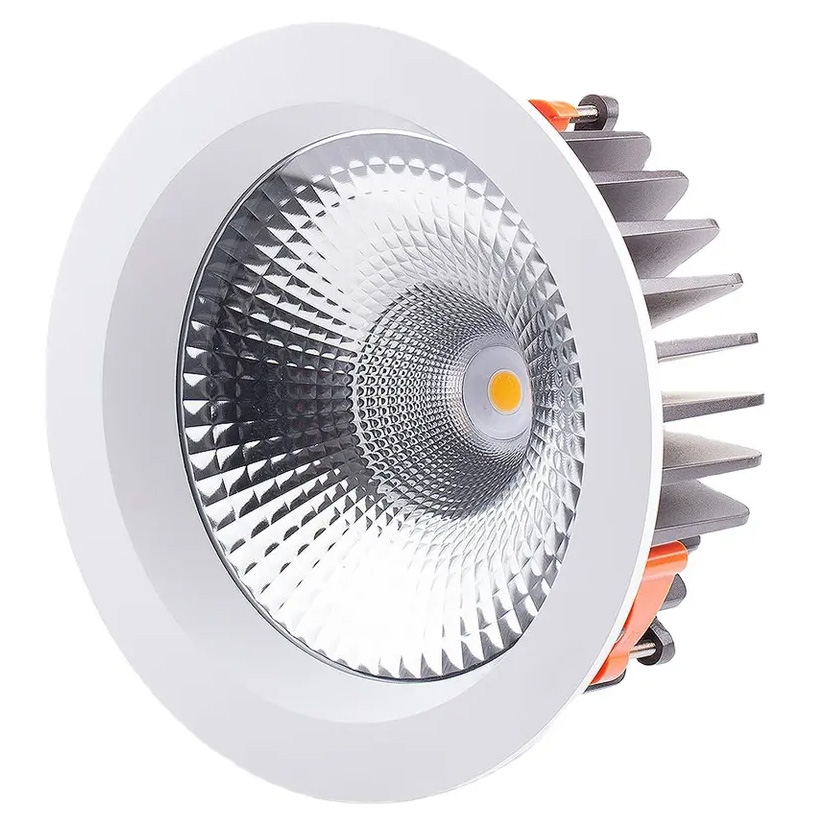

Recessed SMD LED Downlight ILED-DL A COB seriese adopt strong aluminum heat sink, and high transimitte diffuser, it has full range from 3 inch, 4 inch, 6 inch and 8 inch, the watts can be from 10W to 40W. iLed uses high brightness CRI92 CREE/Citizen COB with high lumen output effective as 110LM/W. High power factor LED drivers also have not flicker. All these high quality componts and iLed workers production keep the downlight with 5 years warranty. Meanwhile, it can work with triac dimmable, DALI, 0-10V and emergency kits. So that this recessed SMD LED Downlights are not only for home lighting which are the best lighting for commercial lighting,station lighting and high hall lighting.
CLICK HERE TO SEND INQUIRY
Description
Main Parameters
Model |
Watts |
Lumen |
Size |
Cutout |
Lens |
Function |
ILED-DL3-A-COB |
13W |
1500LM |
φ110x53mm |
φ95mm |
60° |
Normal |
ILED-DL3-A-COB-DIM |
13W |
1500LM |
φ110x53mm |
φ95mm |
60° |
Triac Dimmable |
ILED-DL3-A-COB-DM10 |
13W |
1500LM |
φ110x53mm |
φ95mm |
60° |
0-10V Dimmable |
ILED-DL3-A-COB-DALI |
13W |
1500LM |
φ110x53mm |
φ95mm |
60° |
DALI Dimmable |
ILED-DL3-A-COB-EM |
13W |
1500LM |
φ110x53mm |
φ95mm |
60° |
Emergency |
ILED-DL4-A-COB |
18W |
2100LM |
Φ145x69mm |
Φ120-130mm |
60° |
Normal |
ILED-DL4-A-COB-DIM |
18W |
2100LM |
Φ145x69mm |
Φ120-130mm |
60° |
Triac Dimmable |
ILED-DL4-A-COB-DM10 |
18W |
2100LM |
Φ145x69mm |
Φ120-130mm |
60° |
0-10V Dimmable |
ILED-DL4-A-COB-DALI |
18W |
2100LM |
Φ145x69mm |
Φ120-130mm |
60° |
DALI Dimmable |
ILED-DL4-A-COB-EM |
18W |
2100LM |
Φ145x69mm |
Φ120-130mm |
60° |
Emergency |
ILED-DL6-A-COB |
30W |
3600LM |
Φ190x86mm |
Φ165-170mm |
60° |
Normal |
ILED-DL6-A-COB-DIM |
30W |
3600LM |
Φ190x86mm |
Φ165-170mm |
60° |
Triac Dimmable |
ILED-DL6-A-COB-DM10 |
30W |
3600LM |
Φ190x86mm |
Φ165-170mm |
60° |
0-10V Dimmable |
ILED-DL6-A-COB-DALI |
30W |
3600LM |
Φ190x86mm |
Φ165-170mm |
60° |
DALI Dimmable |
ILED-DL6-A-COB-EM |
30W |
3600LM |
Φ190x86mm |
Φ165-170mm |
60° |
Emergency |
ILED-DL8-A-COB |
40W |
4800LM |
Φ230x99mm |
Φ200-210mm |
60° |
Normal |
ILED-DL8-A-COB-DIM |
40W |
4800LM |
Φ230x99mm |
Φ200-210mm |
60° |
Triac Dimmable |
ILED-DL8-A-COB-DM10 |
40W |
4800LM |
Φ230x99mm |
Φ200-210mm |
60° |
0-10V Dimmable |
ILED-DL8-A-COB-DALI |
40W |
4800LM |
Φ230x99mm |
Φ200-210mm |
60° |
DALI Dimmable |
ILED-DL8-A-COB-EM |
40W |
4800LM |
Φ230x99mm |
Φ200-210mm |
60° |
Emergency |
Other Parameters
Input |
85-277VAC |
LED Source |
Citizen or CREE COB |
Materials |
Aluminum + PC |
PF |
>0.9 |
CCT |
2700K,3000K,4000K,5000K,6000K |
CRI |
92, 95 or 97 |
Electrical Classification |
Class II |
IP Class |
IP44 |
Body Color |
White or Black |
Certification |
TUV,CE,RoHS,SAA |
Packaging Detail
Model |
Carton Size |
Quantities / Carton |
Gross Weight |
ILED-DL3-A-COB |
42x42x28cm |
36 pieces |
21 KGS |
ILED-DL4-A-COB |
52x52x28cm |
27 pieces |
26 KGS |
ILED-DL6-A-COB |
46x46x42cm |
16 pieces |
24 KGS |
ILED-DL8-A-COB |
56x56x35cm |
12 pieces |
26 KGS |
