Buried LED Light Double Sides Lighting IP67 Round ILED-IG1-4 B

What it does

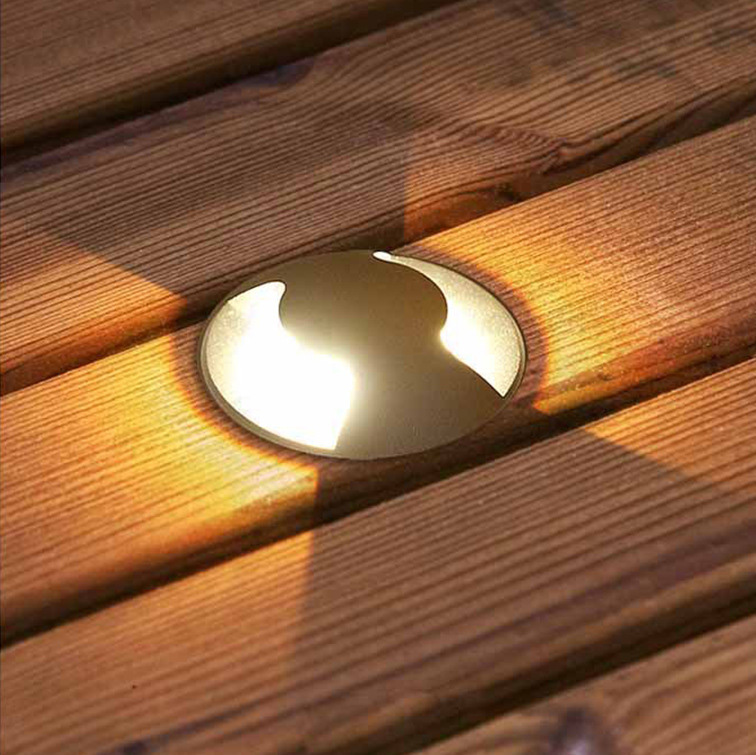

The ILED-IG1-4 B is a double-side LED deck light you set into the ground or embed in a low wall, so it washes both faces of a line at once. Instead of pointing one direction like the single-side A version, it throws light to both sides of the centre, which is what makes it the right fit for a walkway or a centred border where you want light on both edges from one fixture. It is a low-voltage 12V or 24V unit, so it suits outdoor and damp locations.

Four sizes

The family runs in four bodies. ILED-IG1 B is the smallest at φ42mm, 1W. ILED-IG2 B is φ52mm, 1W. ILED-IG3 B is φ62mm, 1 to 3W. ILED-IG4 B is the largest at φ75mm, 1 to 3W. All four are two-side lighting on a 30° beam. The smaller two suit a narrow path; the larger two cover a wider walkway. Each has its own cut-hole, so match the size to the opening you cut.

Two sides, 30° beam

Every unit lights both sides of the centre line, which is the whole point of the B version. A 30° beam on each side gives a defined, directional wash to both faces rather than a soft spread. That reads as two clean lines of light either side of a walk. If you only need the light on one direction, that is the A, single-side model, not this one. Here one fixture lights both sides, so the centre stays even and you use fewer units.

Colour and temperature

Choose a single white from the 2800K to 6500K range, or pick red, green, or blue. The white covers a warm to cool range, so you match the tone to the space. The coloured versions are for marking out a walkway or a feature line. The LED source is a high-power chip, and the output is 85 to 90 lumens per watt, so a 3W unit gives a strong two-sided line for its size.

Power: 12V or 24V, DC or AC

The input is 12V or 24V, and it is available on DC or AC, so it fits both the low-voltage DC runs and the AC outdoor circuits. Keep the supply dry and out of the wet area. Size the supply to the number of lights on the line. Because it is low voltage, it is the safe choice for a place you walk or stand near.

Build and materials

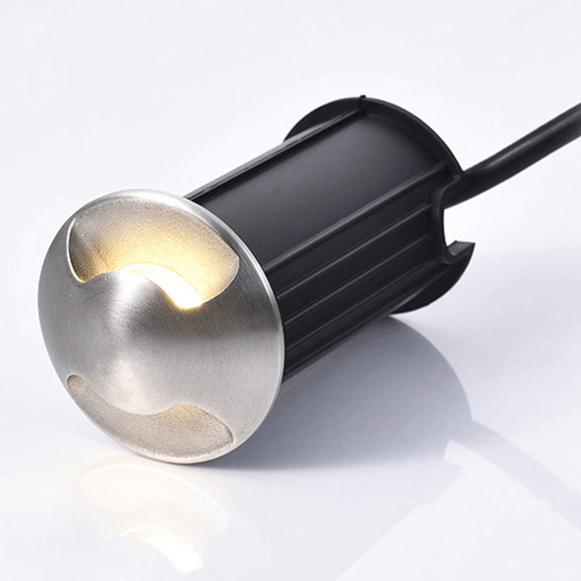

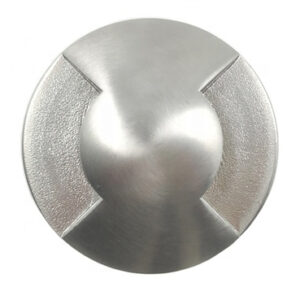

The body is 304 stainless steel and the face is tempered glass. That is the combination that lets it sit in the ground, take foot traffic, and still clear years of weather without corroding. The stainless holds its finish, and the tempered glass spreads the light to both sides and shields the source. It is a small, sealed unit.

IP67 or IP68

The unit is rated IP67, with an IP68 option. IP67 is sealed against dust and against temporary immersion, which covers spray, rain, and a brief flood. IP68 is the deeper-immersion rating for the locations that sit underwater for longer. Pick the rating to the site. The cuthole and the body stay tight, so the joint does not open in the weather.

Installation

Each size has a set cut-hole: φ40mm for the φ42 body, φ46mm for the φ52 body, φ56mm for the φ62 body, and φ64mm for the φ75 body. Cut the opening in the path, deck, or wall to that diameter, set the unit in, and it throws to both sides. Wire the low-voltage supply. The body is shallow, so it seats flush with a finished surface.

Where it gets used

Use the ILED-IG1-4 B on walkways and paths, centred borders and hedges, deck and terrace lines, and the base of a feature wall, anywhere you want both faces lit from one fixture. Because it throws to both sides on a 30° beam, it keeps the centre of a line even and uses fewer units than a single-side row. Where you only need one direction, that is the A model. The IP67 or IP68 body is what suits the outdoor, wet spot.

What you need to supply

A 12V or 24V power supply sized to the load on the line. The cut-tool for the hole your size specifies. The unit, its body, and the faces are all in the box. Keep the supply dry and the line will hold up.

Lifespan and reliability

The high-power chip, the 304 stainless steel, and the tempered glass are the parts that keep it going, and the supplier backs it with a 2-year warranty. It is sealed, has no moving parts, and runs on a low-voltage supply, so the failure points are few. Keep the faces out of a direct impact and it holds up. It is CE and RoHS certified.

Why choose the ILED-IG1-4 B.

It is the two-side inground deck light, in four sizes from φ42mm to φ75mm, so one fixture lights both faces of a walkway or border instead of two single-side units. The 30° beam on each side and the 85 to 90 LM/W output give two crisp, directional washes instead of one, which keeps the centre of a line even. The body is 304 stainless steel with tempered glass, rated IP67 with an IP68 option, on a safe 12V or 24V input, DC or AC. Colour is a white from 2800K to 6500K, or red, green, or blue. Each size has its own cut-hole, so the install lines up. It is CE and RoHS certified with a 2-year warranty. If the job is a symmetrical line of light on both sides of a walk, this is the fixture. It throws two clean lines from one fixture, so the walk stays even.

What is the difference between the A and the B model?

The B is two-side lighting: it throws to both faces of the centre line, so one fixture lights both sides of a walk. The A is single-side, which you point at the one direction you want to wash. Use the B where a line needs even light on both edges and you want to use fewer units. Use the A where only one face matters. The four sizes, from φ42mm to φ75mm, are the same on both.

How do I choose which size?

Match the body to the opening you will cut and the width of the line. ILED-IG1 B at φ42mm and ILED-IG2 B at φ52mm are 1W, for a narrow path or a tight border. ILED-IG3 B at φ62mm and ILED-IG4 B at φ75mm run 1 to 3W, so they throw a brighter two-sided line across a wider walkway. The cut-holes are φ40mm, φ46mm, φ56mm, and φ64mm, so measure the opening first.

What is the difference between IP67 and IP68?

IP67 is sealed against dust and against temporary immersion, which covers spray, rain, and a brief flood. IP68 is the deeper-immersion rating for a spot that sits underwater for longer. For most walkway, deck, and border work, IP67 is enough. Pick IP68 for the pool-adjacent and permanently wet locations. Both are the same two-side body and the same 30° beam.

Does it run on DC or AC?

Both. The input is 12V or 24V on DC or on AC, so it fits a low-voltage DC run or an AC outdoor circuit. Pick the one that matches the supply you are already running to the site. The fixture is low voltage, so it is safe to install where people walk or stand. The supply should stay dry, though, since the fixture is the waterproof part.

What colours can I get?

A single white from the 2800K to 6500K range, or red, green, or blue. The white covers a warm to cool range, so you match the tone to the space. The colours are for marking out a walkway or a feature line. The 30° beam keeps whichever you pick as two clean, directional lines on either side.

Put the ILED-IG1-4 B on the lines you light on both sides: walkways and paths, centred hedges and borders, deck and terrace lines, the face of a feature wall, and the edges of a lawn. Because it throws to two sides on a 30° beam, it keeps the centre of a line even and uses fewer units than a row of single-side lights. The four sizes, from φ42mm to φ75mm, let the smaller two cover a narrow path and the larger two cover a wider walkway. The 85 to 90 LM/W output keeps both lines crisp. A 12V or 24V input, DC or AC, keeps it safe in the damp location. Choose IP67 for most outdoor work and IP68 for the permanently wet spots. For a narrow path, run the small φ42 and φ52 units along it and let each throw to both sides, so the centre stays lit and you need fewer bodies. For a wider terrace edge, step up to the φ75 unit and space them to the design. The two-sided throw is what keeps each line even on both edges. If you only need the light on one side of a line, that is the A, single-side model.

Check these before you buy the ILED-IG1-4 B. The four sizes run from ILED-IG1 B at φ42mm, 1W, up to ILED-IG4 B at φ75mm, 1 to 3W, and each has a set cut-hole from φ40mm to φ64mm, so measure the opening first. It is two-side lighting on a 30° beam, 85 to 90 LM/W, in 2800K to 6500K white or red, green, and blue. The body is 304 stainless steel with tempered glass, rated IP67 with an IP68 option, on a 12V or 24V input, DC or AC. It ships in a carton of 100 pieces at 0.16kg each, a 36 x 36 x 48cm carton weighing 15.6kg gross. A power supply is not included. The small sealed body and the low-voltage input are what suit the wet, outdoor spot. Both the A and the B share the same four sizes and cut-holes, so pick the throw you need. If the job is a symmetrical line of light on both sides of a walk, this is the fixture.
