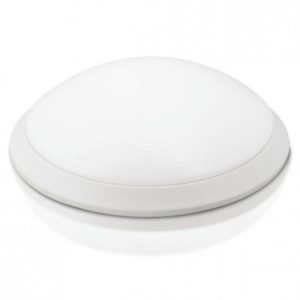

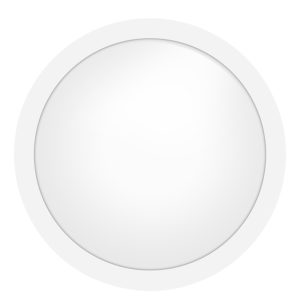

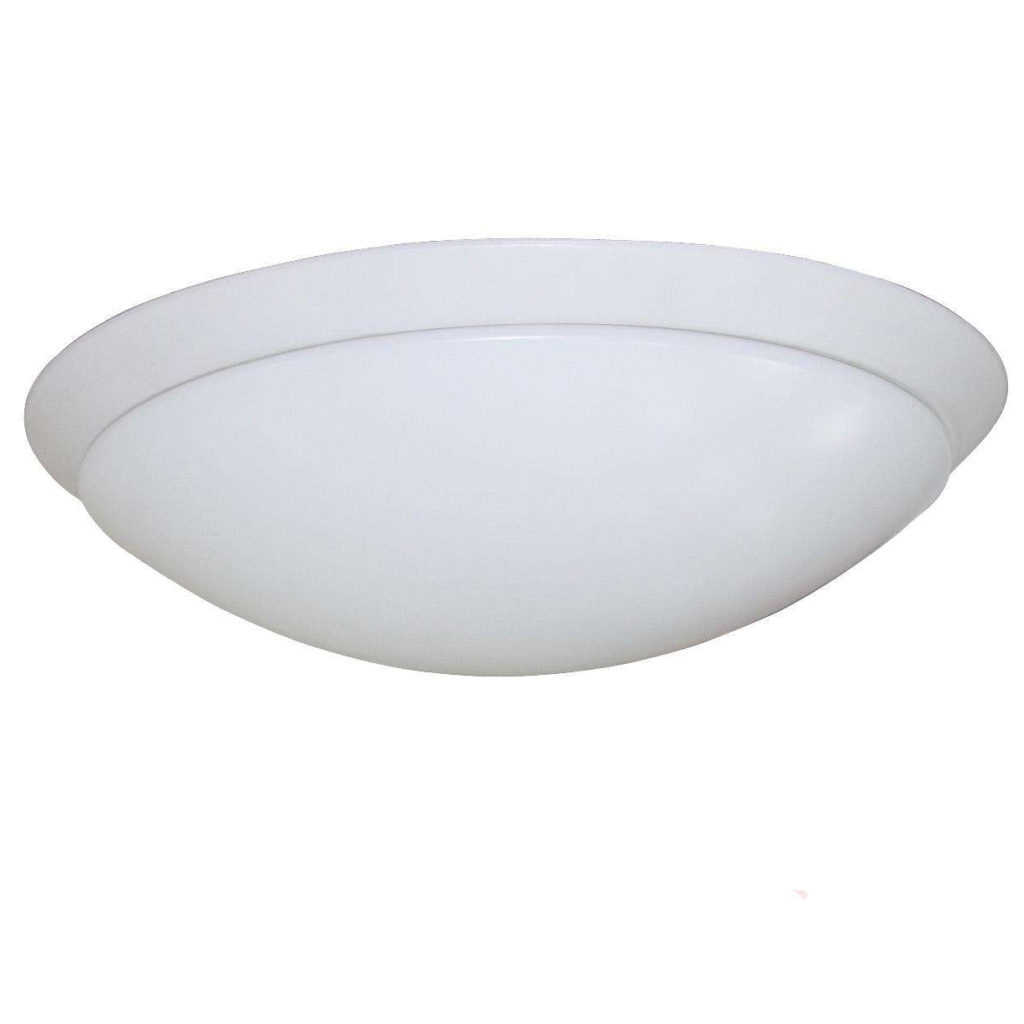

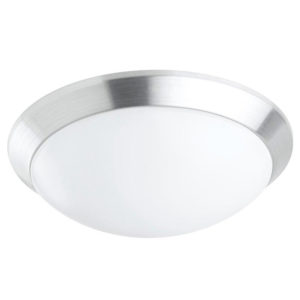

Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety

Emergency 18W 24W LED Oyster Ceiling Plafondi Light for Safety Lighting can be perfect to work with iLed Emergency System, adopt LM80 LED source,CRI>80,PF>0.9, high lumen output 110LM / W for commercial lighting, and also a good option to replace traditional 2D Lighting Fitting, also approved CE, RoHS, SAA and TUV.

Highlights

→Exceptional 110LM/W Efficiency
→Integrated 3-Hour Emergency
→Changeable CCT Versatility
→Premium LumiLEDs Source
→DALI Dimming Compatible

iLed Wechat
certification
Model Wattage Lumen Output Dimensions
ILED-OL-A18W EM 18W 2000LM (110LM / W) Ф326x98mm
ILED-OL-A24W EM 24W 2640LM (110LM / W) Ф395x113mm



Input 220V~240V/110-277VAC 50/60Hz LED Source LumiLEDs LEDs
Materials Aluminum + PMMA PF >0.9
CCT 2800-7000K CRI >83
Electrical Classification  Class I IP Class  IP44
Beam angle 120° Body Color White Painted or Silver
Warranty 3-5 years Certification CE&RoHS&SAA,TUV



Model Emergency Watts Emergency Lumen Output Emergency During
ILED-OL-A18W-EM 2.5W 350LM 3 hours
ILED-OL-A24W-EM 2.5W 400LM 3 hours



Send Your Inquiry

The Emergency 18W/24W LED Oyster Ceiling Plafondi Light for Safety, model ILED-OL-A EM, is a premium, round plafon fixture meticulously designed to provide both everyday illumination and critical emergency backup, making it an indispensable asset for environments prioritizing occupant safety and operational continuity. Available in two configurations—18W (Φ326x98mm, 2000LM) and 24W (Φ395x113mm, 2640LM)—this series leverages advanced LumiLEDs LEDs to deliver an exceptional 110LM/W efficacy, ensuring brilliant, uniform light dispersion via a 120° beam angle that covers up to 25 sqm without shadows or glare, all while achieving up to 95% energy savings over conventional fluorescent or halogen oyster lights. The robust aluminum housing, offered in white painted or silver finishes, pairs with a durable PMMA diffuser to form a low-profile, surface-mountable design that integrates effortlessly into suspended or drop ceilings, blending modern aesthetics with practical resilience in commercial or institutional settings. At the heart of the ILED-OL-A EM is its intelligent emergency system, which maintains 2.5W power draw to sustain 350LM (18W model) or 400LM (24W model) for a full three hours during outages, automatically switching upon power loss to illuminate escape routes and key areas in compliance with stringent safety regulations like EN 60598. This standalone battery integration eliminates the need for external packs, simplifying installation and maintenance while ensuring reliability tested to over 500 cycles. Complementing this are user-friendly features like changeable CCT from 2800K soothing warm white to 7000K energizing daylight, selectable via dip switches for tailored ambiance—warm tones for calming lobbies or cool whites for alert workspaces—all underpinned by a CRI exceeding 83 for lifelike color reproduction that enhances visual clarity and appeal. The optional DALI dimming interface enables precise 0-100% control and integration with building management systems, supporting dynamic adjustments based on occupancy or natural light, further amplifying energy efficiency in smart environments. Electrically robust, the fixture operates on a constant current driver with a power factor greater than 0.9 across 220-240V or 110-277VAC at 50/60Hz, delivering flicker-free performance that mitigates eye strain and headaches, even during prolonged use. Classified as Class I for enhanced electrical safety with grounding, and IP44-rated for protection against solid objects and water splashes, it’s well-suited for indoor spaces with moderate moisture exposure, such as corridors or restrooms, without the fragility of glass diffusers. Free from mercury, UV, IR emissions, and RF interference, it promotes healthier indoor air quality and compatibility with sensitive electronics, outlasting traditional 2D fittings by over 50,000 hours thanks to LM80-certified LEDs and thermal management via the aluminum body. Production adheres to ISO9000 standards, with CE, RoHS, SAA, and TUV certifications validating its environmental compliance and global market readiness, minimizing e-waste through recyclable materials and extended lifespan. Installation and upkeep are streamlined for efficiency: pre-wired leads and universal mounting clips allow for tool-minimal surface fixing in under 15 minutes, ideal for retrofitting legacy systems without structural modifications. The PMMA lens resists yellowing and scratching, preserving light transmission and aesthetics over the 3-5 year warranty period, which encompasses pro-rated lumen maintenance and defect coverage. In normal mode, the high-lumen output rivals 150W incandescents at a fraction of the power, potentially recouping costs in months for high-usage facilities, while the emergency mode’s low-draw design extends battery life without compromising visibility—critical for non-maintained systems where annual testing is mandatory. Beyond specifications, the ILED-OL-A EM embodies a commitment to proactive safety lighting. In high-stakes scenarios like hospitals or schools, its seamless failover prevents disorientation during drills or real events, while DALI compatibility allows centralized monitoring for predictive maintenance. Facility managers value the dual-purpose versatility: a stylish plafon by day, a lifeline by night. For architects, the compact profiles (98-113mm depth) preserve ceiling height, and the silver option adds industrial chic to exposed designs. Sustainability is woven in—reduced energy footprint supports net-zero goals, and the fixture’s modularity facilitates upgrades like sensor add-ons for hybrid intelligence. This oyster light isn’t merely a bulb in a shell; it’s a vigilant guardian of light and life. As buildings evolve toward resilience, the ILED-OL-A EM anticipates disruptions, weaving reliability into the fabric of daily operations. Whether safeguarding staff in office towers or students in dorms, it illuminates paths forward—steady, smart, and steadfast—proving that true safety shines brightest when the power fades.

Reliable Emergency Backup Assurance: With 3-hour runtime at 350-400LM during outages, the built-in battery system auto-activates for safe egress, ideal for code-compliant facilities like schools or offices where uninterrupted lighting prevents hazards and ensures quick evacuations without external wiring complexities.
High-Performance Light Quality: LumiLEDs LEDs deliver CRI >83 and selectable 2800-7000K CCT for natural, flicker-free illumination across 120° beam, appealing to commercial users upgrading 2D fittings who need vibrant, strain-reducing light that enhances productivity and aesthetics in diverse spaces.
Energy-Efficient Smart Integration: At 110LM/W with PF >0.9 and optional DALI dimming, it saves 95% energy over fluorescents while integrating with building controls for automated zoning, attracting eco-focused managers aiming for LEED certification and reduced bills in large-scale installations.
Durable and Easy Maintenance: Aluminum body with IP44 PMMA diffuser resists corrosion and yellowing, backed by 3-5 year warranty and TUV/SAA approvals, making it a low-hassle choice for high-traffic areas where longevity minimizes downtime and replacement costs over 50,000 hours.
Versatile Global Compatibility: Supports 110-277VAC inputs with Class I safety, offering white/silver finishes for modern or industrial looks, perfect for international projects where one fixture adapts to varying voltages and designs without custom adaptations or regulatory hurdles.

Q: How long does the emergency mode last?
**A: Both 18W and 24W models provide 3 hours of continuous light at 2.5W (350LM for 18W, 400LM for 24W), with automatic activation on power failure, tested to 500 cycles for reliable performance in non-maintained safety systems.
Q: Can the CCT be adjusted after installation?
**A: Yes, the changeable CCT (2800-7000K) is set via onboard dip switches during or post-installation, allowing customization for warm ambiance or cool tasks while maintaining CRI >83 for consistent color accuracy without tools or replacements.
Q: Is this light suitable for damp locations?
**A: The IP44 rating protects against water splashes and solids, making it appropriate for indoor humid areas like bathrooms or kitchens, but not fully outdoor; ensure proper sealing for optimal durability in moisture-prone environments.
Q: What dimming protocols are supported?
**A: The optional DALI interface enables 0-100% addressable dimming for smart systems, compatible with building automation; other variants like 0-10V are available, ensuring smooth, flicker-free adjustments without performance loss.
Q: Does it include motion sensing?
**A: Standard EM models focus on emergency backup, but motion sensor add-ons can be integrated for hybrid functionality; consult specs for corridor standby modes, enhancing energy savings in low-traffic zones.

Office Corridors and Stairwells: The 24W model’s 2640LM output with 120° beam ensures clear paths, while 3-hour emergency illuminates during drills; DALI dimming zones for occupancy, covering 25 sqm stretches efficiently to meet fire safety codes and cut idle power use.
Hospital Waiting Areas: Warm 2800K CCT creates calming glow via uniform diffusion, CRI >83 rendering skin tones naturally; IP44 handles sanitizers, with battery backup safeguarding patients during outages in 20 sqm lobbies for uninterrupted comfort.
School Classrooms and Halls: Scalable 18W fits low ceilings, cool 6000K boosting focus; emergency mode maintains visibility for assemblies, RoHS compliance supporting budgets, illuminating 22 sqm zones sustainably without glare or maintenance disruptions.
Retail Store Backrooms: Silver aluminum blends industrially, high-lumen efficiency replacing 2D fittings; motion-optional variants save energy in storage aisles, covering 18 sqm with soft light that highlights inventory safely during after-hours or blackouts.
Hotel Lobbies and Elevators: White finish enhances elegance, changeable CCT for mood-setting; 3-hour runtime ensures guest safety in power dips, with PF >0.9 minimizing grid load across 30 sqm entrances for premium, code-compliant hospitality.

Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.

LED Oyster Lights for Corridor Lighting

LED Oyster Lights for Corridor Lighting

Package Information:

Model Gross Weight / Piece Inner Box Size Quantities / Carton Carton Size Gross Weight / Carton
ILED-OL-A18W  EM 1.25 KGS 335x335x110 mm 10 pieces 685x565x360mm 13.5 KGS
ILED-OL-A24W EM 1.8 KGS 415x415x120 mm 5 pieces 620x430x440mm 9.5 KGS
Specifications
Model Wattage Lumen Output Dimensions
ILED-OL-A18W EM 18W 2000LM (110LM / W) Ф326x98mm
ILED-OL-A24W EM 24W 2640LM (110LM / W) Ф395x113mm



Input 220V~240V/110-277VAC 50/60Hz LED Source LumiLEDs LEDs
Materials Aluminum + PMMA PF >0.9
CCT 2800-7000K CRI >83
Electrical Classification  Class I IP Class  IP44
Beam angle 120° Body Color White Painted or Silver
Warranty 3-5 years Certification CE&RoHS&SAA,TUV



Model Emergency Watts Emergency Lumen Output Emergency During
ILED-OL-A18W-EM 2.5W 350LM 3 hours
ILED-OL-A24W-EM 2.5W 400LM 3 hours



Send Your Inquiry

Description
The Emergency 18W/24W LED Oyster Ceiling Plafondi Light for Safety, model ILED-OL-A EM, is a premium, round plafon fixture meticulously designed to provide both everyday illumination and critical emergency backup, making it an indispensable asset for environments prioritizing occupant safety and operational continuity. Available in two configurations—18W (Φ326x98mm, 2000LM) and 24W (Φ395x113mm, 2640LM)—this series leverages advanced LumiLEDs LEDs to deliver an exceptional 110LM/W efficacy, ensuring brilliant, uniform light dispersion via a 120° beam angle that covers up to 25 sqm without shadows or glare, all while achieving up to 95% energy savings over conventional fluorescent or halogen oyster lights. The robust aluminum housing, offered in white painted or silver finishes, pairs with a durable PMMA diffuser to form a low-profile, surface-mountable design that integrates effortlessly into suspended or drop ceilings, blending modern aesthetics with practical resilience in commercial or institutional settings. At the heart of the ILED-OL-A EM is its intelligent emergency system, which maintains 2.5W power draw to sustain 350LM (18W model) or 400LM (24W model) for a full three hours during outages, automatically switching upon power loss to illuminate escape routes and key areas in compliance with stringent safety regulations like EN 60598. This standalone battery integration eliminates the need for external packs, simplifying installation and maintenance while ensuring reliability tested to over 500 cycles. Complementing this are user-friendly features like changeable CCT from 2800K soothing warm white to 7000K energizing daylight, selectable via dip switches for tailored ambiance—warm tones for calming lobbies or cool whites for alert workspaces—all underpinned by a CRI exceeding 83 for lifelike color reproduction that enhances visual clarity and appeal. The optional DALI dimming interface enables precise 0-100% control and integration with building management systems, supporting dynamic adjustments based on occupancy or natural light, further amplifying energy efficiency in smart environments. Electrically robust, the fixture operates on a constant current driver with a power factor greater than 0.9 across 220-240V or 110-277VAC at 50/60Hz, delivering flicker-free performance that mitigates eye strain and headaches, even during prolonged use. Classified as Class I for enhanced electrical safety with grounding, and IP44-rated for protection against solid objects and water splashes, it’s well-suited for indoor spaces with moderate moisture exposure, such as corridors or restrooms, without the fragility of glass diffusers. Free from mercury, UV, IR emissions, and RF interference, it promotes healthier indoor air quality and compatibility with sensitive electronics, outlasting traditional 2D fittings by over 50,000 hours thanks to LM80-certified LEDs and thermal management via the aluminum body. Production adheres to ISO9000 standards, with CE, RoHS, SAA, and TUV certifications validating its environmental compliance and global market readiness, minimizing e-waste through recyclable materials and extended lifespan. Installation and upkeep are streamlined for efficiency: pre-wired leads and universal mounting clips allow for tool-minimal surface fixing in under 15 minutes, ideal for retrofitting legacy systems without structural modifications. The PMMA lens resists yellowing and scratching, preserving light transmission and aesthetics over the 3-5 year warranty period, which encompasses pro-rated lumen maintenance and defect coverage. In normal mode, the high-lumen output rivals 150W incandescents at a fraction of the power, potentially recouping costs in months for high-usage facilities, while the emergency mode’s low-draw design extends battery life without compromising visibility—critical for non-maintained systems where annual testing is mandatory. Beyond specifications, the ILED-OL-A EM embodies a commitment to proactive safety lighting. In high-stakes scenarios like hospitals or schools, its seamless failover prevents disorientation during drills or real events, while DALI compatibility allows centralized monitoring for predictive maintenance. Facility managers value the dual-purpose versatility: a stylish plafon by day, a lifeline by night. For architects, the compact profiles (98-113mm depth) preserve ceiling height, and the silver option adds industrial chic to exposed designs. Sustainability is woven in—reduced energy footprint supports net-zero goals, and the fixture’s modularity facilitates upgrades like sensor add-ons for hybrid intelligence. This oyster light isn’t merely a bulb in a shell; it’s a vigilant guardian of light and life. As buildings evolve toward resilience, the ILED-OL-A EM anticipates disruptions, weaving reliability into the fabric of daily operations. Whether safeguarding staff in office towers or students in dorms, it illuminates paths forward—steady, smart, and steadfast—proving that true safety shines brightest when the power fades.
Why choose us?

Reliable Emergency Backup Assurance: With 3-hour runtime at 350-400LM during outages, the built-in battery system auto-activates for safe egress, ideal for code-compliant facilities like schools or offices where uninterrupted lighting prevents hazards and ensures quick evacuations without external wiring complexities.
High-Performance Light Quality: LumiLEDs LEDs deliver CRI >83 and selectable 2800-7000K CCT for natural, flicker-free illumination across 120° beam, appealing to commercial users upgrading 2D fittings who need vibrant, strain-reducing light that enhances productivity and aesthetics in diverse spaces.
Energy-Efficient Smart Integration: At 110LM/W with PF >0.9 and optional DALI dimming, it saves 95% energy over fluorescents while integrating with building controls for automated zoning, attracting eco-focused managers aiming for LEED certification and reduced bills in large-scale installations.
Durable and Easy Maintenance: Aluminum body with IP44 PMMA diffuser resists corrosion and yellowing, backed by 3-5 year warranty and TUV/SAA approvals, making it a low-hassle choice for high-traffic areas where longevity minimizes downtime and replacement costs over 50,000 hours.
Versatile Global Compatibility: Supports 110-277VAC inputs with Class I safety, offering white/silver finishes for modern or industrial looks, perfect for international projects where one fixture adapts to varying voltages and designs without custom adaptations or regulatory hurdles.

Frequently Asked Questions

Q: How long does the emergency mode last?
**A: Both 18W and 24W models provide 3 hours of continuous light at 2.5W (350LM for 18W, 400LM for 24W), with automatic activation on power failure, tested to 500 cycles for reliable performance in non-maintained safety systems.
Q: Can the CCT be adjusted after installation?
**A: Yes, the changeable CCT (2800-7000K) is set via onboard dip switches during or post-installation, allowing customization for warm ambiance or cool tasks while maintaining CRI >83 for consistent color accuracy without tools or replacements.
Q: Is this light suitable for damp locations?
**A: The IP44 rating protects against water splashes and solids, making it appropriate for indoor humid areas like bathrooms or kitchens, but not fully outdoor; ensure proper sealing for optimal durability in moisture-prone environments.
Q: What dimming protocols are supported?
**A: The optional DALI interface enables 0-100% addressable dimming for smart systems, compatible with building automation; other variants like 0-10V are available, ensuring smooth, flicker-free adjustments without performance loss.
Q: Does it include motion sensing?
**A: Standard EM models focus on emergency backup, but motion sensor add-ons can be integrated for hybrid functionality; consult specs for corridor standby modes, enhancing energy savings in low-traffic zones.

Applications

Office Corridors and Stairwells: The 24W model’s 2640LM output with 120° beam ensures clear paths, while 3-hour emergency illuminates during drills; DALI dimming zones for occupancy, covering 25 sqm stretches efficiently to meet fire safety codes and cut idle power use.
Hospital Waiting Areas: Warm 2800K CCT creates calming glow via uniform diffusion, CRI >83 rendering skin tones naturally; IP44 handles sanitizers, with battery backup safeguarding patients during outages in 20 sqm lobbies for uninterrupted comfort.
School Classrooms and Halls: Scalable 18W fits low ceilings, cool 6000K boosting focus; emergency mode maintains visibility for assemblies, RoHS compliance supporting budgets, illuminating 22 sqm zones sustainably without glare or maintenance disruptions.
Retail Store Backrooms: Silver aluminum blends industrially, high-lumen efficiency replacing 2D fittings; motion-optional variants save energy in storage aisles, covering 18 sqm with soft light that highlights inventory safely during after-hours or blackouts.
Hotel Lobbies and Elevators: White finish enhances elegance, changeable CCT for mood-setting; 3-hour runtime ensures guest safety in power dips, with PF >0.9 minimizing grid load across 30 sqm entrances for premium, code-compliant hospitality.

Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.

LED Oyster Lights for Corridor Lighting

LED Oyster Lights for Corridor Lighting

More You're Caring

Package Information:

Model Gross Weight / Piece Inner Box Size Quantities / Carton Carton Size Gross Weight / Carton
ILED-OL-A18W  EM 1.25 KGS 335x335x110 mm 10 pieces 685x565x360mm 13.5 KGS
ILED-OL-A24W EM 1.8 KGS 415x415x120 mm 5 pieces 620x430x440mm 9.5 KGS
