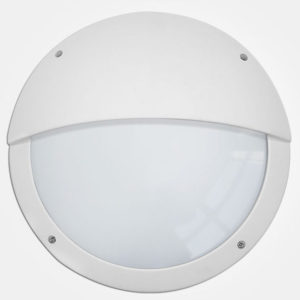

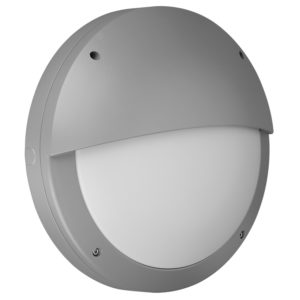

275mm 15W Eyelid LED Bulkhead Lights Aluminium Waterproof IP65 Emergency Sensor DALI
Highlights
→ High Lumen 110LM/W
→ Robust Cast Aluminum Body
→ Anti-UV Diffuser
→ Professional Powder Coated
→ Anti Salty,IP65,IK10
→ Uniform Soft Lighting
Diameter 275 Aluminium Waterproof IP65 18W Halfmoon Eyelid LED Bulkhead Light – Commercial Lighting Solution Key Parameters
| Model | Wattage/Lumen | Cover | Dimensions |
| ILED-BH-R275 | 15W / 1600LM
18W / 1800LM |
Plain | φ275x86mm |
| ILED-BH-R275-GL | 15W / 1600LM
18W / 1800LM |
Grille Crossing | φ275x86mm |
| ILED-BH-R275-EL | 15W / 1600LM
18W / 1800LM |
Eyelid Half Moon | φ275x86mm |
| ILED-BH-R275-TL | 15W / 1600LM
18W / 1800LM |
Crossing | φ275x86mm |
| Input | 220-240VAC or
110-277VAC |
LED Source | LumiLEDs |
| Watts | 15W/18W | Lumen Effective | 100-110LM/W |
| Lumen Output | 1500LM/1800LM | Size | φ275x86mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White / Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Q: What are the materials of this Eyelid LED Bulkhead Light?
A: This Eyelid LED Light uses Robust Die-Cast Aluminum Body. The diffuser is polycarbonate.
Q: What is the Power Factor of this Eyelid LED Bulkhead Light?
A: Its Power Factor is more than 0.9.
Q: What is the Lumen Effective of LED Bulkhead Lights in iLed?
A: Its Lumen Effective100LM/W.
Q: What is the IP Rated of this Eyelid LED Bulkhead Light?
A: The IP rated of this Bulkhead Light fixture is IP65, waterproof for outdoor and indoor use.
Q: What is the IK Rated of this Eyelid LED Bulkhead Lights?
A: The IK rated of this LED Bulkkhead Lights is IK10.
Q: Is the Diffuser of LED Bulkhead Lights yellowish in iLed?
A: No. its diffuser is Anti-UV.
Q: Can this Eyelid LED Bulkhead Light work with Motion Sensor?
A: Yes, it has motion sensor version
Q: Can this Eyelid LED Bulkhead Light work with Emergency Kits?
A: Yes, it has Emergency version, emergency watts is 2.5 W, duration is 3 Hours.
Q: Can this Eyelid LED Bulkhead Light work with DALI 2 System?
A: Yes, the DALI Eyelid LED bulkhead light can work with DALI 2 Lighting System.
Q: Does this Eyelid LED Bulkhead Light have Color Temperature Changeable?
A: Yes, it has CCT version, 3000K, 6000K and (Mixed 3000K+6000K).
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
Eyelid LED Bulkhead Light for Outdoor Lighting
Packaging
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
| 1.4KGs | 10 pcs | 60x54x32cm | 15.5KGS |
Diameter 275 Aluminium Waterproof IP65 18W Halfmoon Eyelid LED Bulkhead Light – Commercial Lighting Solution Key Parameters
| Model | Wattage/Lumen | Cover | Dimensions |
| ILED-BH-R275 | 15W / 1600LM
18W / 1800LM |
Plain | φ275x86mm |
| ILED-BH-R275-GL | 15W / 1600LM
18W / 1800LM |
Grille Crossing | φ275x86mm |
| ILED-BH-R275-EL | 15W / 1600LM
18W / 1800LM |
Eyelid Half Moon | φ275x86mm |
| ILED-BH-R275-TL | 15W / 1600LM
18W / 1800LM |
Crossing | φ275x86mm |
| Input | 220-240VAC or
110-277VAC |
LED Source | LumiLEDs |
| Watts | 15W/18W | Lumen Effective | 100-110LM/W |
| Lumen Output | 1500LM/1800LM | Size | φ275x86mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White / Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Q: What are the materials of this Eyelid LED Bulkhead Light?
A: This Eyelid LED Light uses Robust Die-Cast Aluminum Body. The diffuser is polycarbonate.
Q: What is the Power Factor of this Eyelid LED Bulkhead Light?
A: Its Power Factor is more than 0.9.
Q: What is the Lumen Effective of LED Bulkhead Lights in iLed?
A: Its Lumen Effective100LM/W.
Q: What is the IP Rated of this Eyelid LED Bulkhead Light?
A: The IP rated of this Bulkhead Light fixture is IP65, waterproof for outdoor and indoor use.
Q: What is the IK Rated of this Eyelid LED Bulkhead Lights?
A: The IK rated of this LED Bulkkhead Lights is IK10.
Q: Is the Diffuser of LED Bulkhead Lights yellowish in iLed?
A: No. its diffuser is Anti-UV.
Q: Can this Eyelid LED Bulkhead Light work with Motion Sensor?
A: Yes, it has motion sensor version
Q: Can this Eyelid LED Bulkhead Light work with Emergency Kits?
A: Yes, it has Emergency version, emergency watts is 2.5 W, duration is 3 Hours.
Q: Can this Eyelid LED Bulkhead Light work with DALI 2 System?
A: Yes, the DALI Eyelid LED bulkhead light can work with DALI 2 Lighting System.
Q: Does this Eyelid LED Bulkhead Light have Color Temperature Changeable?
A: Yes, it has CCT version, 3000K, 6000K and (Mixed 3000K+6000K).
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
Eyelid LED Bulkhead Light for Outdoor Lighting
Packaging
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
| 1.4KGs | 10 pcs | 60x54x32cm | 15.5KGS |
