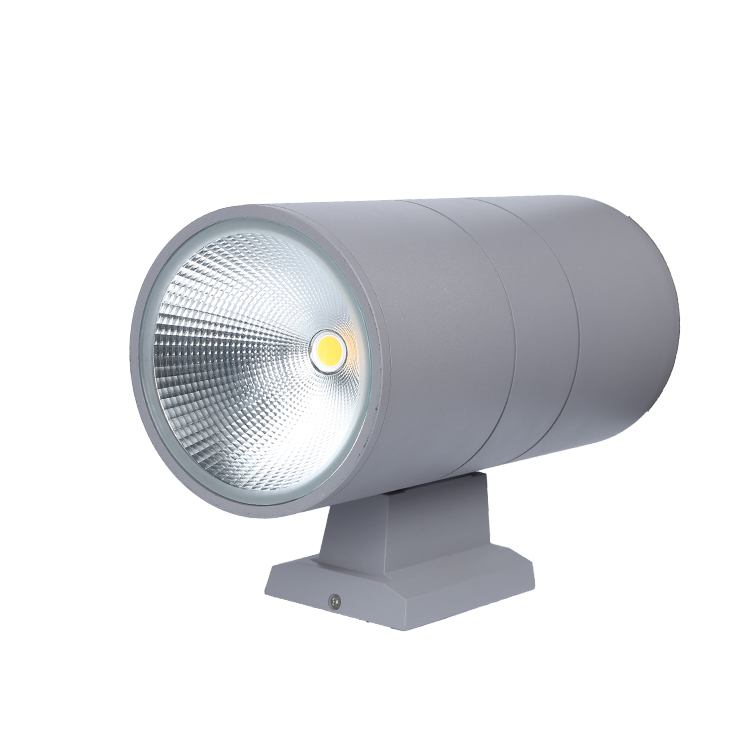

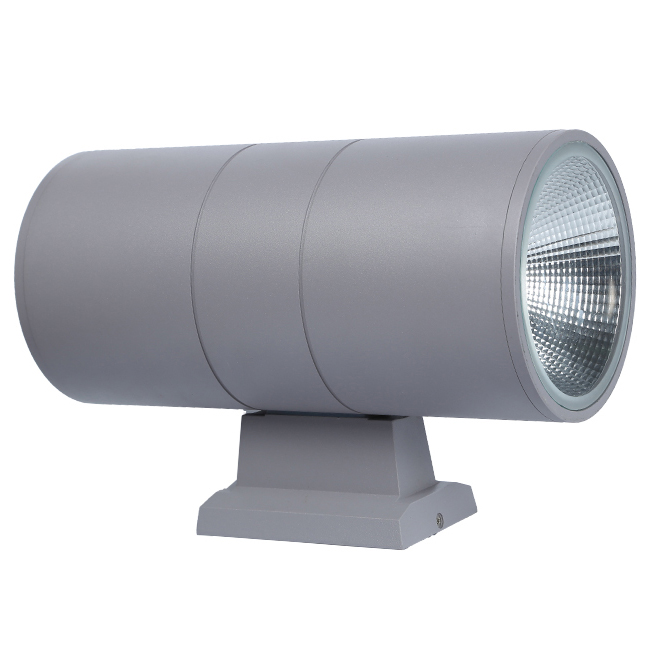

IP65 6W 2x3W Up&Down Exterior Decorative LED Wall Light Fixture ILED-BH-050 A

The ILED-BH-050 A is where the BH-050 up-and-down family starts: two 3W CREE COB beams, one up the wall and one down, from a φ64×160mm cylinder that all but disappears against the wall it sits on. It is the standard switched version of the range — no emergency circuit, no dimming — and at this size it is a marking light: door surrounds, gate pillars, garden walls and the small vertical features that a bigger fitting would swamp.

Five sizes in the family

The BH-050 series scales from small to large on one design. A — this fitting — starts at 3W per beam in φ64×160mm; B carries 6W per beam at φ90×260mm; C reaches 9W at φ108×300mm; D carries 18W per beam at φ145×300mm; and E tops the range at 24W per beam in a taller φ160×450mm body. All share the same cylindrical look, IP65 sealing and 60-degree lenses, so a project can match the fitting to each wall while keeping one silhouette across the building.

The up-and-down wash

Each beam runs a 3W CREE COB behind a 60-degree lens, one aiming up and one aiming down, with colour rendering above 92 — the same figure the big models in the family carry, so the smaller walls render as true as the large ones. The wash is deliberately modest: it marks the door, frames the pillar or lifts a garden wall out of the dark, without the output — or the glare — of a floodlight. The 60-degree lenses keep the light on the surface rather than throwing it out from the wall, so a fitting mounted beside a front door works without catching anyone in the eyes as they pass.

Build and finish

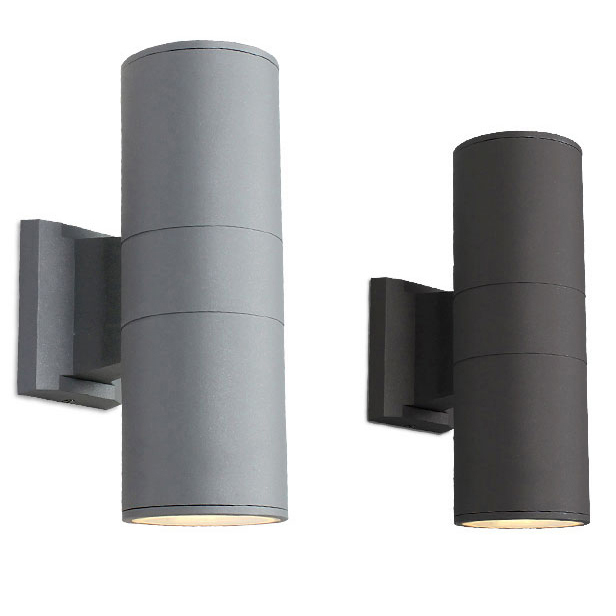

The body is aluminium with tempered glass lenses, sealed to IP65 against dust and water jets from any direction, so it mounts on exposed walls in the full weather. The finish is black, grey or white. At 64mm across and 160mm tall it sits quietly beside a door or on a pillar, which is the point of this size — the wall and the planting carry the view by day, and the fitting only announces itself after dark.

Electrical

The fixture runs on 220-240VAC or 120VAC, Class I wired, with the driver inside the body. Colour temperature is specified at order across 2800K to 6500K and locked in, with no switch to change it afterwards — warm 2800K–3000K suits timber doors and garden walls, cooler settings suit contemporary render.

What you need to supply

You need the wall fixings suited to the surface — masonry plugs for brick and block, suitable screws for timber framing — and a switched circuit with a protective earth for the Class I connection. An electrician makes the hardwired connection per local code. There is no lamp stock or spare driver to hold for the fitting, since the COB sources and the driver are integral, and no control gear to commission because the standard version switches with the circuit.

Where it gets used

House front doors and side doors are the bread-and-butter positions. Gate pillars and low garden walls take it where the double wash marks the route without lighting the whole garden. Courtyard niches, porch columns and the piers between fence panels fill out the rest of the order — anywhere a slim cylinder at eye height does the marking better than a bulkhead would. Because the whole family shares one silhouette, the A handles the small walls on a job while the B, C or D models cover the bigger ones, and the building still reads as one scheme.

Certifications and warranty

The ILED-BH-050 A carries SAA for Australia and New Zealand, CE for Europe, and RoHS. The warranty runs two to three years depending on the configuration — confirm the term when you order. The sealed body needs no routine work inside; a wipe of the glass faces during site maintenance keeps the wash even.

Why do buyers pick these over the alternatives? Here is what we hear from customers:

Small enough to disappear. At 64mm across and 160mm tall, the fitting marks the wall without reading as a fixture — which is exactly what entrance and garden walls want.

CRI above 92 at the smallest size. The same rendering figure as the big family models, so the smaller walls get the same true colour after dark.

IP65 on an exposed wall. Aluminium and tempered glass, sealed against dust and water jets, in black, grey or white to match the surface.

Simple to order and wire. The standard switched version with the driver inside the body and Class I wiring on 220-240VAC or 120VAC — nothing else to mount or commission.

One family, five sizes. Start with the A where the wall is small, and step up to the B, C, D or E models as the elevation grows, keeping one look throughout.

The ILED-BH-050 A is the smallest member of the BH-050 up-and-down family, for the walls and pillars where a compact double wash does the marking.

House front doors and side doors. The double wash frames the opening at the size a house entrance actually needs, without flooding the approach.

Gate pillars and fence piers. The 64mm cylinder suits the narrow faces of entrance pillars, marking the gate for arriving guests without throwing glare into the street or the neighbours’ windows.

Low garden walls and courtyard niches. A modest double wash that lifts the surface out of the dark without lighting the whole garden.

Porch columns and portico piers. The slim cylinder sits against the column face, and the beams draw it top to bottom at eye height.

Apartment and townhouse entries. Where the shared facade carries the bigger family models, the A covers the individual doors at the same silhouette.

Signage and house numbers. A tight pair of washes on a small surface, from a fitting that stays out of sight above or beside it, sized so the numbers and the lettering read without a hotspot in the middle.
