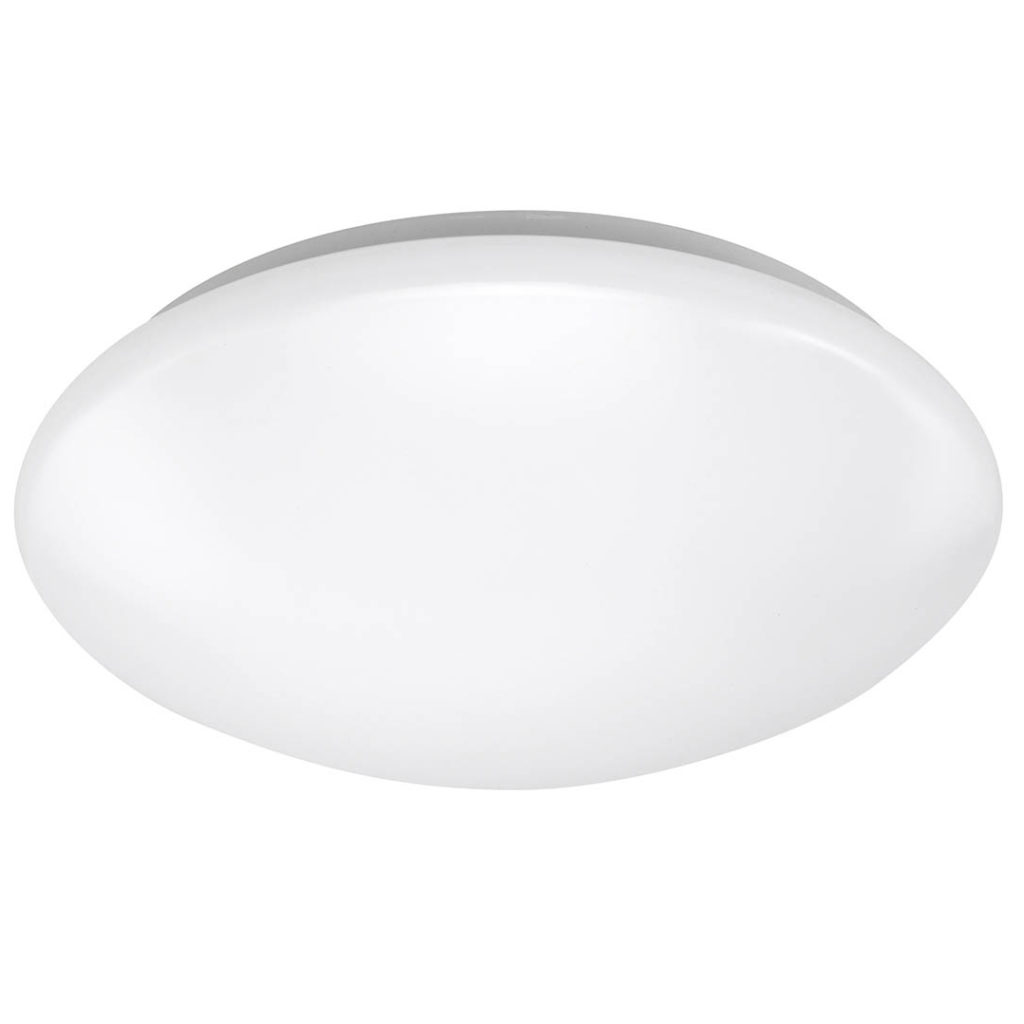

Large 500mm 800mm 1000mm Round LED Oyster Ceiling light Emergency Sensor DALI

Model: ILED-OL-B24W(500/800/1000) Categories , Tag

Large 500mm 800mm 1000mm Round LED Oyster Light Ceiling light adopt High Quality Driver and LumiLEDs  2835 LED with strong quality and high lumen output,great Color Index. Triac Dimmable , 0-10V Dimmable , DALI or Emergency functions are available.

Highlights

→ High Lumen 100LM/W

→ LumiLEDs LED

→ Soft and Uniform Lighting

→ DALI,Triac,0-10V Dimmable

→ Emergency

→ Motion Sensor,Standby Motion Sensor



iLed Wechat
certification
SKU ILED-OL-B24W(500/800/1000) Category: , Tags:

Model

Watt

Lumen

Size

Lens

IP Rated

Function

ILED-OL-B18W 300

12W

120LM

D300x90mm

120°

IP42

Normal

Triac Dimmable

0-10V Dimmable

DALI Dimmable

Emergency

ILED-OL-B18W 330

18W

1800LM

D330x95mm

ILED-OL-B24W 380

24W

2400LM

D380x110mm

ILED-OL-B24W 420

24W

2400LM

D420x115mm

ILED-OL-B24W 500

36W

2880LM

D500x120mm

ILED-OL-B24W 600

40W

3200LM

D600x125mm

ILED-OL-B24W 800

50W

4000LM

D800x170mm

ILED-OL-B24W 1000

60W

4800LM

D1000x250mm



Input

220V~240VAC/110-277VAC 50/60Hz

LED Source

LumiLEDs LEDs

Materials

Iron+ PMMA Diffuser

PF

>0.9

CCT

2800-7000K

CRI

>83

Electrical Classification

 Class I

IP Class

 IP42

Beam angle

120°

Body Color

White Painted

Watt

12W/18W/24W/36W/40W/50W/60W

Install Style

Surface Mounted

Warranty

3~5 years

Certification

CE&RoHS&SAA,TUV



Send Your Inquiry

Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.

Large 500mm 800mm 1000mm Round LED Ceiling Light for Corridor Lighting

Large 500mm 800mm 1000mm Round LED Ceiling Light for Corridor Lighting

Package Information:

Model

Carton Size

Quantities / Carton

Net Weight/Carton

Gross Weight / Carton

ILED-OL-B40W-500

640x510x520 mm

5 pieces

1.56KGS

9.7KGS



Specifications

Model

Watt

Lumen

Size

Lens

IP Rated

Function

ILED-OL-B18W 300

12W

120LM

D300x90mm

120°

IP42

Normal

Triac Dimmable

0-10V Dimmable

DALI Dimmable

Emergency

ILED-OL-B18W 330

18W

1800LM

D330x95mm

ILED-OL-B24W 380

24W

2400LM

D380x110mm

ILED-OL-B24W 420

24W

2400LM

D420x115mm

ILED-OL-B24W 500

36W

2880LM

D500x120mm

ILED-OL-B24W 600

40W

3200LM

D600x125mm

ILED-OL-B24W 800

50W

4000LM

D800x170mm

ILED-OL-B24W 1000

60W

4800LM

D1000x250mm



Input

220V~240VAC/110-277VAC 50/60Hz

LED Source

LumiLEDs LEDs

Materials

Iron+ PMMA Diffuser

PF

>0.9

CCT

2800-7000K

CRI

>83

Electrical Classification

 Class I

IP Class

 IP42

Beam angle

120°

Body Color

White Painted

Watt

12W/18W/24W/36W/40W/50W/60W

Install Style

Surface Mounted

Warranty

3~5 years

Certification

CE&RoHS&SAA,TUV



Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

Widely used in Schools, Shops, Nursing Homes, Offices, Hospitals, Meeting Rooms, Hotels, Corridors, Warehouses, Toilets, etc.

Large 500mm 800mm 1000mm Round LED Ceiling Light for Corridor Lighting

Large 500mm 800mm 1000mm Round LED Ceiling Light for Corridor Lighting

More You're Caring

Package Information:

Model

Carton Size

Quantities / Carton

Net Weight/Carton

Gross Weight / Carton

ILED-OL-B40W-500

640x510x520 mm

5 pieces

1.56KGS

9.7KGS
