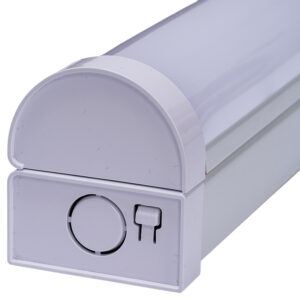

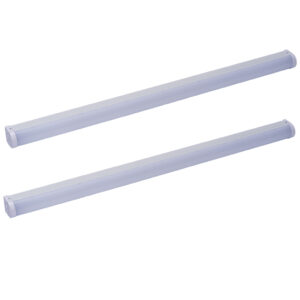

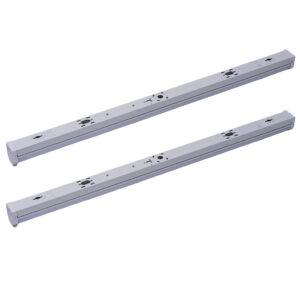

LED Batten Light 3CCT 1200mm 1500mm 20-60W DALI Emergency

3CCT Watts Selectable LED Batten Light, available in 1200mm (20W-40W) and 1500mm (40W-60W) variants. With a power factor (PF) greater than 0.9 and a flicker-free branded driver, this batten light guarantees reliable performance. It boasts a high CRI of 80, delivering accurate color rendering, while achieving an impressive luminous efficacy of up to 125LM/W. The light features an iron steel body and a PC diffuser, ensuring durability and even light distribution. Its easy linkable connection facilitates seamless installation. Additionally, it offers versatile control options, including DALI, 0-10V, and a 3-hour emergency backup option. Experience efficient illumination with the 3CCT Watts Selectable LED Batten Light, an ideal choice for various applications.

Highlights

→ High Lumen 125LM/W

→ Simple Installation, Easy Connection

→ Iron Steel Body and PC Diffuser

→ Surface Mounted or Pendant

→ 3CCT(3KK,5KK,4KK)

→DALI, 0-10V or Emergency for Option

iLed Wechat
certification
Model Watts Lumen Size CCT Selectable
ILED-TRP-120C 20-40W 2400-4800LM 1170x62x72mm 3KK,5KK, 4KK(Mixed)
ILED-TRP-150C 40-60W 4800-7200LM 1470x62x72mm 3KK,5KK, 4KK(Mixed)



Input 220-240VAC or 110-277VAC LED Source  LM80 LEDs
Materials Iron Steel Body+Iron Steel Heat Sink+PC Diffuser PF >0.9
Watts 20W-60W, Watts Selectable Lumen Effective 125LM/W
Color Temperature 3CCT (Tri Color Changeable) CRI >80
IP Rating IP21 Body Color White
Warranty 2-3 Years Certifications SAA CE ROHS







Send Your Inquiry

3CCT Watts Selectable LED Batten Light, a versatile lighting solution designed to meet various lighting needs. The model, ILED-TRP-120C/150C, offers the convenience of three CCT switchable options, allowing you to choose the desired color temperature. With an input range of 220-240VAC/110-277VAC, this batten light provides flexibility in power selection. The 1200mm size offers selectable wattage of 20W-40W, while the 1500mm size offers selectable wattage of 40W-60W. Available in two sizes, 1170x62mmx72mm and 1470x62x72mm, this LED batten light is suitable for various installation requirements. Equipped with LM80 CRI 80 LEDs, it ensures high-quality illumination with soft and even lighting. The built-in driver, sourced from reputable brands such as Lifud, Osram, or Tridonic, guarantees reliable performance, a power factor greater than 0.9, and flicker-free operation. The batten light features an iron steel body and a PC diffuser, ensuring durability and resistance to UV damage without yellowing over time. Installation options include surface-mounted or pendant configurations, providing flexibility for different setups. It is classified as electric class I, ensuring safety and compliance with electrical standards. The 3CCT Watts Selectable LED Batten Light offers control options such as DALI, 0-10V, or a 3-hour emergency backup, providing adaptability to various lighting scenarios. With an IK08 rating, it offers resistance against external impacts, making it suitable for demanding environments. With a lifespan of 50,000 hours, this LED batten light provides long-lasting and energy-efficient lighting. Ideal for educational, commercial, and retail applications, it offers a perfect lighting solution for both regular and emergency lighting needs. With features like simple installation, easy connection, and linkable capability, the 3CCT Watts Selectable LED Batten Light ensures a hassle-free setup. Experience reliable and efficient lighting with this versatile solution.

As a wholesale,electrical contractor or an installation company, why do I have to choose this product?

1. Versatility: The 3CCT switchable feature allows you to choose from three different color temperatures, providing flexibility to meet various lighting requirements and customer preferences. This versatility ensures that you can cater to a wide range of applications and create the desired lighting ambiance.

2. Energy Efficiency: With an impressive lumen efficacy of up to 125LM/W, this LED batten light offers high energy efficiency, helping your clients save on electricity costs while reducing their carbon footprint. The selectable wattage options also allow you to optimize power consumption based on specific lighting needs.

3. Reliability and Quality: The built-in quality brand driver from Lifud, Osram, or Tridonic ensures reliable performance and longevity. The flicker-free operation and power factor greater than 0.9 guarantee stable and consistent lighting, providing a comfortable and visually pleasing environment for end-users.

4. Durability and Safety: The iron steel body and PC diffuser construction offer durability and protection against environmental factors. The IK08 rating indicates resistance to external impacts, making it suitable for demanding applications. Moreover, being classified as electric class I ensures compliance with safety standards.

5. Easy Installation and Connection: The 3CCT Watts Selectable LED Batten Light features a simple installation process, allowing for quick and efficient setup. The easy linkable connection enables seamless integration of multiple fixtures, saving installation time and effort.

6. Control Options: The availability of control options such as DALI, 0-10V, and a 3-hour emergency backup further enhances flexibility and adaptability for different lighting scenarios. You can customize the lighting system based on client preferences or specific project requirements.

7. Wide Range of Applications: This LED batten light is suitable for a variety of applications, including educational institutions, commercial buildings, and retail spaces. It offers a perfect solution for both regular and emergency lighting needs, making it a versatile choice for your projects.

Q1: What does 3CCT mean?
A1: 3CCT refers to the capability of the light to switch between three different color temperatures, allowing you to choose the desired lighting ambiance.

Q2: What are the available wattage options for this LED batten light?
A2: The wattage options depend on the size of the light. For the 1200mm size, the selectable wattage ranges from 20W to 40W. For the 1500mm size, it ranges from 40W to 60W.

Q3: What are the dimensions of the two sizes available?
A3: The dimensions of the 1170x62mmx72mm size are 1170mm in length, 62mm in width, and 72mm in height. The dimensions of the 1470x62x72mm size are 1470mm in length, 62mm in width, and 72mm in height.

Q4: What is LM80 CRI 80 LEDs?
A4: LM80 CRI 80 refers to the LEDs used in the light, which have undergone LM80 testing to ensure their longevity and CRI (Color Rendering Index) of 80, ensuring accurate color representation.

Q5: Which brand drivers are built-in?
A5: The built-in driver of the LED batten light comes from quality brands such as Lifud, Osram, or Tridonic, ensuring reliable performance and longevity.

Q6: Is this light flicker-free?
A6: Yes, the LED batten light operates without flickering, providing stable and comfortable lighting.

Q7: What materials are used for the body and diffuser?
A7: The body of the light is made of iron steel, providing durability, while the diffuser is made of PC (polycarbonate), ensuring both strength and light diffusion.

Q8: How effective is the lumen output?
A8: The light offers an effective lumen output of up to 125LM/W, providing bright and efficient illumination.

Q9: Does the light resist yellowing over time?
A9: Yes, the LED batten light is designed to be anti-UV and does not yellow over time, maintaining its clarity and color consistency.

Q10: Can the light be installed on the surface or suspended from the ceiling?
A10: Yes, the installation options include surface-mounted or pendant configurations, providing flexibility based on the specific installation requirements.

Q11: What is the electric class of this light?
A11: The LED batten light is classified as electric class I, ensuring compliance with safety standards.

Q12: Are there any control options available?
A12: Yes, the light offers control options such as DALI, 0-10V, or a 3-hour emergency backup, providing flexibility and adaptability for different lighting scenarios.

Q13: What is the IK08 rating?
A13: The IK08 rating indicates that the light has a high degree of resistance against external impacts, making it suitable for demanding environments.

Q14: What is the expected lifespan of this LED batten light?
A14: The LED batten light has a lifespan of 50,000 hours, ensuring long-term usage and minimal maintenance.

Q15: Which applications are ideal for this light?
A15: This LED batten light is ideal for educational institutions, commercial buildings, retail spaces, and any application requiring both mains and emergency lighting solutions with ease of installation.

3CCT Watts Selectable LED Batten Lights are suitable for a wide range of applications due to their versatility and features. Some of the common areas where these lights can be used include:

1. Educational Institutions: Schools, universities, and other educational facilities can benefit from the 3CCT Watts Selectable LED Batten Lights. They provide efficient and comfortable lighting for classrooms, libraries, corridors, and other spaces, creating an optimal learning environment.

2. Commercial Buildings: Offices, conference rooms, reception areas, and retail stores can benefit from these lights. The selectable color temperature allows for customization based on the desired ambiance and the nature of the business. Additionally, the high energy efficiency helps reduce operational costs.

3. Retail Spaces: Shops, showrooms, and display areas can be enhanced with the 3CCT Watts Selectable LED Batten Lights. The high color rendering index (CRI) ensures accurate color representation of products, enhancing their visual appeal. The flicker-free operation creates a pleasant shopping experience for customers.

4. Healthcare Facilities: Hospitals, clinics, and healthcare centers require reliable and efficient lighting. The 3CCT Watts Selectable LED Batten Lights offer a suitable solution for patient rooms, waiting areas, corridors, and other healthcare spaces, providing comfortable and visually appealing illumination.

5. Residential Spaces: These lights can also be used in residential applications, such as kitchens, living rooms, and bedrooms. The selectable color temperature allows homeowners to adjust the lighting based on their preferences and activities. The flicker-free operation and high-quality light output enhance comfort and visual comfort at home.

6. Hospitality Industry: Hotels, restaurants, and bars can benefit from the versatility of the 3CCT Watts Selectable LED Batten Lights. They can create various lighting atmospheres to suit different areas and occasions, such as dining areas, lobbies, hotel rooms, and bars.

7. Other Commercial and Industrial Spaces: The lights can be used in warehouses, factories, parking garages, and other industrial or commercial environments that require reliable and energy-efficient lighting solutions.

1. Are these lights good for stock?
Sure, these lights are designed with CCT selectable (3KK,5KK Mix as 4KK), you don’t need to do 3 kinds of stock with 3 kinds of color temperature. The watts can be swichable by the dip switcher in the built-in driver. So it can used in different brightness required areas with one light. One light solves more SKU and quantities problem in stock.

2. We see some similar batten lights as iLed, do you think what differences as other batten lights?
This batten lights are developed by iLed and with ourself models. There are 3 key points as difference as others,
a. Iron Steel on the top part, better heat sink and long life. Others are PC or ABS diffuser.
b. Integrated 3CCT and Watts Selectable in one light, maximizing savings in inventory funds and management for customers.
c. Functions, these batten lights can be DALI, 0-10V and Emergency(Self Test) 3 Hours, better for suitable more projects requriements.
d. Hinge design for lamp body and lamp base.
Others designs this light as seperated two parts, when you install, you need to take off the lamp body which is not good for putting when you fix the luminaire base. iLed use hinge design, make the both parts as a whole. When you open the lighting body, you are not worried about where you put the lamp body.

3. How to install these batten lights?
These LED batten lights can enter cables from two ends, also can from buttom.
When you install them, you can unlock the base line by pushing the button in each end. (Please turn off the power at first)
Then, fix the base by tools , and connect the wires to the connector on the base.  Turn on the power checking it work well.
Finally, close the top part into the base again. It’s over, very simple. You can also ask the offical installation manuel from iLed’s sales team.

Specifications
Model Watts Lumen Size CCT Selectable
ILED-TRP-120C 20-40W 2400-4800LM 1170x62x72mm 3KK,5KK, 4KK(Mixed)
ILED-TRP-150C 40-60W 4800-7200LM 1470x62x72mm 3KK,5KK, 4KK(Mixed)



Input 220-240VAC or 110-277VAC LED Source  LM80 LEDs
Materials Iron Steel Body+Iron Steel Heat Sink+PC Diffuser PF >0.9
Watts 20W-60W, Watts Selectable Lumen Effective 125LM/W
Color Temperature 3CCT (Tri Color Changeable) CRI >80
IP Rating IP21 Body Color White
Warranty 2-3 Years Certifications SAA CE ROHS







Send Your Inquiry

Description
3CCT Watts Selectable LED Batten Light, a versatile lighting solution designed to meet various lighting needs. The model, ILED-TRP-120C/150C, offers the convenience of three CCT switchable options, allowing you to choose the desired color temperature. With an input range of 220-240VAC/110-277VAC, this batten light provides flexibility in power selection. The 1200mm size offers selectable wattage of 20W-40W, while the 1500mm size offers selectable wattage of 40W-60W. Available in two sizes, 1170x62mmx72mm and 1470x62x72mm, this LED batten light is suitable for various installation requirements. Equipped with LM80 CRI 80 LEDs, it ensures high-quality illumination with soft and even lighting. The built-in driver, sourced from reputable brands such as Lifud, Osram, or Tridonic, guarantees reliable performance, a power factor greater than 0.9, and flicker-free operation. The batten light features an iron steel body and a PC diffuser, ensuring durability and resistance to UV damage without yellowing over time. Installation options include surface-mounted or pendant configurations, providing flexibility for different setups. It is classified as electric class I, ensuring safety and compliance with electrical standards. The 3CCT Watts Selectable LED Batten Light offers control options such as DALI, 0-10V, or a 3-hour emergency backup, providing adaptability to various lighting scenarios. With an IK08 rating, it offers resistance against external impacts, making it suitable for demanding environments. With a lifespan of 50,000 hours, this LED batten light provides long-lasting and energy-efficient lighting. Ideal for educational, commercial, and retail applications, it offers a perfect lighting solution for both regular and emergency lighting needs. With features like simple installation, easy connection, and linkable capability, the 3CCT Watts Selectable LED Batten Light ensures a hassle-free setup. Experience reliable and efficient lighting with this versatile solution.
Why choose us?

As a wholesale,electrical contractor or an installation company, why do I have to choose this product?

1. Versatility: The 3CCT switchable feature allows you to choose from three different color temperatures, providing flexibility to meet various lighting requirements and customer preferences. This versatility ensures that you can cater to a wide range of applications and create the desired lighting ambiance.

2. Energy Efficiency: With an impressive lumen efficacy of up to 125LM/W, this LED batten light offers high energy efficiency, helping your clients save on electricity costs while reducing their carbon footprint. The selectable wattage options also allow you to optimize power consumption based on specific lighting needs.

3. Reliability and Quality: The built-in quality brand driver from Lifud, Osram, or Tridonic ensures reliable performance and longevity. The flicker-free operation and power factor greater than 0.9 guarantee stable and consistent lighting, providing a comfortable and visually pleasing environment for end-users.

4. Durability and Safety: The iron steel body and PC diffuser construction offer durability and protection against environmental factors. The IK08 rating indicates resistance to external impacts, making it suitable for demanding applications. Moreover, being classified as electric class I ensures compliance with safety standards.

5. Easy Installation and Connection: The 3CCT Watts Selectable LED Batten Light features a simple installation process, allowing for quick and efficient setup. The easy linkable connection enables seamless integration of multiple fixtures, saving installation time and effort.

6. Control Options: The availability of control options such as DALI, 0-10V, and a 3-hour emergency backup further enhances flexibility and adaptability for different lighting scenarios. You can customize the lighting system based on client preferences or specific project requirements.

7. Wide Range of Applications: This LED batten light is suitable for a variety of applications, including educational institutions, commercial buildings, and retail spaces. It offers a perfect solution for both regular and emergency lighting needs, making it a versatile choice for your projects.

Frequently Asked Questions

Q1: What does 3CCT mean?
A1: 3CCT refers to the capability of the light to switch between three different color temperatures, allowing you to choose the desired lighting ambiance.

Q2: What are the available wattage options for this LED batten light?
A2: The wattage options depend on the size of the light. For the 1200mm size, the selectable wattage ranges from 20W to 40W. For the 1500mm size, it ranges from 40W to 60W.

Q3: What are the dimensions of the two sizes available?
A3: The dimensions of the 1170x62mmx72mm size are 1170mm in length, 62mm in width, and 72mm in height. The dimensions of the 1470x62x72mm size are 1470mm in length, 62mm in width, and 72mm in height.

Q4: What is LM80 CRI 80 LEDs?
A4: LM80 CRI 80 refers to the LEDs used in the light, which have undergone LM80 testing to ensure their longevity and CRI (Color Rendering Index) of 80, ensuring accurate color representation.

Q5: Which brand drivers are built-in?
A5: The built-in driver of the LED batten light comes from quality brands such as Lifud, Osram, or Tridonic, ensuring reliable performance and longevity.

Q6: Is this light flicker-free?
A6: Yes, the LED batten light operates without flickering, providing stable and comfortable lighting.

Q7: What materials are used for the body and diffuser?
A7: The body of the light is made of iron steel, providing durability, while the diffuser is made of PC (polycarbonate), ensuring both strength and light diffusion.

Q8: How effective is the lumen output?
A8: The light offers an effective lumen output of up to 125LM/W, providing bright and efficient illumination.

Q9: Does the light resist yellowing over time?
A9: Yes, the LED batten light is designed to be anti-UV and does not yellow over time, maintaining its clarity and color consistency.

Q10: Can the light be installed on the surface or suspended from the ceiling?
A10: Yes, the installation options include surface-mounted or pendant configurations, providing flexibility based on the specific installation requirements.

Q11: What is the electric class of this light?
A11: The LED batten light is classified as electric class I, ensuring compliance with safety standards.

Q12: Are there any control options available?
A12: Yes, the light offers control options such as DALI, 0-10V, or a 3-hour emergency backup, providing flexibility and adaptability for different lighting scenarios.

Q13: What is the IK08 rating?
A13: The IK08 rating indicates that the light has a high degree of resistance against external impacts, making it suitable for demanding environments.

Q14: What is the expected lifespan of this LED batten light?
A14: The LED batten light has a lifespan of 50,000 hours, ensuring long-term usage and minimal maintenance.

Q15: Which applications are ideal for this light?
A15: This LED batten light is ideal for educational institutions, commercial buildings, retail spaces, and any application requiring both mains and emergency lighting solutions with ease of installation.

Applications

3CCT Watts Selectable LED Batten Lights are suitable for a wide range of applications due to their versatility and features. Some of the common areas where these lights can be used include:

1. Educational Institutions: Schools, universities, and other educational facilities can benefit from the 3CCT Watts Selectable LED Batten Lights. They provide efficient and comfortable lighting for classrooms, libraries, corridors, and other spaces, creating an optimal learning environment.

2. Commercial Buildings: Offices, conference rooms, reception areas, and retail stores can benefit from these lights. The selectable color temperature allows for customization based on the desired ambiance and the nature of the business. Additionally, the high energy efficiency helps reduce operational costs.

3. Retail Spaces: Shops, showrooms, and display areas can be enhanced with the 3CCT Watts Selectable LED Batten Lights. The high color rendering index (CRI) ensures accurate color representation of products, enhancing their visual appeal. The flicker-free operation creates a pleasant shopping experience for customers.

4. Healthcare Facilities: Hospitals, clinics, and healthcare centers require reliable and efficient lighting. The 3CCT Watts Selectable LED Batten Lights offer a suitable solution for patient rooms, waiting areas, corridors, and other healthcare spaces, providing comfortable and visually appealing illumination.

5. Residential Spaces: These lights can also be used in residential applications, such as kitchens, living rooms, and bedrooms. The selectable color temperature allows homeowners to adjust the lighting based on their preferences and activities. The flicker-free operation and high-quality light output enhance comfort and visual comfort at home.

6. Hospitality Industry: Hotels, restaurants, and bars can benefit from the versatility of the 3CCT Watts Selectable LED Batten Lights. They can create various lighting atmospheres to suit different areas and occasions, such as dining areas, lobbies, hotel rooms, and bars.

7. Other Commercial and Industrial Spaces: The lights can be used in warehouses, factories, parking garages, and other industrial or commercial environments that require reliable and energy-efficient lighting solutions.

More You're Caring

1. Are these lights good for stock?
Sure, these lights are designed with CCT selectable (3KK,5KK Mix as 4KK), you don’t need to do 3 kinds of stock with 3 kinds of color temperature. The watts can be swichable by the dip switcher in the built-in driver. So it can used in different brightness required areas with one light. One light solves more SKU and quantities problem in stock.

2. We see some similar batten lights as iLed, do you think what differences as other batten lights?
This batten lights are developed by iLed and with ourself models. There are 3 key points as difference as others,
a. Iron Steel on the top part, better heat sink and long life. Others are PC or ABS diffuser.
b. Integrated 3CCT and Watts Selectable in one light, maximizing savings in inventory funds and management for customers.
c. Functions, these batten lights can be DALI, 0-10V and Emergency(Self Test) 3 Hours, better for suitable more projects requriements.
d. Hinge design for lamp body and lamp base.
Others designs this light as seperated two parts, when you install, you need to take off the lamp body which is not good for putting when you fix the luminaire base. iLed use hinge design, make the both parts as a whole. When you open the lighting body, you are not worried about where you put the lamp body.

3. How to install these batten lights?
These LED batten lights can enter cables from two ends, also can from buttom.
When you install them, you can unlock the base line by pushing the button in each end. (Please turn off the power at first)
Then, fix the base by tools , and connect the wires to the connector on the base.  Turn on the power checking it work well.
Finally, close the top part into the base again. It’s over, very simple. You can also ask the offical installation manuel from iLed’s sales team.
