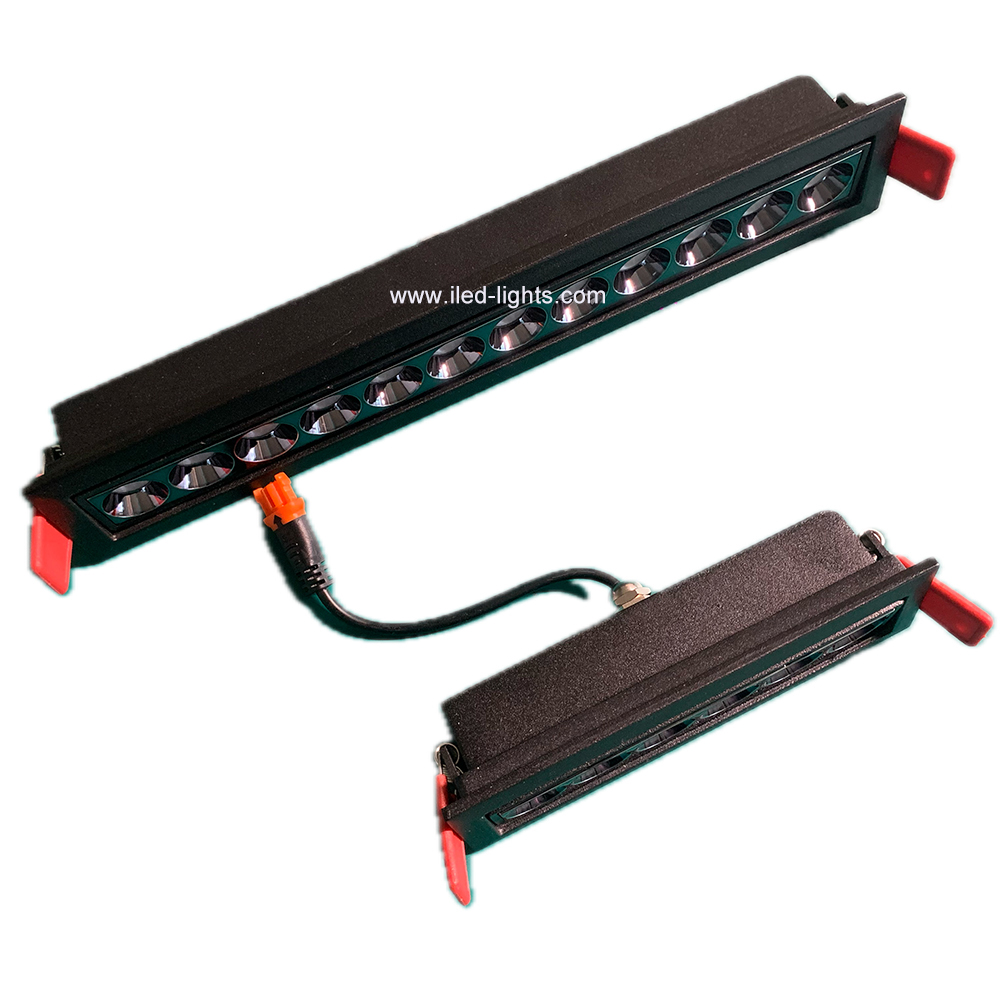

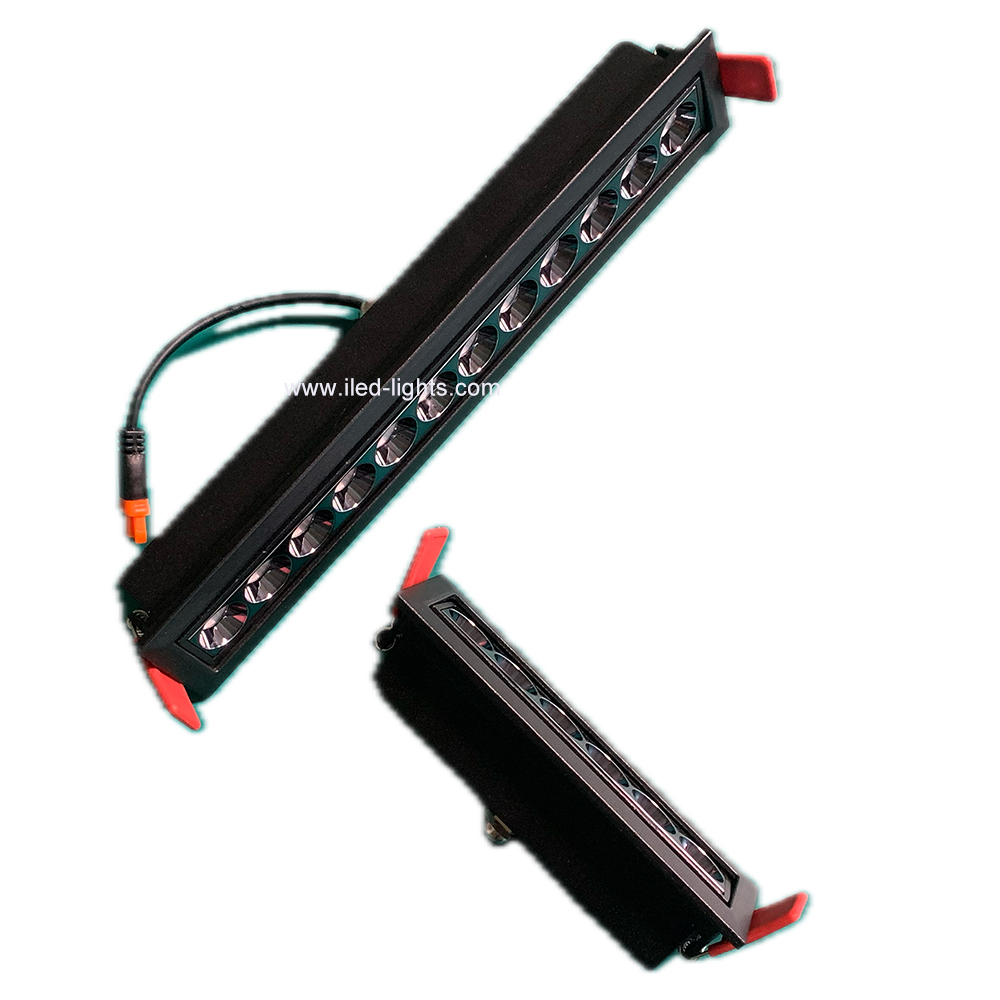

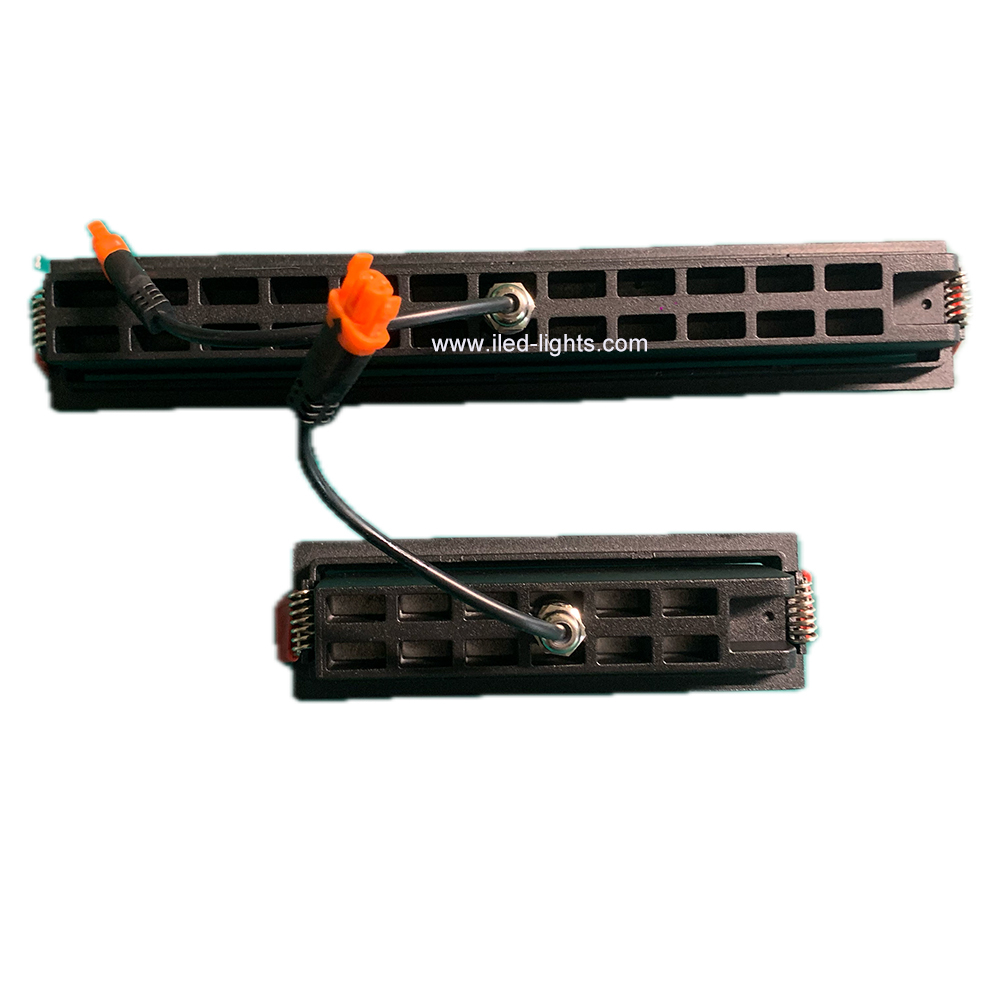

LED Linear Downlight UGR < 12 Tiltable 6-18W ILED-CL-B L1
This LED Linear Downlight can be recessed and tiltable, we can adjustable the direction of the lighting, it is easy lighting for different area spotlighting. They have both color white and black for option. Meanwhile, it has CRI 92 color index, Flicker free, Low Glare UGR<12 with high quality reflectors. The light is very soft with nice spots. Two size for 10W and 18W.
Highlights
→ High Lumen 80LM/W
→ LumiLEDs LED
→ Aluminum Body
→ DALI,Triac,0-10V Dimmable
→ Emergency
→ Low UGR,Anti Glare
|
Model |
Watt |
Lumen |
Size |
Cutout |
Lens |
|
ILED-CL2-B L1 |
6-8W |
480LM |
145*45*35mm |
135*32mm |
24° or 45° |
|
ILED-CL3-B L1 |
12-18W |
960LM |
265*45*35mm |
255*32mm |
24° or 45° |
Other Parameters
| Input | 110-277VAC or 220-240VAC | LED Source | LumiLEDs LED |
| Materials | Aluminum +PC | PF | >0.9 |
| CCT | 2700K-6500K | CRI | >92 |
| Lens | 15°,24°,38° | IP Class | IP42 |
| Body Color | White | Certification | TUV,CE,RoHS,SAA |
| Functions | DALI,Emergency,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
