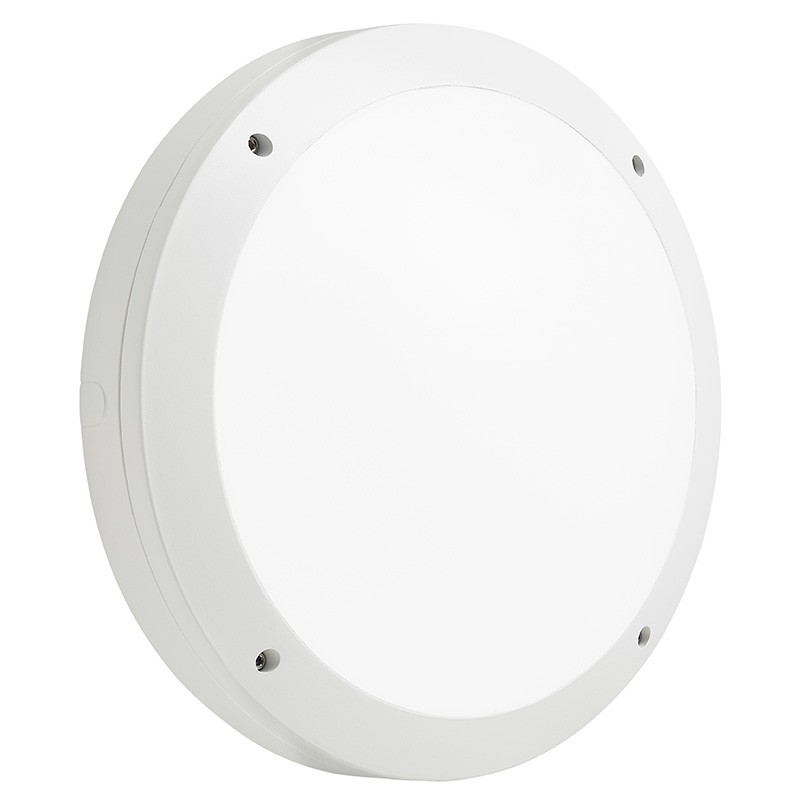

Max 360mm 20W LED Bulkhead Light Waterproof IK10
AmaxHublot is our largest size LED Bulkhead Light, its diameter is 360mm. Weatherproof IP65 IK10 LED Bulkhead Ceiling Light uses Robust Die-Cast Aluminum Body and Anti UV polycarbonate enclosure is vandal resistant and provides protection to IP65 and IK10. High Lumen and Stable quality makes it as the best solution lighting to walkways, tunnels, storage areas, car parks etc.
Highlights
→ High Lumen 100LM/W
→ Robust Cast Aluminum Body
→ Big Size 360mm
→ Professional Powder Coated
→ Anti Salty,IP65,IK10
→ Uniform Soft Lighting
|
Model |
Wattage/Lumen |
Cover |
Dimensions |
| ILED-BH-R3602 | 20W/1700LM | Plain | φ360x130mm |
| ILED-BH-R3602-GL | 20W/2000LM | Grille Crossing | φ360x130mm |
| ILED-BH-R3602-EL | 20W/2000LM | Eyelid Half Moon | φ360x130mm |
| ILED-BH-R3602-TL | 20W/2000LM | Crossing | φ360x130mm |
| Input | 220–240VAC / 110-277VAC | LED Source | LumiLEDs LED |
| Watts | 20W | Lumen Effective | 100LM/W |
| Lumen Output | 2000LM | Size | φ360x130mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White /Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
LED Bulkhead Lights for Corridor Lighting
LED Bulkhead Lights for Tunnel Lighting
Package Detail
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
|
3.2KGs |
5 pcs |
 70x39x39cm |
13KGS |
|
Model |
Wattage/Lumen |
Cover |
Dimensions |
| ILED-BH-R3602 | 20W/1700LM | Plain | φ360x130mm |
| ILED-BH-R3602-GL | 20W/2000LM | Grille Crossing | φ360x130mm |
| ILED-BH-R3602-EL | 20W/2000LM | Eyelid Half Moon | φ360x130mm |
| ILED-BH-R3602-TL | 20W/2000LM | Crossing | φ360x130mm |
| Input | 220–240VAC / 110-277VAC | LED Source | LumiLEDs LED |
| Watts | 20W | Lumen Effective | 100LM/W |
| Lumen Output | 2000LM | Size | φ360x130mm |
| Materials | Aluminum+PC | PF | >0.9 |
| CCT | 2800-6500K | CRI | >82 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam Angel | 120° | Body Color | White /Black /
Silver Gray |
| Warranty | 3-5 years | Certifications | SAA,CE,RoHS |
Send Your Inquiry
Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.
LED Bulkhead Lights for Corridor Lighting
LED Bulkhead Lights for Tunnel Lighting
Package Detail
| Net Weight | Quantites /Carton | Carton Size | Gross Weight/Carton |
|
3.2KGs |
5 pcs |
 70x39x39cm |
13KGS |
