RGB Controller Dimmer with 2.4G Remoter 3 Zone ILED-DM2 C

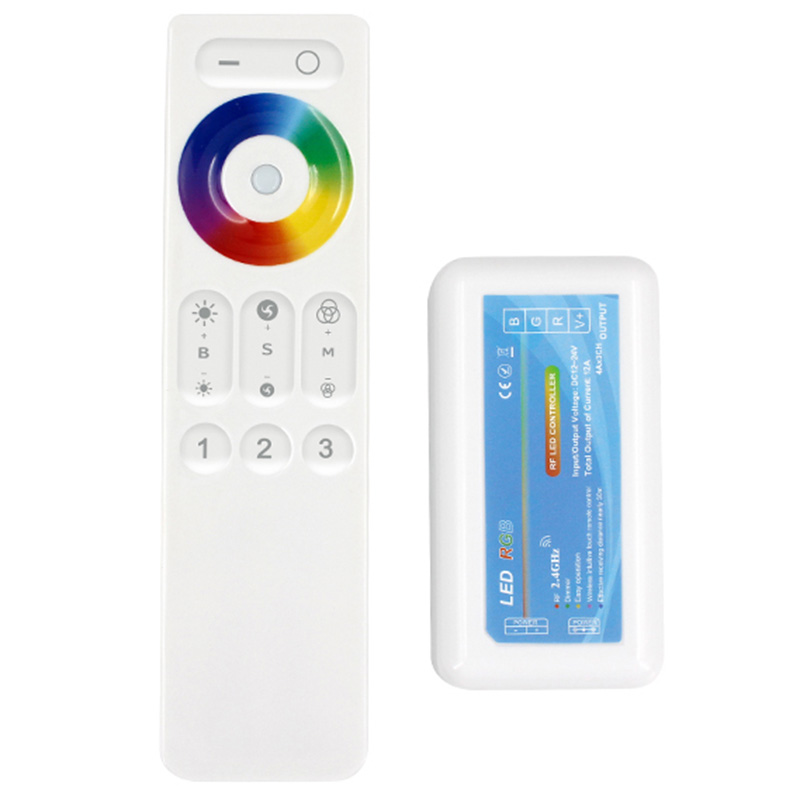

ILED-DM2 C is a RGB color wireless 12V-24VDC controller with a 2.4G remoter. The input is DC 12-24V and has 3 channels for loading RGB LED lights. It supports 3 zones.Very good for making dimmable to SMD RGB led strip lights and RGB COB led strip light. Professional packaging is good for wholesales and retail.
Highlights
→ RF 2.4G
→ 12VDC 24VDC

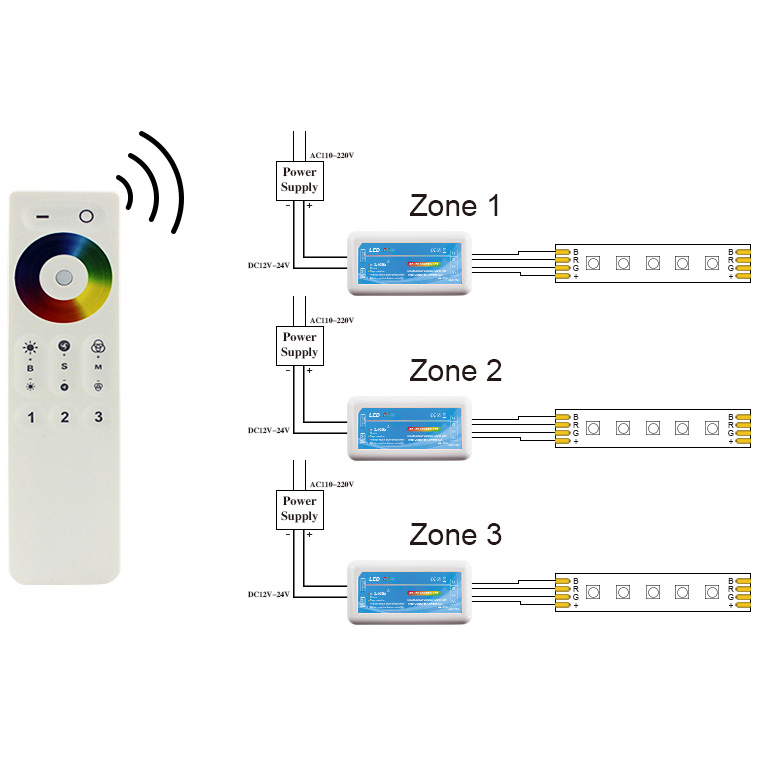

→ 3 Zones
→ Dimmable and RGB
→ Stable and Flicker Free
→ Easy Connection
| Model NO.:Â | ILED-DM2 C | Zones | 3 Zone |
| Function | Dimmable and RGB | Input Voltage | 12-24V DC |

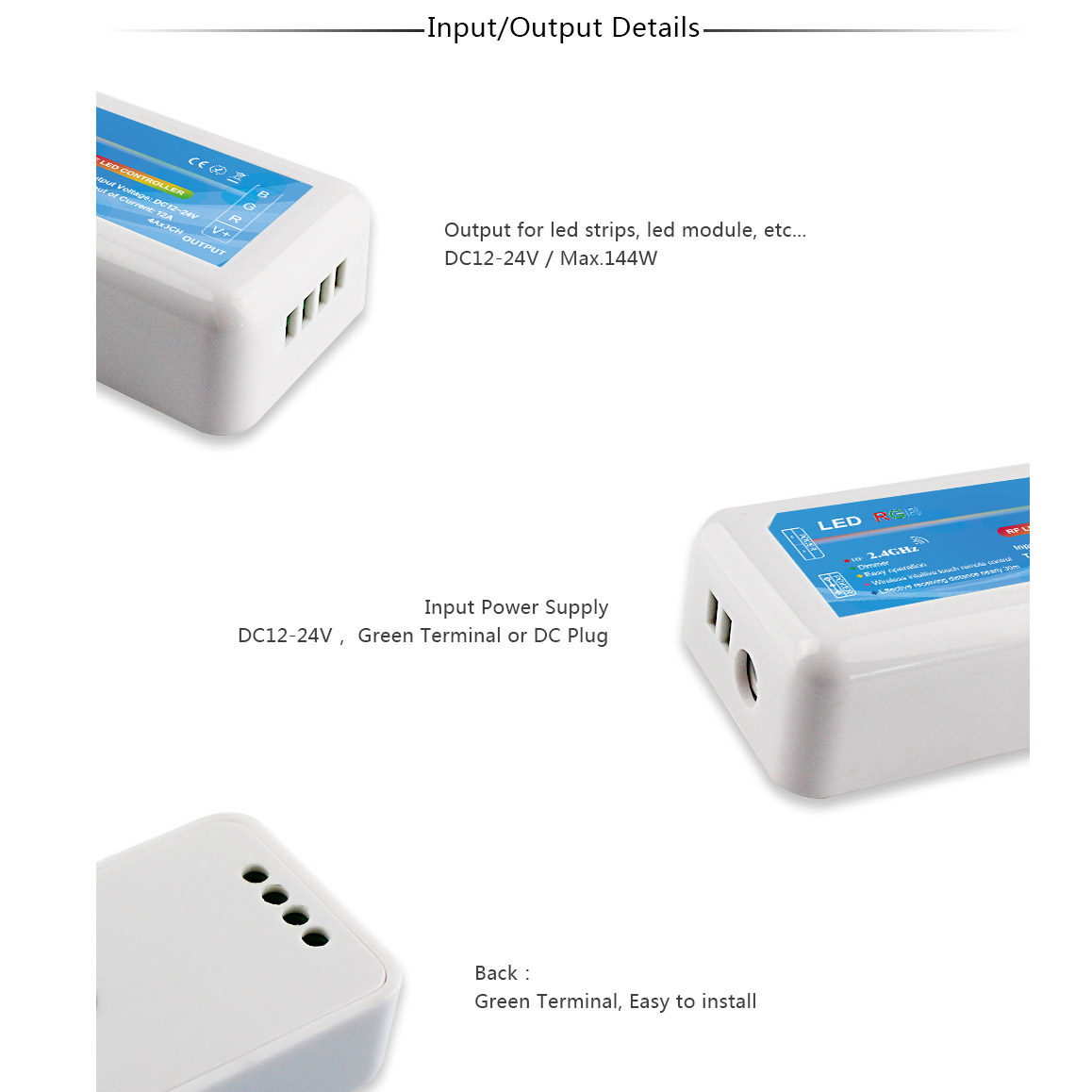

| Input Terminal | DC2.1 and Screw terminal | Output | 4A*3CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Send Your Inquiry

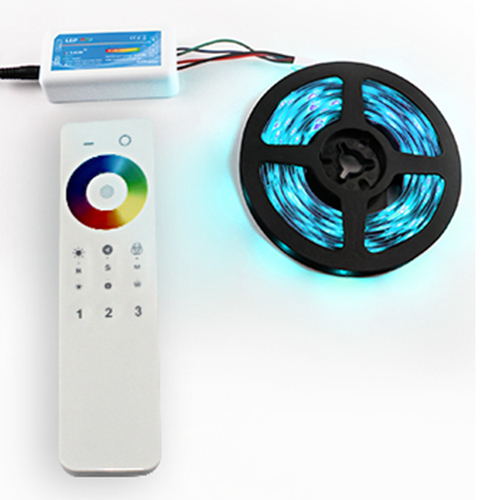

Utilized for RGB color LED lights, enabling wireless control over color selection, brightness adjustment, and dynamic lighting effects. It finds applications in various settings, including home decor, entertainment venues, and architectural lighting. With its wireless functionality, users can effortlessly change colors, create custom lighting scenes, and synchronize multiple RGB LED lights simultaneously, enhancing ambiance and creating visually stunning environments.
RGB Controller Dimmer for RGB Strip Lights
| Model NO.:Â | ILED-DM2 C | Zones | 3 Zone |
| Function | Dimmable and RGB | Input Voltage | 12-24V DC |
| Input Terminal | DC2.1 and Screw terminal | Output | 4A*3CH |
| Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
| Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
| Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
| Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
| Packaging | Colorful Box or Skin Packing, any OEM can be supported. | ||
Send Your Inquiry
Utilized for RGB color LED lights, enabling wireless control over color selection, brightness adjustment, and dynamic lighting effects. It finds applications in various settings, including home decor, entertainment venues, and architectural lighting. With its wireless functionality, users can effortlessly change colors, create custom lighting scenes, and synchronize multiple RGB LED lights simultaneously, enhancing ambiance and creating visually stunning environments.
RGB Controller Dimmer for RGB Strip Lights
