RGBW Controller Dimmer 12-24V LED with 2.4G Remoter 4 Channels 3 Zone ILED-DM2 D

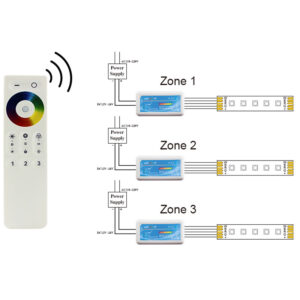

ILED-DM2 D is a RGB color and White LED wireless 12V-24VDC controller with a 2.4G remoter. The input is DC 12-24V and has 4 channels for loading RGBW LED lights. It supports 3 zones.Very good for making dimmable to SMD RGBW led strip lights and RGBW COB led strip light. Professional packaging is good for wholesales and retail.
Highlights
→ RF 2.4G
→ 12VDC 24VDC
→ 3 Zones
→ Dimmable and RGBW
→ Stable and Flicker Free
→ Easy Connection
![certification](https://iled-lights.com/wp-content/uploads/2023/08/certs.png)
Model NO.: | ILED-DM2 D | Zones | 3 Zone |
Function | Dimmable and RGBW | Input Voltage | 12-24V DC |

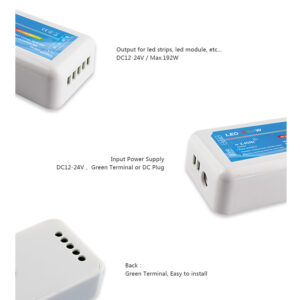

Input Terminal | DC2.1 and Screw terminal | Output | 4A*4CH |
Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
Packaging | Colorful Box or Skin Packing, any OEM can be supported. |
Send Your Inquiry
specifically designed for RGBW color LED lights, offering wireless control over color blending, brightness control, and various dynamic lighting modes. It is commonly used in applications such as home lighting, stage lighting, and commercial lighting installations. With the RF 2.4G controller, users can effortlessly switch between different color combinations, adjust the intensity of each color channel, and create vibrant lighting effects that incorporate both RGB and white LEDs, providing versatile and customizable lighting options for a wide range of settings.
![RGBW Controller Dimmer](https://iled-lights.com/wp-content/uploads/2023/10/ILED-DM2-D-3.jpg)

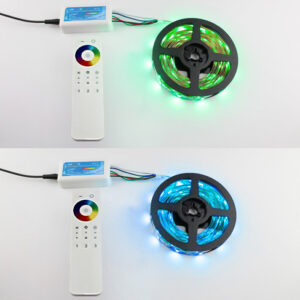

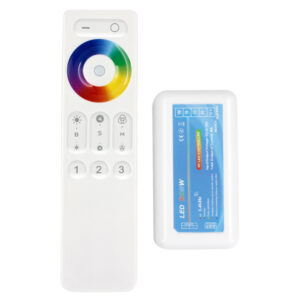

ILED-DM2 D RGBW Controller Dimmer for RGBW LED Strip Light
Model NO.: | ILED-DM2 D | Zones | 3 Zone |
Function | Dimmable and RGBW | Input Voltage | 12-24V DC |
Input Terminal | DC2.1 and Screw terminal | Output | 4A*4CH |
Max Power Load | 12V=144W, 24V=288W | Dimming | 0-100% |
Remoter Frequency | RF 2.4GHz or Push Dim | Operate Temp. | -30°C – +55°C |
Receiver Dimension | L85*W45*H23mm | Receiver Weight | 45g |
Remoter Dimension | L150*W40*H13mm | Remoter Weight | 60g |
Packaging | Colorful Box or Skin Packing, any OEM can be supported. |
Send Your Inquiry
specifically designed for RGBW color LED lights, offering wireless control over color blending, brightness control, and various dynamic lighting modes. It is commonly used in applications such as home lighting, stage lighting, and commercial lighting installations. With the RF 2.4G controller, users can effortlessly switch between different color combinations, adjust the intensity of each color channel, and create vibrant lighting effects that incorporate both RGB and white LEDs, providing versatile and customizable lighting options for a wide range of settings.
![RGBW Controller Dimmer](https://iled-lights.com/wp-content/uploads/2023/10/ILED-DM2-D-3.jpg)
ILED-DM2 D RGBW Controller Dimmer for RGBW LED Strip Light
