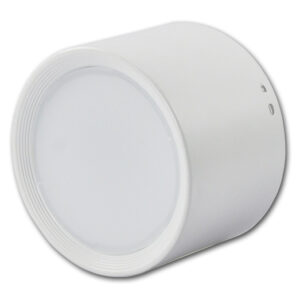

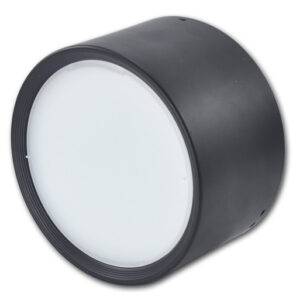

Surface Mounted SMD LED Downlight 9-30W ILED-DL-B S1
iLed produces high quality surface mounted LED downlight with super brightness LM80 LEDs and high power factor flicker free LED driver. The watts is 10W to 40W, and can be triac dimmable, 0-10V dimmable and DALI Dimmable.
Highlights
→ High Lumen 100LM/W
→ LM80 LED
→ Aluminum Body
→ DALI,Triac,0-10V Dimmable
|
Model |
Watts |
Lumen |
Size |
Beam angle |
IP Class |
Function |
| ILED-DL3-B S1 |
9W |
900LM |
Ф100x68mm |
120° |
IP42 or IP44 |
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable
|
|
ILED-DL4-B S1 |
12W |
1200LM |
Ф100x80mm |
120°
|
IP42 or IP44 |
|
|
ILED-DL6-B S1 |
24W |
2400LM |
Ф170x100mm |
120°
|
IP42 or IP44 |
|
|
ILED-DL8-B S1 |
30W |
3000LM |
Ф212x120mm |
120°
|
IP42 or IP44 |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 LED |
| Materials | Aluminum+PC | PF | >0.9 |
| Watts | 9W-30W | Lumen Effective | 100LM/W |
| Color Temperature | 2800-6000K | CRI | >82 |
| Electrical Classification | Class I | IP Rating | IP42 or IP44 |
| Beam Angel | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
| Functions | DALI,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
Surface Mounted LED Downlights
|
Model |
Watts |
Lumen |
Size |
Beam angle |
IP Class |
Function |
| ILED-DL3-B S1 |
9W |
900LM |
Ф100x68mm |
120° |
IP42 or IP44 |
Normal Triac Dimmable 0-10V Dimmable DALI Dimmable
|
|
ILED-DL4-B S1 |
12W |
1200LM |
Ф100x80mm |
120°
|
IP42 or IP44 |
|
|
ILED-DL6-B S1 |
24W |
2400LM |
Ф170x100mm |
120°
|
IP42 or IP44 |
|
|
ILED-DL8-B S1 |
30W |
3000LM |
Ф212x120mm |
120°
|
IP42 or IP44 |
| Input | 220-240VAC/110-277VAC | LED Source | LM80 LED |
| Materials | Aluminum+PC | PF | >0.9 |
| Watts | 9W-30W | Lumen Effective | 100LM/W |
| Color Temperature | 2800-6000K | CRI | >82 |
| Electrical Classification | Class I | IP Rating | IP42 or IP44 |
| Beam Angel | 120° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
| Functions | DALI,Triac Dimmable,0-10V Dimmable | ||
Send Your Inquiry
High-quality recessed LED downlights are commonly used in residential, commercial, and hospitality settings. They are ideal for providing general illumination in areas such as living rooms, bedrooms, kitchens, offices, lobbies, and hotel rooms. Recessed downlights offer a sleek and minimalist appearance, blending seamlessly into the ceiling while delivering efficient and uniform lighting. They can be used to highlight specific areas or objects, create ambient lighting, or provide task lighting. With their energy efficiency, long lifespan, and adjustable beam angles, high-quality recessed LED downlights offer a versatile and aesthetically pleasing lighting solution for a range of indoor spaces.
Surface Mounted LED Downlights
