Halo LED Bulkhead Light Round 300mm Lighting Waterproof IP65 20W Emergency Sensor DALI

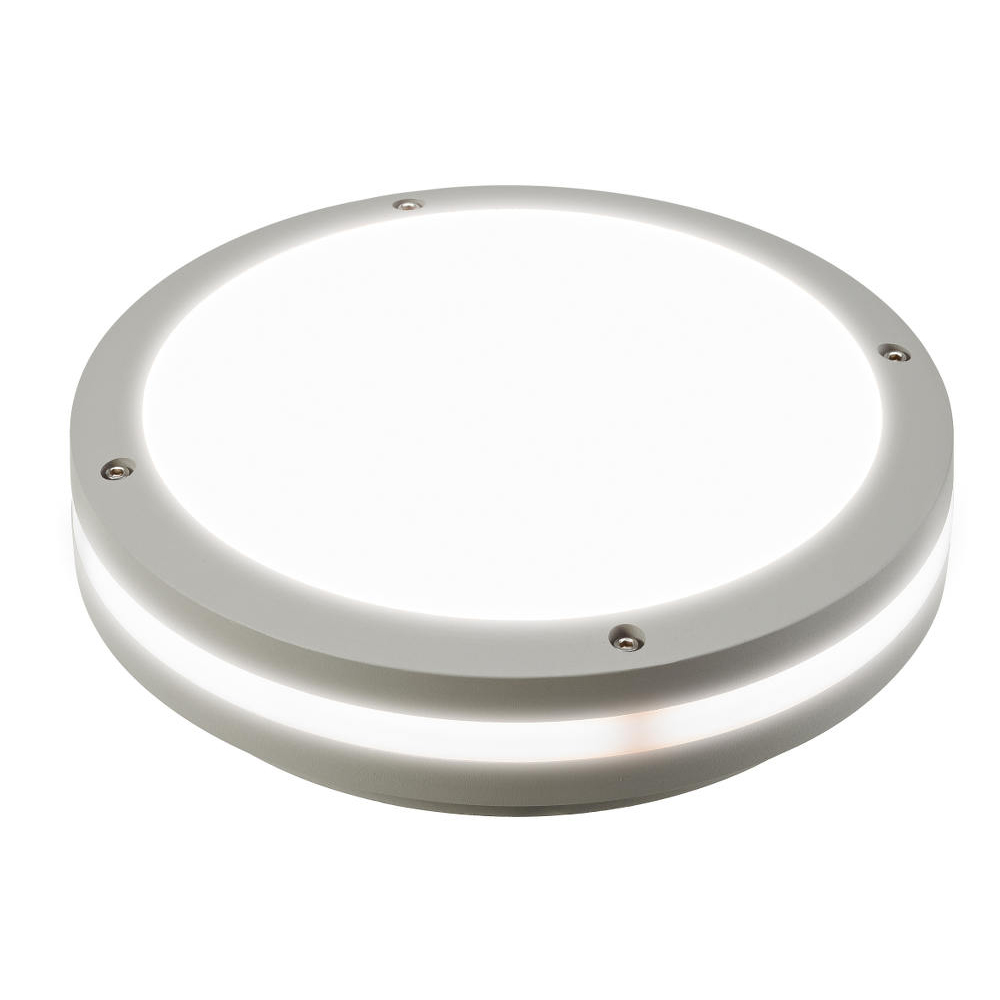

BH-R20W Bulkhead Light is a circle ceiling or wall mounted amenity lighting fixture with halo lighting effective, which uses robust die cast aluminium body and polycarbonate diffuser by sealing to IP65, the luminaire is not only waterproof also can be IK10 which is ideal for interior and exterior of park lighting, corridor lighting, exterior lighting and amenity lighting.
LumiLEDs LM80 LED source and famous brand LED driver(VS,Tridonic,Osram or Philips) provides high output lumen and stable long life for this lamp. iLed also designs it as more functional for projects requirements, including DALI, motion sensor, standy motion sensor and self-test emergency 3 hours.
Highlights
→ High Lumen Effective 110LM/W
→ Robust Cast Aluminum Body
→ Anti-UV Diffuser
→ Professional Powder Coated
→ Anti Salty,IP65,IK10
| Model | Wattage | Lumen Output | Dimensions |
| ILED-BH-R20W | 20W | 2200LM (110LM / W) | Ф300x90mm |
| ILED-BH-R30W | 30W | 3300LM (110LM / W) | Ф300x90mm |
| Input | 220V~240VAC/110-277VAC 50/60Hz | LED Source | LumiLEDs LM80 LEDs |
| Materials | Dia Dast Aluminum+ PC | PF | >0.9 |
| CCT | 2800-7000K | CRI | >80 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam angle | 120° | Body Color | White, Black or Gray Painted |
| Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. Versatility: The Halo LED Bulkhead Light is suitable for both indoor and outdoor applications, making it a versatile lighting solution. Whether you need lighting for residential, commercial, or industrial spaces, this product can meet your requirements.
2. High-Quality Illumination: With a lumen efficacy of up to 110LM/W and a CRI greater than 82, this light ensures bright and accurate lighting. It provides soft and even illumination, creating a comfortable and visually appealing environment.
3. Durability and Protection: The bulkhead light is constructed with a die-cast aluminum body and a PC diffuser, ensuring durability and resistance to impact. It is rated IP65 waterproof, protecting it from dust and water ingress. Additionally, it is designed to resist UV damage and salt corrosion, making it suitable for various challenging environments.
4. Energy Efficiency: The Halo LED Bulkhead Light utilizes LED technology and offers a power factor greater than 0.9. This ensures efficient energy consumption, reducing your electricity costs while minimizing environmental impact.
5. Customization Options: You have the flexibility to choose from different driver brands such as BOKE, Osram, Tridonic, VS, or TCI, allowing you to select a trusted and reliable option. Additionally, the light offers optional features like DALI compatibility, motion sensors, and emergency lighting, providing enhanced functionality and convenience.
6. Easy Installation: The Halo LED Bulkhead Light can be surface-mounted or pendant-installed, offering flexibility and ease of installation. Its compact size and electric Class I operation further simplify the installation process.
By choosing the Halo LED Bulkhead Light Round 300mm, you can benefit from its versatility, high-quality illumination, durability, energy efficiency, customization options, and easy installation. It is a reliable and cost-effective lighting solution that can meet your specific lighting requirements while providing long-lasting performance.
Q1: What is the input voltage range supported by the Halo LED Bulkhead Light?
A1: The input voltage range is 220-240VAC or 110-277VAC, providing flexibility for different electrical systems.
Q2: Can I switch between different color temperatures with this light?
A2: Yes, the Halo LED Bulkhead Light offers 3CCT switchable options, allowing you to choose between different color temperatures.
Q3: What is the power consumption of this light?
A3: The power consumption is 20W, ensuring energy-efficient operation.
Q4: Which LED source is used in this light?
A4: The light utilizes LumiLEDs LM80 2835 LED source, ensuring high-quality illumination and long-lasting performance.
Q5: Are there options for different driver brands?
A5: Yes, you can choose from reputable driver brands such as BOKE, Osram, Tridonic, VS, or TCI for optimum performance and compatibility.
Q6: Does the light have a high power factor?
A6: Yes, the Halo LED Bulkhead Light has a power factor greater than 0.9, ensuring efficient energy consumption.
Q7: Is the light flicker-free?
A7: Yes, the light is designed to be flicker-free, providing stable and comfortable illumination.
Q8: What materials are used in the construction of the light?
A8: The light features a die-cast aluminum body and a PC diffuser, ensuring durability and impact resistance.
Q9: What is the lumen efficacy of the light?
A9: The Halo LED Bulkhead Light offers lumen efficacy of up to 110LM/W, providing bright and efficient illumination.
Q10: Does the light have a high color rendering index (CRI)?
A10: Yes, the light has a CRI greater than 82, ensuring accurate color representation without any blue light hazard.
Q11: Is the light suitable for outdoor use?
A11: Yes, the light is waterproof with an IP65 rating, making it suitable for outdoor environments.
Q12: Can the light withstand impact?
A12: Yes, the Halo LED Bulkhead Light has an IK10 impact resistance rating, ensuring durability and protection against physical impact.
Q13: Is the light resistant to UV damage and salt corrosion?
A13: Yes, the light is designed to be anti-UV and anti-salty, making it suitable for coastal or outdoor applications.
Q14: What are the size dimensions of the light?
A14: The light has a diameter of 300mm and a height of 90mm, offering a compact and versatile design.
Q15: Can the light be surface-mounted or pendant-installed?
A15: Yes, the Halo LED Bulkhead Light provides options for both surface-mounted and pendant installation, offering installation flexibility.Pendant is just for indoor.
BH-R20W Bulkhead Light is a circle ceiling or wall mounted amenity lighting fixture with halo lighting effective, which uses robust die cast aluminium body and polycarbonate diffuser by sealing to IP65, the luminaire is not only waterproof also can be IK10 which is ideal for interior and exterior of park lighting, corridor lighting, exterior lighting and amenity lighting.
LumiLEDs LM80 LED source and famous brand LED driver(VS,Tridonic,Osram or Philips) provides high output lumen and stable long life for this lamp. iLed also designs it as more functional for projects requirements, including DALI, motion sensor, standy motion sensor and self-test emergency 3 hours.
LED Bulkhead Light for Outdoor Lighting
1. Can we install this bulkhead light outside wall?
Yes, you can.
2. Do we need to install them with earth wire?
Yes, it is electrical class I, must connec the earth wire.
3. Is it Yellowlish?
During 3 years, it is not yellowish because we use anti UV diffuser.
4. Can you emergency bulkhead light be self-test?
Yes, it is self test.
| Model | Wattage | Lumen Output | Dimensions |
| ILED-BH-R20W | 20W | 2200LM (110LM / W) | Ф300x90mm |
| ILED-BH-R30W | 30W | 3300LM (110LM / W) | Ф300x90mm |
| Input | 220V~240VAC/110-277VAC 50/60Hz | LED Source | LumiLEDs LM80 LEDs |
| Materials | Dia Dast Aluminum+ PC | PF | >0.9 |
| CCT | 2800-7000K | CRI | >80 |
| Electrical Classification | Class I | IP Class | IP65 |
| Beam angle | 120° | Body Color | White, Black or Gray Painted |
| Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |
Send Your Inquiry
1. Versatility: The Halo LED Bulkhead Light is suitable for both indoor and outdoor applications, making it a versatile lighting solution. Whether you need lighting for residential, commercial, or industrial spaces, this product can meet your requirements.
2. High-Quality Illumination: With a lumen efficacy of up to 110LM/W and a CRI greater than 82, this light ensures bright and accurate lighting. It provides soft and even illumination, creating a comfortable and visually appealing environment.
3. Durability and Protection: The bulkhead light is constructed with a die-cast aluminum body and a PC diffuser, ensuring durability and resistance to impact. It is rated IP65 waterproof, protecting it from dust and water ingress. Additionally, it is designed to resist UV damage and salt corrosion, making it suitable for various challenging environments.
4. Energy Efficiency: The Halo LED Bulkhead Light utilizes LED technology and offers a power factor greater than 0.9. This ensures efficient energy consumption, reducing your electricity costs while minimizing environmental impact.
5. Customization Options: You have the flexibility to choose from different driver brands such as BOKE, Osram, Tridonic, VS, or TCI, allowing you to select a trusted and reliable option. Additionally, the light offers optional features like DALI compatibility, motion sensors, and emergency lighting, providing enhanced functionality and convenience.
6. Easy Installation: The Halo LED Bulkhead Light can be surface-mounted or pendant-installed, offering flexibility and ease of installation. Its compact size and electric Class I operation further simplify the installation process.
By choosing the Halo LED Bulkhead Light Round 300mm, you can benefit from its versatility, high-quality illumination, durability, energy efficiency, customization options, and easy installation. It is a reliable and cost-effective lighting solution that can meet your specific lighting requirements while providing long-lasting performance.
Q1: What is the input voltage range supported by the Halo LED Bulkhead Light?
A1: The input voltage range is 220-240VAC or 110-277VAC, providing flexibility for different electrical systems.
Q2: Can I switch between different color temperatures with this light?
A2: Yes, the Halo LED Bulkhead Light offers 3CCT switchable options, allowing you to choose between different color temperatures.
Q3: What is the power consumption of this light?
A3: The power consumption is 20W, ensuring energy-efficient operation.
Q4: Which LED source is used in this light?
A4: The light utilizes LumiLEDs LM80 2835 LED source, ensuring high-quality illumination and long-lasting performance.
Q5: Are there options for different driver brands?
A5: Yes, you can choose from reputable driver brands such as BOKE, Osram, Tridonic, VS, or TCI for optimum performance and compatibility.
Q6: Does the light have a high power factor?
A6: Yes, the Halo LED Bulkhead Light has a power factor greater than 0.9, ensuring efficient energy consumption.
Q7: Is the light flicker-free?
A7: Yes, the light is designed to be flicker-free, providing stable and comfortable illumination.
Q8: What materials are used in the construction of the light?
A8: The light features a die-cast aluminum body and a PC diffuser, ensuring durability and impact resistance.
Q9: What is the lumen efficacy of the light?
A9: The Halo LED Bulkhead Light offers lumen efficacy of up to 110LM/W, providing bright and efficient illumination.
Q10: Does the light have a high color rendering index (CRI)?
A10: Yes, the light has a CRI greater than 82, ensuring accurate color representation without any blue light hazard.
Q11: Is the light suitable for outdoor use?
A11: Yes, the light is waterproof with an IP65 rating, making it suitable for outdoor environments.
Q12: Can the light withstand impact?
A12: Yes, the Halo LED Bulkhead Light has an IK10 impact resistance rating, ensuring durability and protection against physical impact.
Q13: Is the light resistant to UV damage and salt corrosion?
A13: Yes, the light is designed to be anti-UV and anti-salty, making it suitable for coastal or outdoor applications.
Q14: What are the size dimensions of the light?
A14: The light has a diameter of 300mm and a height of 90mm, offering a compact and versatile design.
Q15: Can the light be surface-mounted or pendant-installed?
A15: Yes, the Halo LED Bulkhead Light provides options for both surface-mounted and pendant installation, offering installation flexibility.Pendant is just for indoor.
BH-R20W Bulkhead Light is a circle ceiling or wall mounted amenity lighting fixture with halo lighting effective, which uses robust die cast aluminium body and polycarbonate diffuser by sealing to IP65, the luminaire is not only waterproof also can be IK10 which is ideal for interior and exterior of park lighting, corridor lighting, exterior lighting and amenity lighting.
LumiLEDs LM80 LED source and famous brand LED driver(VS,Tridonic,Osram or Philips) provides high output lumen and stable long life for this lamp. iLed also designs it as more functional for projects requirements, including DALI, motion sensor, standy motion sensor and self-test emergency 3 hours.
LED Bulkhead Light for Outdoor Lighting
1. Can we install this bulkhead light outside wall?
Yes, you can.
2. Do we need to install them with earth wire?
Yes, it is electrical class I, must connec the earth wire.
3. Is it Yellowlish?
During 3 years, it is not yellowish because we use anti UV diffuser.
4. Can you emergency bulkhead light be self-test?
Yes, it is self test.
