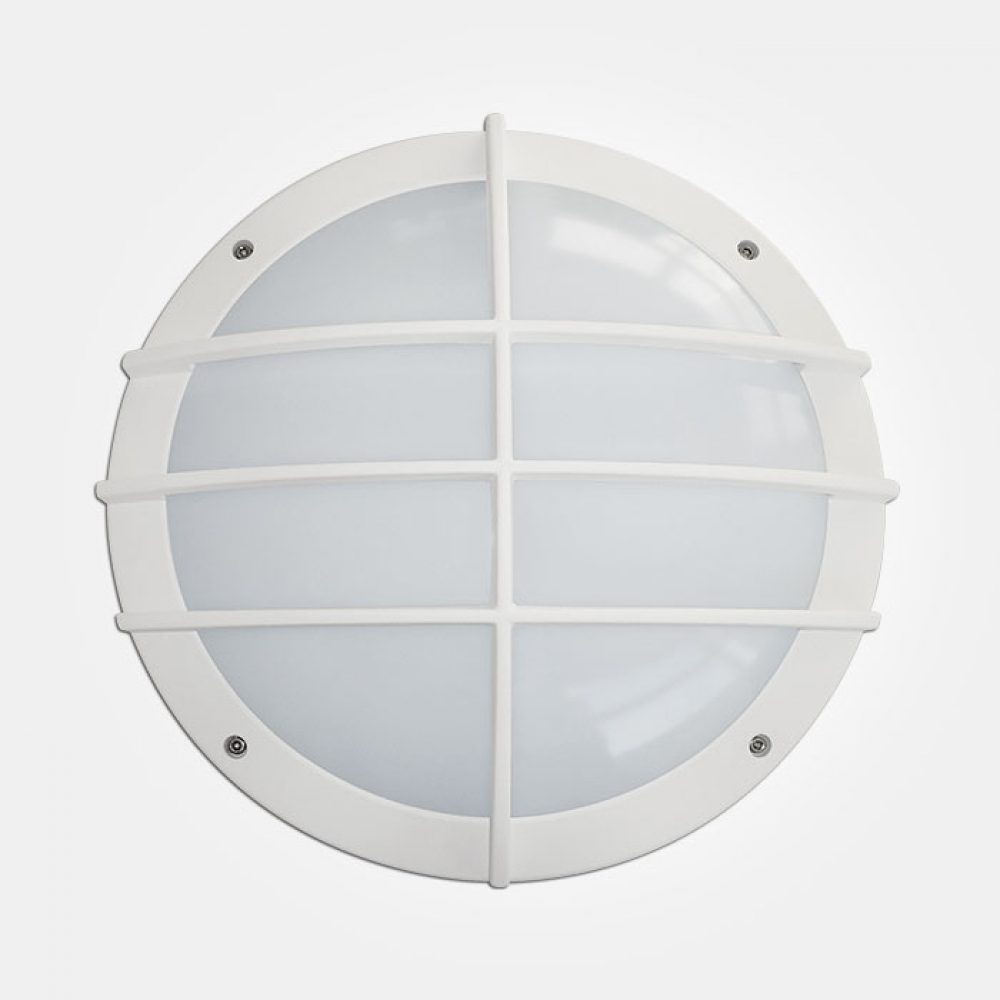

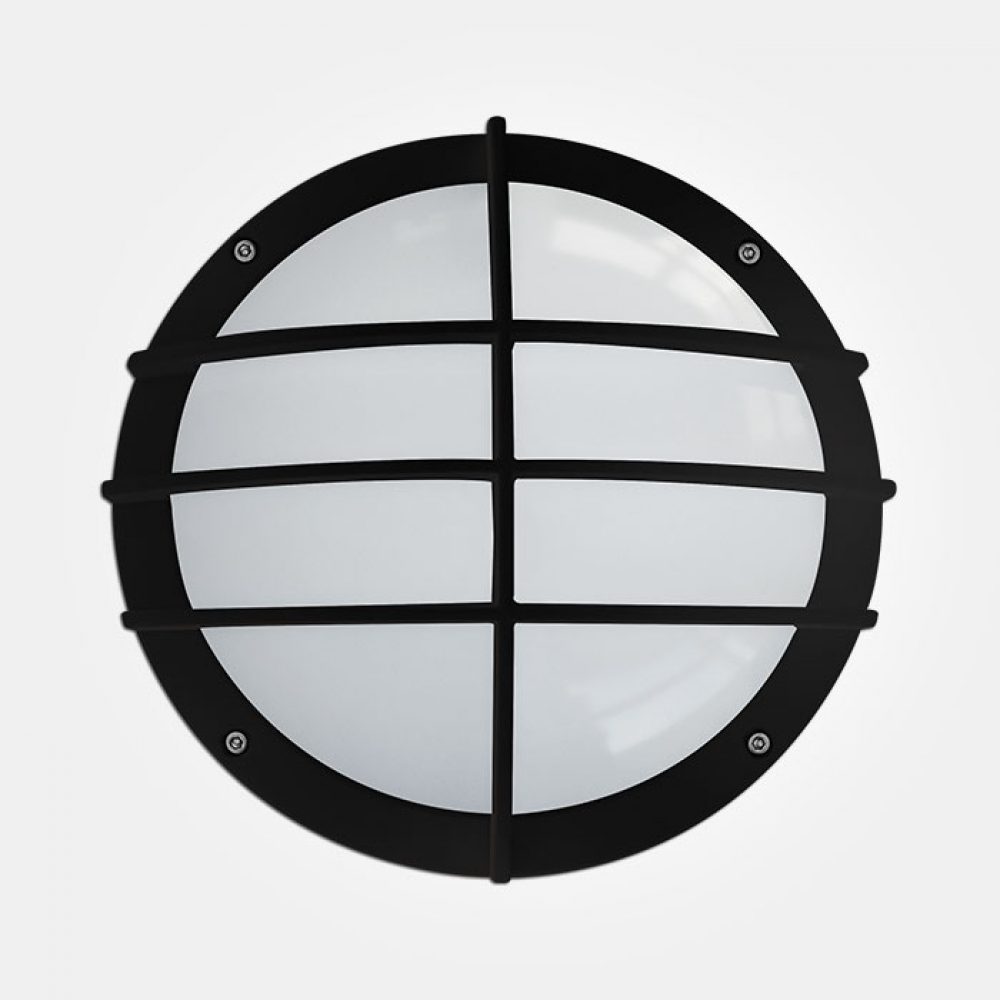

Crossblade 360mm 20W LED Bulkhead Light IP65 IP54 Round Amax

AmaxHublot is our largest size LED Bulkhead Light, its diameter is 360mm. Weatherproof IP65 IK10 LED Bulkhead Ceiling Light uses Robust Die-Cast Aluminum Body and Anti UV polycarbonate enclosure is vandal resistant and provides protection to IP65 and IK10. High Lumen and Stable quality makes it as the best solution lighting to walkways, tunnels, storage areas, car parks etc.

Highlights

→ High Lumen 100LM/W

→ Robust Cast Aluminum Body

→ Max size 360mm

→ Professional Powder Coated

→ Anti Salty,IP65,IK10

→ Uniform Soft Lighting

iLed Wechat
certification

Model

Wattage/Lumen

Cover

Dimensions

ILED-BH-R3602 20W/1700LM Plain φ360x130mm

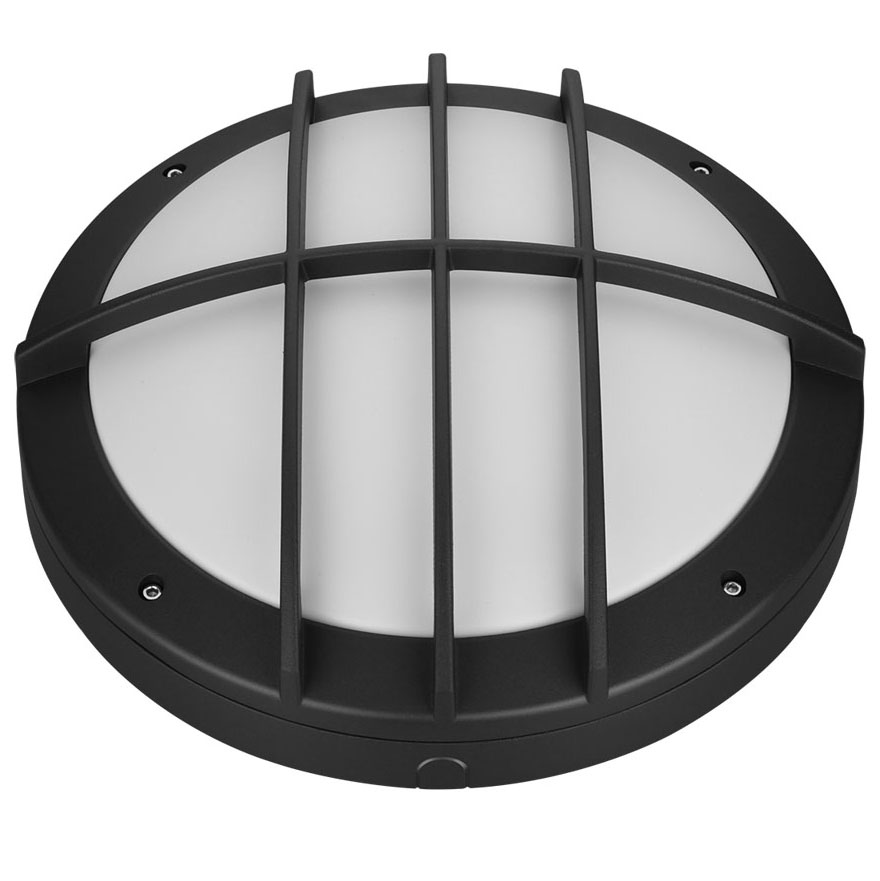

ILED-BH-R3602-GL 20W/2000LM Grille Crossing φ360x135mm
ILED-BH-R3602-EL 20W/2000LM Eyelid Half Moon φ360x130mm
ILED-BH-R3602-TL 20W/2000LM Crossing φ360x130mm



Input 220–240VAC / 110-277VAC LED Source LumiLEDs LED
Watts 20W Lumen Effective 100LM/W
Lumen Output 2000LM Size φ360x130mm
Materials Aluminum+PC PF >0.9
CCT 2800-6500K CRI >82
Electrical Classification Class I IP Class IP65
Beam Angel 120° Body Color White /Black /

Silver Gray

Warranty 3-5 years Certifications SAA,CE,RoHS





Send Your Inquiry

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

Packaging

Net Weight Quantites /Carton Carton Size Gross Weight/Carton

3.2KGs

5 pcs

  70x39x39cm

16.8KGS

Specifications

Model

Wattage/Lumen

Cover

Dimensions

ILED-BH-R3602 20W/1700LM Plain φ360x130mm
ILED-BH-R3602-GL 20W/2000LM Grille Crossing φ360x135mm
ILED-BH-R3602-EL 20W/2000LM Eyelid Half Moon φ360x130mm
ILED-BH-R3602-TL 20W/2000LM Crossing φ360x130mm



Input 220–240VAC / 110-277VAC LED Source LumiLEDs LED
Watts 20W Lumen Effective 100LM/W
Lumen Output 2000LM Size φ360x130mm
Materials Aluminum+PC PF >0.9
CCT 2800-6500K CRI >82
Electrical Classification Class I IP Class IP65
Beam Angel 120° Body Color White /Black /

Silver Gray

Warranty 3-5 years Certifications SAA,CE,RoHS





Send Your Inquiry

Description
Why choose us?
Frequently Asked Questions
Applications

Widely Providing lighting to walkways, tunnes, storage areas, car parks, exterior outside enviroments etc.

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

Square LED Bulkhead Lights Application

More You're Caring

Packaging

Net Weight Quantites /Carton Carton Size Gross Weight/Carton

3.2KGs

5 pcs

  70x39x39cm

16.8KGS
