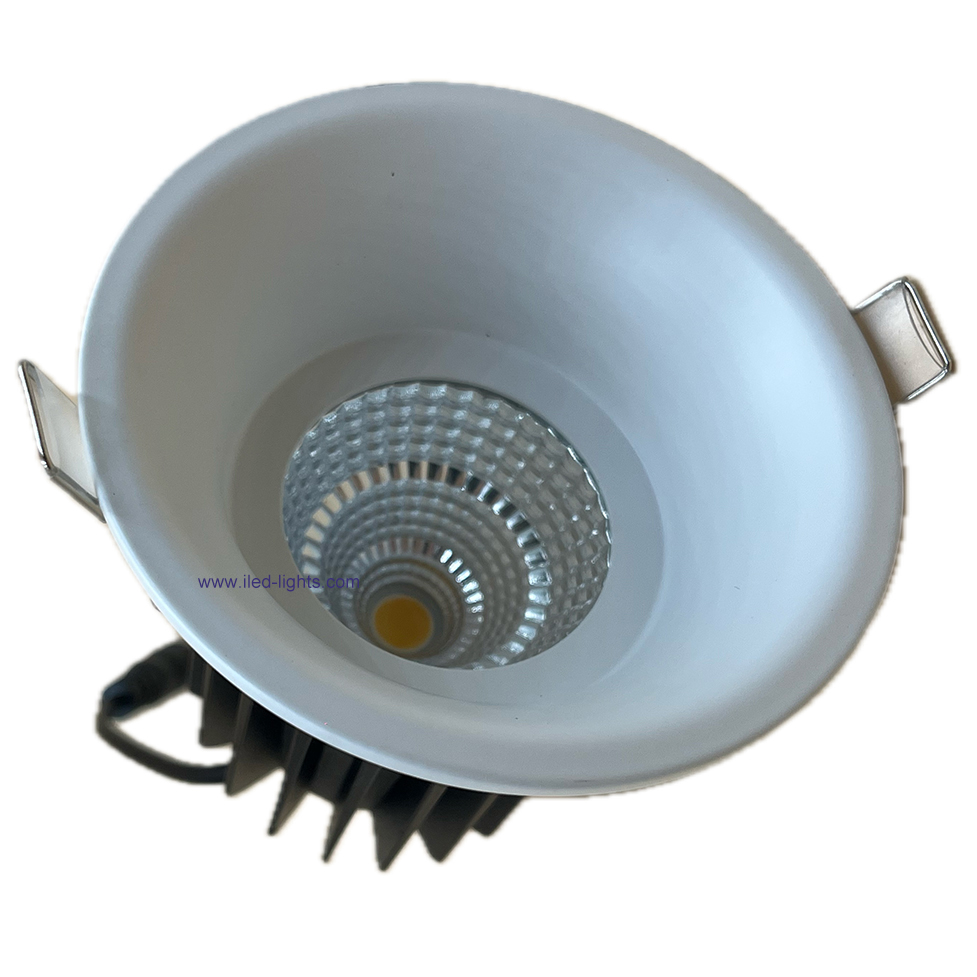

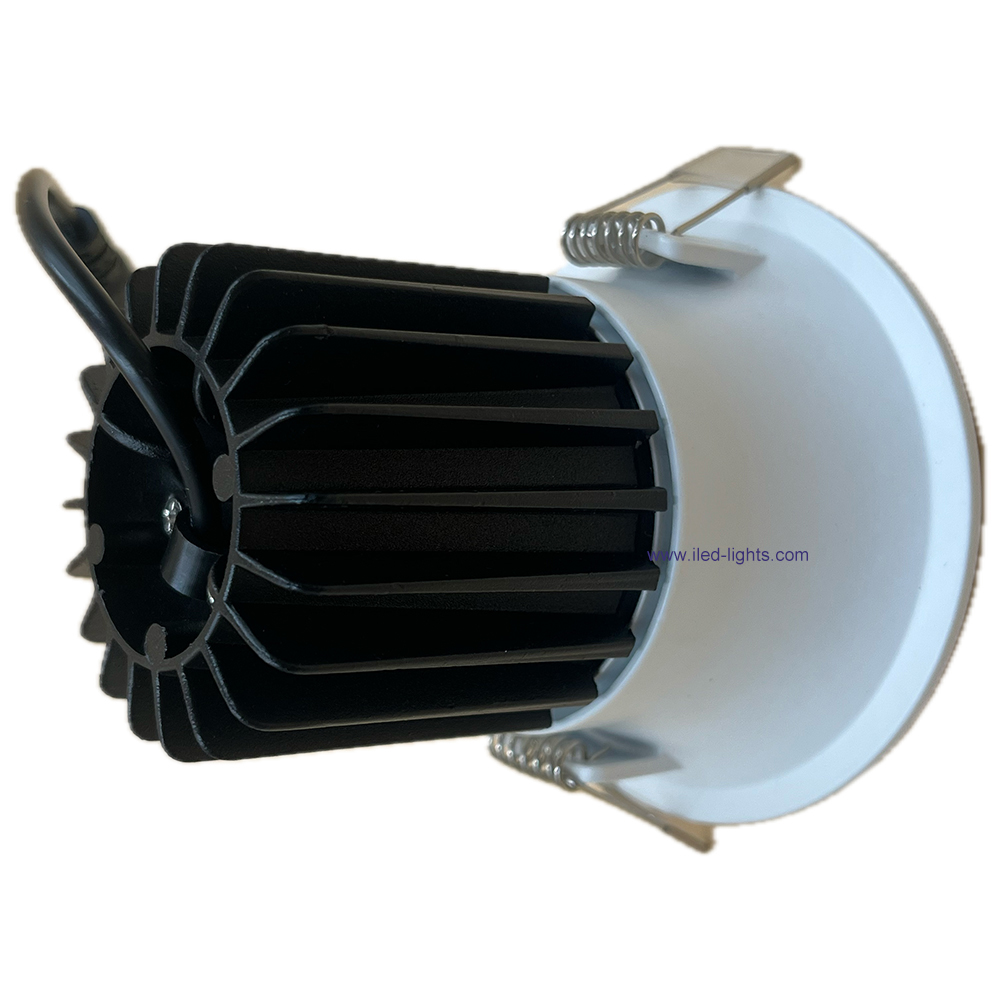

DALI LED Downlight Recessed Dimmable 12W Hole 90mm
FC-D1 Anti-Glare Recessed LED Downlight features a premium CREE COB LED source with CRI>90 for superior color accuracy. Available in 8-12W, it operates on 220-240VAC or 110-277VAC. Crafted from aluminum with 20°, 36°, or 60° reflector lens options, it offers IP42 protection. Measuring ⌀98*H94mm with a D85-90mm cutout, it supports Triac, DALI, Casambi, or 0-10V dimming, plus an emergency option. Choose from 2700K, 3000K, 4000K, 5000K, or 3CCT color temperatures. Ideal for residential and commercial spaces, it combines efficiency, versatility, and elegant design.
Highlights
→ CREE COB , CRI>90
→ Recessed Hole 85-90mm
→ Triac Dimmable for Option
→ DALI Dimmable for Option
→ Casambi for Option
→ 0-10V Dimmable for Option
→ Emergency for Option
| Model | FC-D1 | Input | 220-240VAC/110-277VAC |
| Watts | 12W | LED Source | CREE COB |
| Materials | Aluminum Body | CCT | 2700K/3KK/4KK/5KK |
| Lens | 20°/36°/60° | IP Class | IP42 |
| Size | ⌀ 98*H94mm | Base Size |
φ85-90mm |
| Functions | → Triac Dimmable for Option → DALI Dimmable for Option → Casambi for Option → 0-10V Dimmable for Option → Emergency for Option |
||
Send Your Inquiry
1. High-Quality LED Source: Features a CREE COB LED for superior luminous efficacy and uniform light output.
2. Excellent Color Rendering: CRI>90 ensures vibrant, accurate colors, perfect for homes, galleries, or retail spaces.
3. Anti-Glare Design: Minimizes glare for enhanced visual comfort in any setting.
4. Flexible Beam Angles: Offers 20°, 36°, or 60° reflector lens options to suit task or ambient lighting needs.
5. Customizable Color Temperatures: Available in 2700K, 3000K, 4000K, 5000K, or 3CCT for tailored ambiance.
6. Energy Efficiency: Operates at 8-12W, reducing energy costs without sacrificing brightness.
7. Versatile Voltage Compatibility: Supports 220-240VAC or 110-277VAC for global use.
8. Multiple Dimming Options: Includes Triac, DALI, Casambi, or 0-10V dimming for seamless control integration.
9. Emergency Option: Provides backup lighting during power outages for added safety.
10. Durable Construction: Made from aluminum for excellent heat dissipation and long-term durability.
11. IP42 Rating: Protects against dust and limited water ingress, suitable for indoor environments.
12. Compact and Easy Installation: ⌀98mm x H94mm with a D85-90mm cutout for simple, flush ceiling integration.
13. Sleek Aesthetic: Modern aluminum design complements contemporary interiors.
14. Low Maintenance: Long-lasting LED reduces the need for frequent replacements.
15. Versatile Applications: Ideal for residential, commercial, hospitality, or cultural settings.
Q1: What is the lifespan of the FC-D1 LED Downlight?
A1: The FC-D1 uses a CREE COB LED, typically offering a lifespan of 50,000 hours or more, depending on usage and environmental conditions, ensuring long-term reliability with minimal maintenance.
Q2: Is the downlight suitable for wet areas like bathrooms?
A2: With an IP42 rating, the FC-D1 is protected against dust and limited water ingress but is not recommended for high-humidity areas like bathrooms. It’s best suited for dry indoor spaces.
Q3: Can I install the FC-D1 in any ceiling type?
A3: The FC-D1 fits standard ceilings with a D85-90mm cutout. Ensure the ceiling depth accommodates the 94mm height and check compatibility with your ceiling material for secure installation.
Q4: Which dimming option should I choose for smart home integration?
A4: For smart home systems, the Casambi option allows Bluetooth-based wireless control via an app. Alternatively, DALI or 0-10V dimming suits advanced home automation or commercial setups.
Q5: Does the emergency option require additional wiring?
A5: Yes, the emergency option typically requires separate wiring to connect to a backup power source. Consult a qualified electrician to ensure compliance with local regulations.
Q6: How do I choose the right beam angle for my space?
A6: Select 20° for focused task lighting (e.g., desks), 36° for general illumination (e.g., living rooms), or 60° for wide coverage (e.g., open areas). Consider room size and purpose.
Q7: Can I switch between color temperatures after installation?
A7: If you choose the 3CCT option, you can switch between preset color temperatures (e.g., 2700K/3000K/4000K) via a dip switch or control system, if supported, during or post-installation.
Q8: Is the FC-D1 compatible with my existing dimmer switch?
A8: If opting for Triac dimming, it’s compatible with most trailing-edge dimmers. Verify your dimmer’s compatibility with LED loads and consult the product manual for recommended models.
Q9: What is the warranty period for this downlight?
A9: Warranty details depend on the supplier, but LED downlights like the FC-D1 typically come with a 3-5 year warranty. Contact your retailer for specific terms.
Q10: How energy-efficient is the FC-D1 compared to traditional lighting?
A10: At 8-12W, the FC-D1 consumes significantly less energy than traditional halogen or incandescent downlights (e.g., 50-75W), reducing energy costs while maintaining high brightness.
1.Residential Spaces: Ideal for living rooms, bedrooms, kitchens, and hallways, providing warm or neutral lighting with customizable color temperatures (2700K-5000K) and anti-glare comfort.
2.Commercial Offices: Suits open-plan offices, meeting rooms, or reception areas, offering high CRI (>90) for clear visibility and dimming options (Triac, DALI, 0-10V) for flexible control.
3.Retail Stores: Enhances product displays in shops or showrooms with vibrant color rendering and focused beam angles (20° or 36°) to highlight merchandise.
4.Hospitality Venues: Used in hotels, restaurants, and cafes to create inviting atmospheres with wide beam angles (60°) and Casambi wireless control for ambiance adjustments.
5.Cultural Spaces: Perfect for museums, galleries, or exhibition halls, where high CRI ensures accurate color representation for artwork or artifacts.
6.Educational Facilities: Installed in classrooms, libraries, or auditoriums, providing energy-efficient (8-12W) and glare-free lighting for comfortable learning environments.
7.Healthcare Settings: Suitable for medical offices or waiting rooms, with the emergency option ensuring safety and dimmable features for patient comfort.
8.Corridors and Lobbies: Commonly used in building hallways or entrance areas, offering uniform illumination and a sleek, recessed design for modern aesthetics.
| Model | FC-D1 | Input | 220-240VAC/110-277VAC |
| Watts | 12W | LED Source | CREE COB |
| Materials | Aluminum Body | CCT | 2700K/3KK/4KK/5KK |
| Lens | 20°/36°/60° | IP Class | IP42 |
| Size | ⌀ 98*H94mm | Base Size |
φ85-90mm |
| Functions | → Triac Dimmable for Option → DALI Dimmable for Option → Casambi for Option → 0-10V Dimmable for Option → Emergency for Option |
||
Send Your Inquiry
1. High-Quality LED Source: Features a CREE COB LED for superior luminous efficacy and uniform light output.
2. Excellent Color Rendering: CRI>90 ensures vibrant, accurate colors, perfect for homes, galleries, or retail spaces.
3. Anti-Glare Design: Minimizes glare for enhanced visual comfort in any setting.
4. Flexible Beam Angles: Offers 20°, 36°, or 60° reflector lens options to suit task or ambient lighting needs.
5. Customizable Color Temperatures: Available in 2700K, 3000K, 4000K, 5000K, or 3CCT for tailored ambiance.
6. Energy Efficiency: Operates at 8-12W, reducing energy costs without sacrificing brightness.
7. Versatile Voltage Compatibility: Supports 220-240VAC or 110-277VAC for global use.
8. Multiple Dimming Options: Includes Triac, DALI, Casambi, or 0-10V dimming for seamless control integration.
9. Emergency Option: Provides backup lighting during power outages for added safety.
10. Durable Construction: Made from aluminum for excellent heat dissipation and long-term durability.
11. IP42 Rating: Protects against dust and limited water ingress, suitable for indoor environments.
12. Compact and Easy Installation: ⌀98mm x H94mm with a D85-90mm cutout for simple, flush ceiling integration.
13. Sleek Aesthetic: Modern aluminum design complements contemporary interiors.
14. Low Maintenance: Long-lasting LED reduces the need for frequent replacements.
15. Versatile Applications: Ideal for residential, commercial, hospitality, or cultural settings.
Q1: What is the lifespan of the FC-D1 LED Downlight?
A1: The FC-D1 uses a CREE COB LED, typically offering a lifespan of 50,000 hours or more, depending on usage and environmental conditions, ensuring long-term reliability with minimal maintenance.
Q2: Is the downlight suitable for wet areas like bathrooms?
A2: With an IP42 rating, the FC-D1 is protected against dust and limited water ingress but is not recommended for high-humidity areas like bathrooms. It’s best suited for dry indoor spaces.
Q3: Can I install the FC-D1 in any ceiling type?
A3: The FC-D1 fits standard ceilings with a D85-90mm cutout. Ensure the ceiling depth accommodates the 94mm height and check compatibility with your ceiling material for secure installation.
Q4: Which dimming option should I choose for smart home integration?
A4: For smart home systems, the Casambi option allows Bluetooth-based wireless control via an app. Alternatively, DALI or 0-10V dimming suits advanced home automation or commercial setups.
Q5: Does the emergency option require additional wiring?
A5: Yes, the emergency option typically requires separate wiring to connect to a backup power source. Consult a qualified electrician to ensure compliance with local regulations.
Q6: How do I choose the right beam angle for my space?
A6: Select 20° for focused task lighting (e.g., desks), 36° for general illumination (e.g., living rooms), or 60° for wide coverage (e.g., open areas). Consider room size and purpose.
Q7: Can I switch between color temperatures after installation?
A7: If you choose the 3CCT option, you can switch between preset color temperatures (e.g., 2700K/3000K/4000K) via a dip switch or control system, if supported, during or post-installation.
Q8: Is the FC-D1 compatible with my existing dimmer switch?
A8: If opting for Triac dimming, it’s compatible with most trailing-edge dimmers. Verify your dimmer’s compatibility with LED loads and consult the product manual for recommended models.
Q9: What is the warranty period for this downlight?
A9: Warranty details depend on the supplier, but LED downlights like the FC-D1 typically come with a 3-5 year warranty. Contact your retailer for specific terms.
Q10: How energy-efficient is the FC-D1 compared to traditional lighting?
A10: At 8-12W, the FC-D1 consumes significantly less energy than traditional halogen or incandescent downlights (e.g., 50-75W), reducing energy costs while maintaining high brightness.
1.Residential Spaces: Ideal for living rooms, bedrooms, kitchens, and hallways, providing warm or neutral lighting with customizable color temperatures (2700K-5000K) and anti-glare comfort.
2.Commercial Offices: Suits open-plan offices, meeting rooms, or reception areas, offering high CRI (>90) for clear visibility and dimming options (Triac, DALI, 0-10V) for flexible control.
3.Retail Stores: Enhances product displays in shops or showrooms with vibrant color rendering and focused beam angles (20° or 36°) to highlight merchandise.
4.Hospitality Venues: Used in hotels, restaurants, and cafes to create inviting atmospheres with wide beam angles (60°) and Casambi wireless control for ambiance adjustments.
5.Cultural Spaces: Perfect for museums, galleries, or exhibition halls, where high CRI ensures accurate color representation for artwork or artifacts.
6.Educational Facilities: Installed in classrooms, libraries, or auditoriums, providing energy-efficient (8-12W) and glare-free lighting for comfortable learning environments.
7.Healthcare Settings: Suitable for medical offices or waiting rooms, with the emergency option ensuring safety and dimmable features for patient comfort.
8.Corridors and Lobbies: Commonly used in building hallways or entrance areas, offering uniform illumination and a sleek, recessed design for modern aesthetics.
