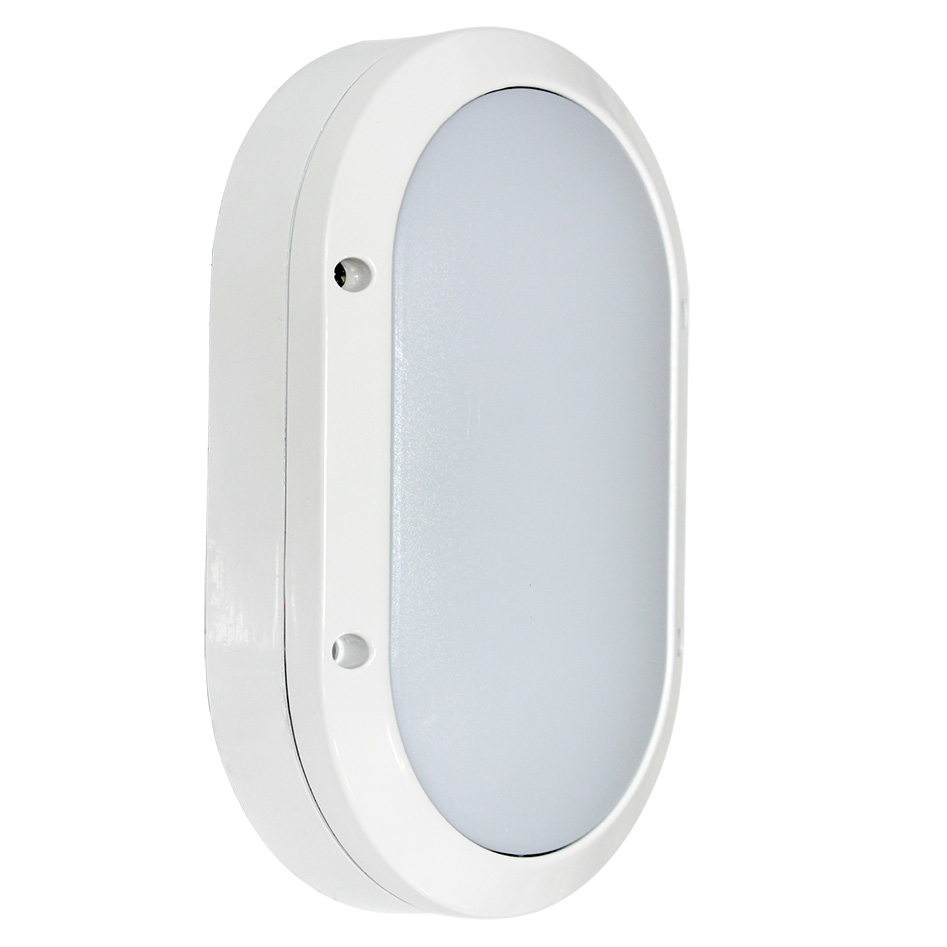

The ILED-BH-O220 is a narrow oval bulkhead light built for installations where space is tight and a round fixture would look too wide. At 220×135mm it fits corridors, stairwells and narrow entryways where a standard round bulkhead would overhang the mounting surface. The elongated shape spreads light along the length of the space rather than radiating outward, which is more efficient for linear areas like walkways and hallways.
Tech specs at a glance

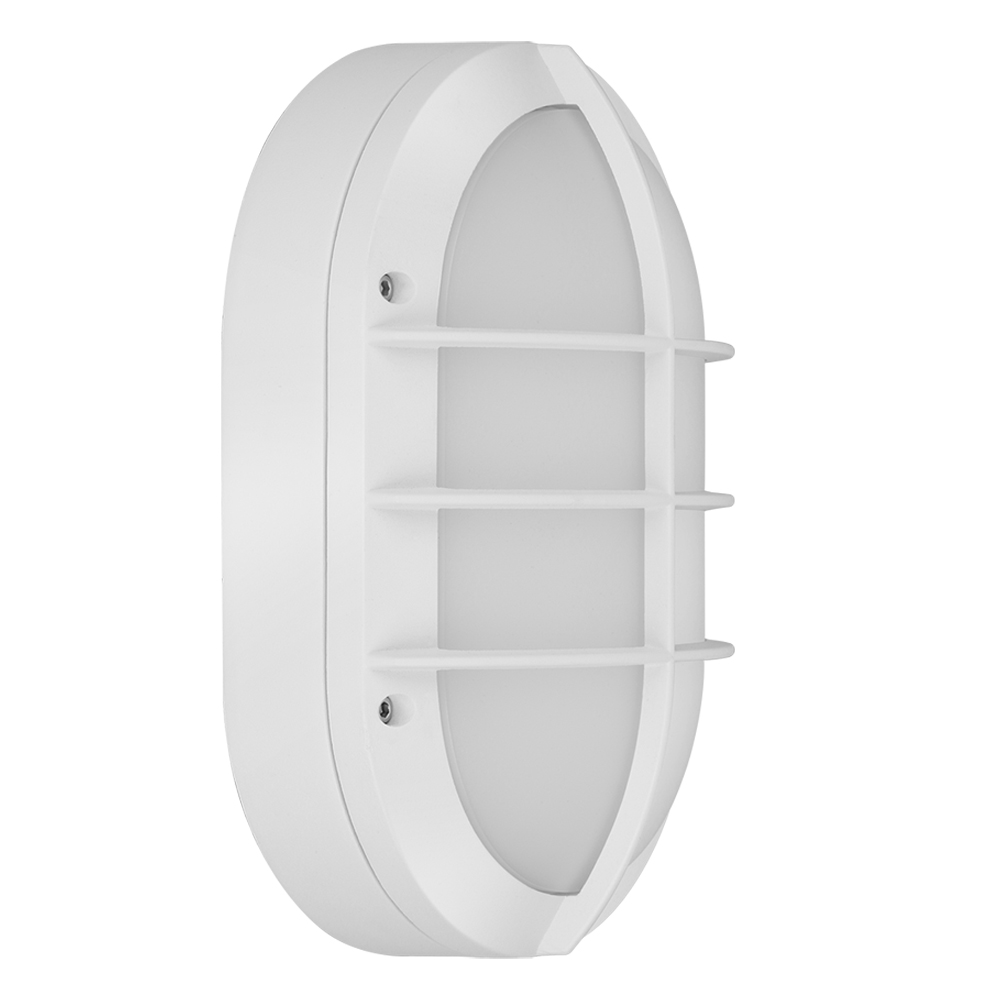

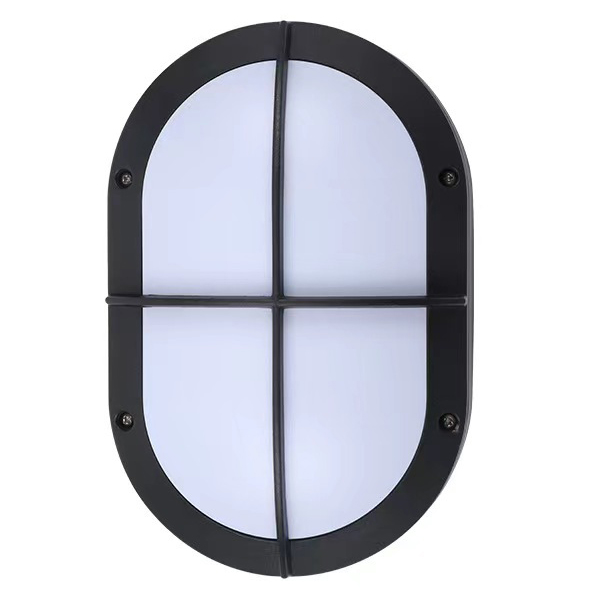

The ILED-BH-O220 is available in two wattage options. The 8W version produces 880 lumens. The 10W version produces 1100 lumens. Both deliver 100–110 lumens per watt from the same 220×135×65mm housing. Input is 220-240VAC or 110-277VAC 50/60Hz, so the fixture works in most regions without a transformer. The colour temperature range is 2800K to 6500K, selectable at installation — warm white, neutral, or cool white. Colour rendering is above 82. The beam angle is 120°, spreading light evenly across the floor. Four diffuser variants are available: Plain for general illumination, Grille Crossing (GL) for applications where the light pattern needs to be broken up, Eyelid Half Moon (EL) for directional wall-washing or facade grazing, and Crossing (TL) for a balanced spread with partial glare control. The die-cast aluminium body is IP65 rated — dust-tight and protected against water jets from any direction.
Build and installation
The housing is die-cast aluminium with a powder-coated finish in white, black or silver gray. The diffuser is anti-UV polycarbonate, available in four patterns as described above. The integral driver is sealed inside the housing — no external ballast or separate power supply is needed. Wiring is direct to mains through the terminal block. Electrical classification is Class I, requiring a protective earth connection. The fixture can be surface-mounted to a flat wall or ceiling using the four mounting points on the back plate, or recessed into a 220×135mm cutout if the construction allows.
Control options
This is a standard non-dimmable, non-controlled bulkhead. It switches on and off with the circuit — wall switch, timer, or external sensor. For projects that require DALI dimming, motion sensing, or photocell control, order the emergency or wall-packed variants from the same series instead.
What is in the box
Each unit ships as a single bulkhead with the driver pre-installed, mounting hardware included and the terminal block ready for connection. The selected diffuser (Plain, GL, EL or TL) is factory-fitted and should not be removed after installation. No separate controllers, transformers or drivers are packed inside — the fixture is ready to wire direct to mains.
What you need to supply
A circuit breaker or wall switch for on/off control. A mounting surface suitable for the fixture weight. For outdoor installations, confirm the mounting location is within the IP65 protection zone and that the seal remains intact after installation. No special tools beyond a screwdriver and wire strippers are required.
Where it gets used
The ILED-BH-O220 is built for narrow linear spaces where a round bulkhead would look disproportionate. Hotel and office corridors use the elongated form to follow the length of the passage with fewer fixtures than a round layout would require. Stairwells and narrow entryways benefit from the compact 220×135mm footprint — the fixture fits where a 300mm round bulkhead would overhang. External walkways and car park boundaries take advantage of the IP65 weatherproofing and the choice of diffuser patterns to control light spread and glare. The 3CCT option lets a single SKU serve warm-white hospitality zones and cool-white security areas across the same project.
Certifications and warranty
The ILED-BH-O220 carries SAA, CE and RoHS certifications. SAA approval covers Australian and New Zealand market requirements. The warranty period is three to five years depending on the region and distributor terms.
