Home >> Product >> Commercial LED Lights» LED Tri-proof Light >> Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light

Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light

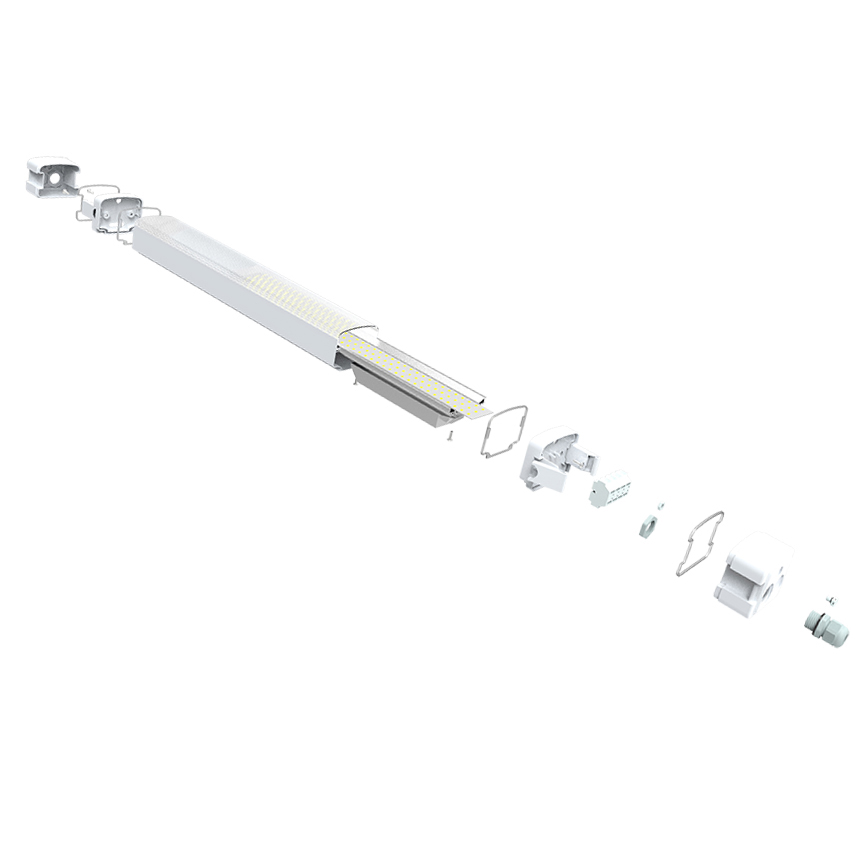

Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light is designed as a smart luminaire for saving much labor by double lock ends so that electrical engineer doesn't need to open the fixture to connection, just open the end without any tool. our Lock Buckle LED Tri-proof Light use Osram LED and Osram LED Driver provide high lumen output and long-life with economic price to meet any requirments of lighting to walkways,tunnels, storage areas, car parks etc.

>>Model:ILED-TRP-60B

>>Inventory: 500+ pcs In Stock

>>Categories: >> Commercial LED Lights» LED Tri-proof Light
Contact Now

CLICK HERE TO SEND INQUIRY


Wechat-iLeds

Description

Order Code

Installation

Application

Description:

SAA LED Triproof Lights,CRI>90,100LM/W,IP65, 60CM,20W

Features:
.Triac Dimmable, 0-10V Dimmable or DALI
.Motion Sensor or Standby Motion Sensor
.Emergency or DALI Emergency
.Sensor + Emergency
.IP65 Waterproof,IK10
.White or Silver Gray for Option

Key Data:

Model

Watts

Lumen

Size

Beam angle

IP Class

Function

ILED-TRP-60B

20W

2200LM

600x84x69mm

120°

 IP65

Normal

ILED-TRP-60B-DIM

20W

2200LM

600x84x69mm

120°

 IP65

Triac Dimmable

ILED-TRP-60B-DM10

20W

2200LM

600x84x69mm

120°

 IP65

0-10V Dimmable

ILED-TRP-60B-DALI

20W

2200LM

600x84x69mm

120°

 IP65

DALI Dimmable

ILED-TRP-60B-MLS

20W

2200LM

600x84x69mm

120°

 IP65

Mast Slave Motion Sensor

ILED-TRP-60B-MC

20W

2200LM

600x84x69mm

120°

 IP65

On/Off Motion Sensor

ILED-TRP-60B-MLC

20W

2200LM

600x84x69mm

120°

 IP65

Dimmable Standby Sensor

ILED-TRP-60B-EM

20W

2200LM

600x84x69mm

120°

 IP65

Emergency

ILED-TRP-60B-EMS

20W

2200LM

600x84x69mm

120°

 IP65

Sensor + Emergency

ILED-TRP-60B-MLEM

20W

2200LM

600x84x69mm

120°

 IP65

Dimmable Standby Sensor + Emergency

Other Parameters

Input

220V~240VAC 50/60Hz

LED Source

LM80 LEDs

Materials

ABS and PC

PF

>0.9

CCT

2800-7000K

CRI

>80

Electrical Classification

 Class I

IP Class

 IP65

Beam angle

120°

Body Color

White Painted or Silver

Watt

20W

Lumens

110lm/W

Warranty

3~5 years

Certification

CE&RoHS&SAA,TUV


Application:
Widely used in Food Processing  ,  Facilities Warehouses, Nursing Homes, Walkway Canopies, Hospitals, Harsh Environments ,  Parking Garages , Wet Environments, Gymnasiums ,Warehouses, Recreation Centers,Replacement for traditional T8 Fluorescent Tube Light, etc.

ILED-TRP-150B SAA LED Triproof Lights,CRI>90,100LM/W,IP65,150 CM,60W

ILED-TRP-120B SAA LED Triproof Lights,CRI>90,100LM/W,IP65,120 CM,40W


Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light
Buckle Lock 20W IP65 Waterproof 60cm 2ft LED Tri-proof Light

Model

Watts

Function

ILED-TRP-60B

20W

Normal

ILED-TRP-60B-DIM

20W

Triac Dimmable

ILED-TRP-60B-DM10

20W

0-10V Dimmable

ILED-TRP-60B-DALI

20W

DALI Dimmable

ILED-TRP-60B-MLS

20W

Mast Slave Motion Sensor

ILED-TRP-60B-MC

20W

On/Off Motion Sensor

ILED-TRP-60B-MLC

20W

Dimmable Standby Sensor

ILED-TRP-60B-EM

20W

Emergency

ILED-TRP-60B-EMS

20W

Sensor + Emergency

ILED-TRP-60B-MLEM

20W

Dimmable Standby Sensor + Emergency
