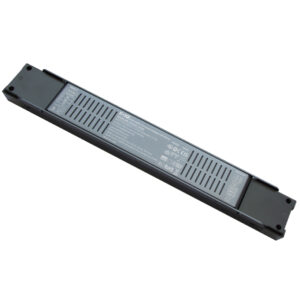

DALI 2 LED Driver DT6 24VDC 48VDC PUSH 0-10V PWM with 12V Auxiliary Power
The BK-DEV DALI 2 LED Driver is a powerful and versatile lighting solution, offering exceptional performance and control. With options for 24VDC or 48VDC output, it supports dimming using 0-10V or PWM signals, allowing for precise adjustments from 1% to 100%. The driver boasts a high power factor of 0.99 and efficiency exceeding 90%, ensuring optimal energy utilization and reduced operational costs. Additionally, it provides flicker-free lighting at any brightness level, enhancing visual comfort. The inclusion of a 12V auxiliary power output adds convenience for powering auxiliary devices. With its reliable performance, compatibility with DALI 2 control systems, and a range of power options (80W, 150W, 200W), the BK-DEV LED Driver is an ideal choice for demanding lighting projects.
Highlights
→ DT6 DALI 2
→ PUSH DIM
→ 0-10V DIM
→ 10V PWM
→ With 12V Auxiliary Power
→ High PF,Flicker Free, Low THD
→ Stable and Long life
| Model | Watts | Out-Voltage | Out-Current | Size(mm) |
| BK-DCV080-24V0D | 80W | 24VDC | 3.4A | L289*W48*H30 |
| BK-DCV080-48V0D | 80W | 48VDC | 1.7A | L289*W48*H30 |
| BK-DCV150-24V0D | 150W | 24VDC | 6.25A | L329*W48*H30 |
| BK-DCV150-48V0D | 150W | 48VDC | 3.12A | L329*W48*H30 |
| BK-DCV200-24V0D | 200W | 24VDC | 8.3A | L369*W48*H30 |
| BK-DCV200-24V0D | 200W | 48VDC | 4.15A | L369*W48*H30 |
| Input | 220-240VAC | Brand | BOKE |
| Efficiency | >90% | PF | >0.99 |
| Ta |
55℃ |
Tc |
90℃ |
| Dimming | 1-100% |
Flicker-free |
Pst LM <1,SVM <0.4 |
| Protection type | Class | | IP Rating | IP20 |
|
Output type  |
SELV |
Operation temperature |
-20°C-60°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:2KV,L/N-FG:2KV |
||
|
Operation temperature |
-20°C-60°C |
||
| Features | 1. Support DALI-2/pushDIM+1-10V/10 PWM/Rx dimming+12V auxiliary power 2. Provide 12V 100mA auxiliary power supply to power control module or sensor 3. Soft dimming and flicker-free at any brightness 4. Dimming range 1-100%,support multiple lights dimming 5. Standby power input <0.5W,meets the requirements of ErP certification 6. High PF,high efficiency,low THD 7. SELV and Class I design,suitable for use outside the light 8. Compliance with CE,UKCA,ENEC,RCM,DALI-2 and other certifications |
||
Send Your Inquiry
1. Versatility: The BK-DEV LED Driver supports multiple dimming methods, including DALI-2, pushDIM, 0-10V, PWM, and Rx dimming. This versatility allows you to adapt to various lighting control systems and meet the specific requirements of your projects.
2. Precise Dimming Control: With a dimming range of 1-100%, the BK-DEV LED Driver provides precise control over lighting levels, enabling you to create the desired ambiance and enhance user experience.
3. Flicker-Free Performance: The driver ensures flicker-free lighting at any brightness level. This feature is crucial for visual comfort, reducing eye strain, and maintaining consistent lighting quality.
4. Energy Efficiency: The BK-DEV LED Driver has a high power factor (>0.99) and efficiency (>90%), optimizing energy utilization and reducing operational costs. It promotes energy-saving initiatives and sustainability.
5. Compliance and Safety: The driver is compliant with various certifications, including CE, UKCA, ENEC, RCM, and DALI-2. It also features SELV and Class I design, ensuring safety and meeting regulatory requirements.
6. Long Lifespan: With a lifespan of 100,000 hours, the BK-DEV LED Driver offers long-term reliability, reducing maintenance and replacement costs.
7. Auxiliary Power Supply: The inclusion of a 12V 100mA auxiliary power supply allows you to power control modules or sensors conveniently, enhancing the flexibility and functionality of your lighting system.
8. Suitable for Outdoor Use: The SELV and Class I design make the BK-DEV LED Driver suitable for outdoor lighting applications, expanding your options for design and installation.
Q1: What is the input voltage range for the BK-DEV LED Driver?
A1: The input voltage range is 220-240VAC, with a limited voltage of 180-264VAC.
Q2: What is the power output range of the BK-DEV LED Driver?
A2: The BK-DEV LED Driver is available in power options of 80W, 150W, and 200W.
Q3: Does the driver support dimming?
A3: Yes, the BK-DEV LED Driver supports various dimming methods, including DALI-2, pushDIM, 0-10V, PWM, and Rx dimming.
Q4: What is the dimming range of the BK-DEV LED Driver?
A4: The dimming range is from 1% to 100%, allowing for precise control over lighting levels.
Q5: Is the driver flicker-free at any brightness level?
A5: Yes, the BK-DEV LED Driver ensures flicker-free performance at any brightness level, enhancing visual comfort.
Q6: Does the BK-DEV LED Driver comply with safety standards?
A6: Yes, the driver is compliant with various certifications, including CE, UKCA, ENEC, RCM, and DALI-2.
Q7: Can the driver be used for outdoor lighting applications?
A7: Yes, the SELV and Class I design of the BK-DEV LED Driver make it suitable for outdoor use.
Q8: What is the lifespan of the BK-DEV LED Driver?
A8: The driver has a lifespan of 100,000 hours, ensuring long-term reliability.
Q9: Does the BK-DEV LED Driver have an auxiliary power supply?
A9: Yes, the driver provides a 12V 100mA auxiliary power supply for control modules or sensors.
Q10: Is the BK-DEV LED Driver energy-efficient?
A10: Yes, the driver has a high power factor (>0.99) and efficiency (>90%), optimizing energy utilization.
Q11: Can the BK-DEV LED Driver support multiple lights dimming?
A11: Yes, the driver supports multiple lights dimming, providing flexibility for lighting control.
Q12: Does the driver have surge protection?
A12: Yes, the BK-DEV LED Driver has surge protection with surge ratings of L-N: 2KV and L/N-FG: 2KV.
Q13: What is the operational temperature range for the BK-DEV LED Driver?
A13: The driver can operate within a temperature range of -20°C to 60°C.
Q14: What is the power-on time for the BK-DEV LED Driver?
A14: The power-on time is less than 0.7 seconds, ensuring quick and reliable operation.
Q15: Can the BK-DEV LED Driver meet ErP certification requirements?
A15: Yes, the standby power input is less than 0.5W, meeting the requirements of ErP certification.
DALI 2 LED Driver DT6 24VDC 48VDC PUSH 0-10V PWM with 12V Auxiliary Power, Model: BK-DEV, can be used in various lighting applications, including but not limited to:
1. Commercial Spaces: This driver is suitable for lighting installations in offices, retail stores, hotels, restaurants, and other commercial environments where precise dimming control and flicker-free performance are desired.
2. Residential Lighting: The BK-DEV LED Driver can be used in homes and apartments for indoor lighting applications, such as living rooms, bedrooms, kitchens, and dining areas, providing adjustable and comfortable lighting levels.
3. Hospitality and Entertainment: Whether it’s a hotel lobby, theater, nightclub, or event venue, the driver’s versatility and dimming capabilities make it ideal for creating dynamic lighting scenes and atmospheres.
4. Architectural Lighting: The driver can be utilized in architectural lighting projects to highlight building facades, monuments, bridges, and other structures, allowing for precise control over brightness and effects.
5. Outdoor Lighting: With its SELV and Class I design, the BK-DEV LED Driver is suitable for outdoor lighting applications, including landscape lighting, pathway illumination, and façade lighting.
6. Industrial and Warehouse Lighting: The driver can be used in industrial and warehouse settings to provide efficient and controllable lighting for large spaces, ensuring optimal visibility and energy savings.
7. Retrofit Projects: The BK-DEV LED Driver can be employed in retrofit projects to upgrade existing lighting systems with advanced dimming capabilities and improved energy efficiency.
| Model | Watts | Out-Voltage | Out-Current | Size(mm) |
| BK-DCV080-24V0D | 80W | 24VDC | 3.4A | L289*W48*H30 |
| BK-DCV080-48V0D | 80W | 48VDC | 1.7A | L289*W48*H30 |
| BK-DCV150-24V0D | 150W | 24VDC | 6.25A | L329*W48*H30 |
| BK-DCV150-48V0D | 150W | 48VDC | 3.12A | L329*W48*H30 |
| BK-DCV200-24V0D | 200W | 24VDC | 8.3A | L369*W48*H30 |
| BK-DCV200-24V0D | 200W | 48VDC | 4.15A | L369*W48*H30 |
| Input | 220-240VAC | Brand | BOKE |
| Efficiency | >90% | PF | >0.99 |
| Ta |
55℃ |
Tc |
90℃ |
| Dimming | 1-100% |
Flicker-free |
Pst LM <1,SVM <0.4 |
| Protection type | Class | | IP Rating | IP20 |
|
Output type  |
SELV |
Operation temperature |
-20°C-60°C |
| Warranty | 5 years | Certifications | SAA CE ROHS |
|
Surge |
L-N:2KV,L/N-FG:2KV |
||
|
Operation temperature |
-20°C-60°C |
||
| Features | 1. Support DALI-2/pushDIM+1-10V/10 PWM/Rx dimming+12V auxiliary power 2. Provide 12V 100mA auxiliary power supply to power control module or sensor 3. Soft dimming and flicker-free at any brightness 4. Dimming range 1-100%,support multiple lights dimming 5. Standby power input <0.5W,meets the requirements of ErP certification 6. High PF,high efficiency,low THD 7. SELV and Class I design,suitable for use outside the light 8. Compliance with CE,UKCA,ENEC,RCM,DALI-2 and other certifications |
||
Send Your Inquiry
1. Versatility: The BK-DEV LED Driver supports multiple dimming methods, including DALI-2, pushDIM, 0-10V, PWM, and Rx dimming. This versatility allows you to adapt to various lighting control systems and meet the specific requirements of your projects.
2. Precise Dimming Control: With a dimming range of 1-100%, the BK-DEV LED Driver provides precise control over lighting levels, enabling you to create the desired ambiance and enhance user experience.
3. Flicker-Free Performance: The driver ensures flicker-free lighting at any brightness level. This feature is crucial for visual comfort, reducing eye strain, and maintaining consistent lighting quality.
4. Energy Efficiency: The BK-DEV LED Driver has a high power factor (>0.99) and efficiency (>90%), optimizing energy utilization and reducing operational costs. It promotes energy-saving initiatives and sustainability.
5. Compliance and Safety: The driver is compliant with various certifications, including CE, UKCA, ENEC, RCM, and DALI-2. It also features SELV and Class I design, ensuring safety and meeting regulatory requirements.
6. Long Lifespan: With a lifespan of 100,000 hours, the BK-DEV LED Driver offers long-term reliability, reducing maintenance and replacement costs.
7. Auxiliary Power Supply: The inclusion of a 12V 100mA auxiliary power supply allows you to power control modules or sensors conveniently, enhancing the flexibility and functionality of your lighting system.
8. Suitable for Outdoor Use: The SELV and Class I design make the BK-DEV LED Driver suitable for outdoor lighting applications, expanding your options for design and installation.
Q1: What is the input voltage range for the BK-DEV LED Driver?
A1: The input voltage range is 220-240VAC, with a limited voltage of 180-264VAC.
Q2: What is the power output range of the BK-DEV LED Driver?
A2: The BK-DEV LED Driver is available in power options of 80W, 150W, and 200W.
Q3: Does the driver support dimming?
A3: Yes, the BK-DEV LED Driver supports various dimming methods, including DALI-2, pushDIM, 0-10V, PWM, and Rx dimming.
Q4: What is the dimming range of the BK-DEV LED Driver?
A4: The dimming range is from 1% to 100%, allowing for precise control over lighting levels.
Q5: Is the driver flicker-free at any brightness level?
A5: Yes, the BK-DEV LED Driver ensures flicker-free performance at any brightness level, enhancing visual comfort.
Q6: Does the BK-DEV LED Driver comply with safety standards?
A6: Yes, the driver is compliant with various certifications, including CE, UKCA, ENEC, RCM, and DALI-2.
Q7: Can the driver be used for outdoor lighting applications?
A7: Yes, the SELV and Class I design of the BK-DEV LED Driver make it suitable for outdoor use.
Q8: What is the lifespan of the BK-DEV LED Driver?
A8: The driver has a lifespan of 100,000 hours, ensuring long-term reliability.
Q9: Does the BK-DEV LED Driver have an auxiliary power supply?
A9: Yes, the driver provides a 12V 100mA auxiliary power supply for control modules or sensors.
Q10: Is the BK-DEV LED Driver energy-efficient?
A10: Yes, the driver has a high power factor (>0.99) and efficiency (>90%), optimizing energy utilization.
Q11: Can the BK-DEV LED Driver support multiple lights dimming?
A11: Yes, the driver supports multiple lights dimming, providing flexibility for lighting control.
Q12: Does the driver have surge protection?
A12: Yes, the BK-DEV LED Driver has surge protection with surge ratings of L-N: 2KV and L/N-FG: 2KV.
Q13: What is the operational temperature range for the BK-DEV LED Driver?
A13: The driver can operate within a temperature range of -20°C to 60°C.
Q14: What is the power-on time for the BK-DEV LED Driver?
A14: The power-on time is less than 0.7 seconds, ensuring quick and reliable operation.
Q15: Can the BK-DEV LED Driver meet ErP certification requirements?
A15: Yes, the standby power input is less than 0.5W, meeting the requirements of ErP certification.
DALI 2 LED Driver DT6 24VDC 48VDC PUSH 0-10V PWM with 12V Auxiliary Power, Model: BK-DEV, can be used in various lighting applications, including but not limited to:
1. Commercial Spaces: This driver is suitable for lighting installations in offices, retail stores, hotels, restaurants, and other commercial environments where precise dimming control and flicker-free performance are desired.
2. Residential Lighting: The BK-DEV LED Driver can be used in homes and apartments for indoor lighting applications, such as living rooms, bedrooms, kitchens, and dining areas, providing adjustable and comfortable lighting levels.
3. Hospitality and Entertainment: Whether it’s a hotel lobby, theater, nightclub, or event venue, the driver’s versatility and dimming capabilities make it ideal for creating dynamic lighting scenes and atmospheres.
4. Architectural Lighting: The driver can be utilized in architectural lighting projects to highlight building facades, monuments, bridges, and other structures, allowing for precise control over brightness and effects.
5. Outdoor Lighting: With its SELV and Class I design, the BK-DEV LED Driver is suitable for outdoor lighting applications, including landscape lighting, pathway illumination, and façade lighting.
6. Industrial and Warehouse Lighting: The driver can be used in industrial and warehouse settings to provide efficient and controllable lighting for large spaces, ensuring optimal visibility and energy savings.
7. Retrofit Projects: The BK-DEV LED Driver can be employed in retrofit projects to upgrade existing lighting systems with advanced dimming capabilities and improved energy efficiency.
