LED Track Light 4 Wires 3 Phase COB 15W 30W 45W CRI 92 97

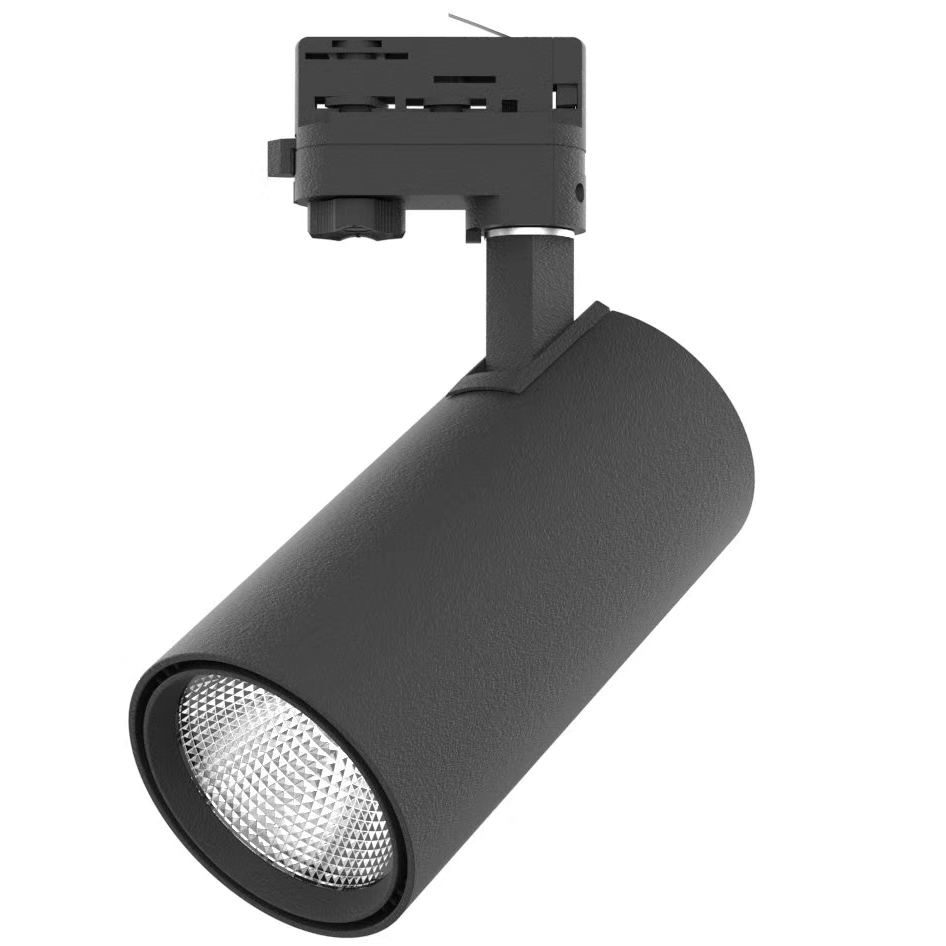

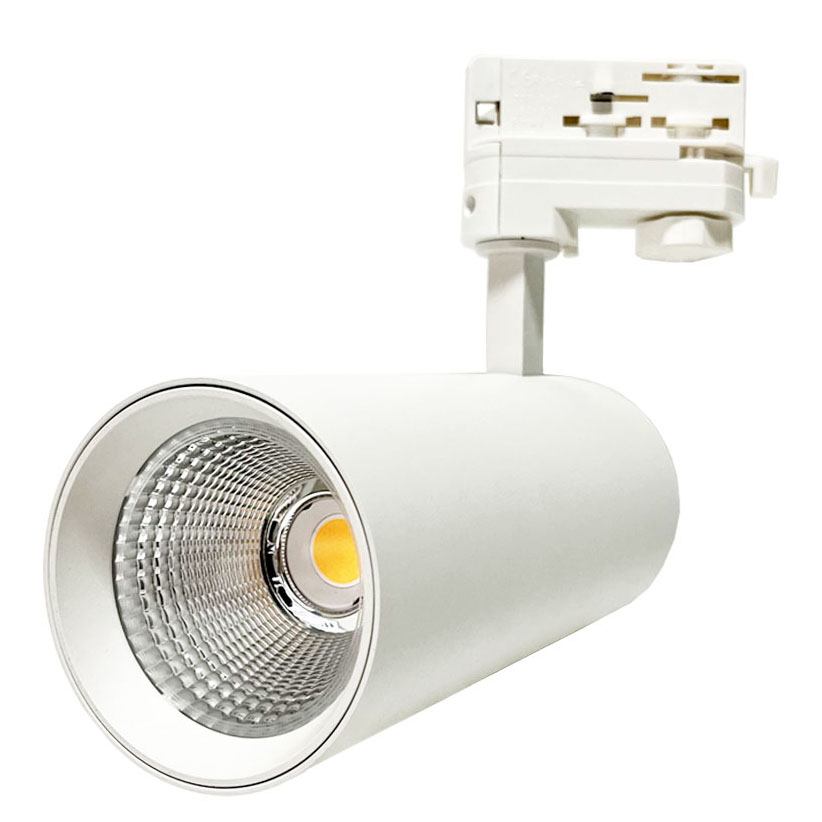

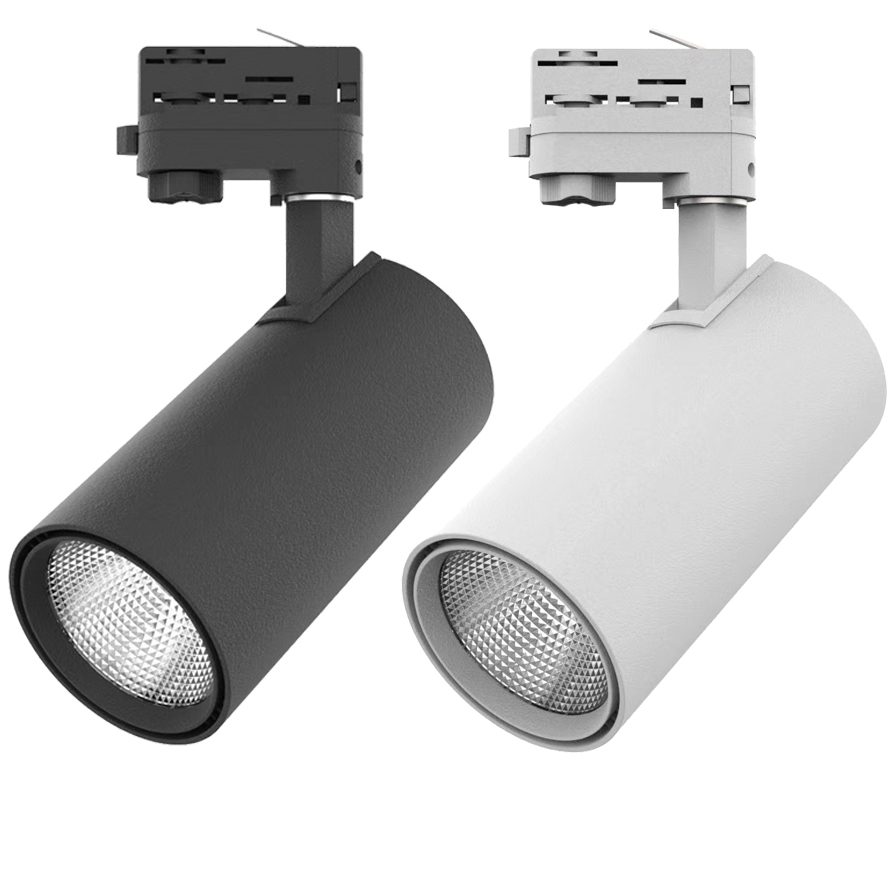

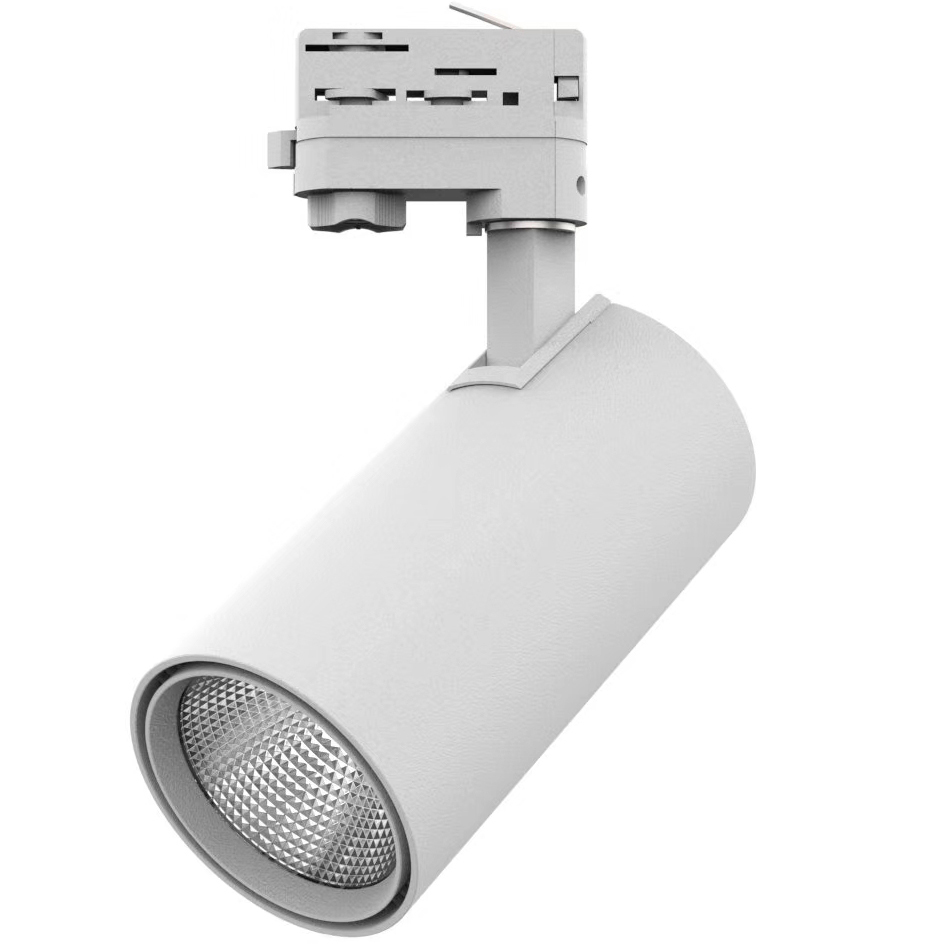

LED Track Light ILED-TL-D Utilising an extruded aluminium body with speccial design, High Brightness Citizen COB or CREE COB LED and High Quality Tridonic, VS or Osram LED Driver. Our Track LED Light are perfect for providing low energy/long life lighting solutions for spotlighting for shop,mall and musuem applications. High CRI(color rendering index) provide better performance.15°,25°,36° and 60° can meet any application sense.
Highlights
→ High Lumen 110LM/W
→ CREE COB,CRI>92
→ VS Built-in Driver
→ 1 Phase or 3 Phase Adapter
→ 15°,25°,36° and 60°
| Model | Wattage | Lumen Output | Dimensions |
| ILED-TL-D2 | 10W | 1000LM (100LM / W) | D62xL170xH140mm |
| ILED-TL-D3 | 20W | 2000LM (100LM / W) | D72xL185xH170mm |
| ILED-TL-D4 | 30W | 3000LM (100LM / W) | D80xL185xH175mm |
| ILED-TL-D6 | 40W | 4000LM (100LM / W) | D94xL190xH180mm |
| Input | 220-240VAC/110-277VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum+PC | PF | >0.9 |
| Watts | 10W/20W/30W/40W | Lumen Effective | 100LM/W |
| Lumen Output | 1000LM /2000LM/3000LM/4000LM | Adapt | 3 Phase 4 Wires for European
1 Phase 3 Wires for US
|
| Color Temperature | 2200-6000K | CRI | >92 , 95 or >97 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Angel | 12°,24°,36°or 60° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
As a wholesale, electrical contractor, lighting designer, or installation company, there are several compelling reasons to choose the LED Track Light (model ILED-TL-D) for your projects:
Versatility: The LED Track Light offers a range of wattages (15W, 30W, and 45W) and four different sizes, providing flexibility to meet various lighting requirements and installation preferences.
High-Quality Lighting: With CREE COB LED technology and a color rendering index (CRI) of 92 (standard), the track light ensures excellent color accuracy and vibrant illumination, enhancing the visual appeal of any space.
Customizable Lighting Ambiance: The adjustable color temperature range from 2200K to 6000K allows you to create the desired lighting ambiance, catering to different environments and moods.
Reliable Performance: The built-in quality VS, Osram, or Tridonic driver ensures reliable and flicker-free operation, while the power factor exceeding 0.9 guarantees efficient energy usage.
Durability and Heat Dissipation: The aluminum body construction not only provides durability but also aids in efficient heat dissipation, contributing to the longevity of the product.
Energy Efficiency: With lumen efficacy of up to 110LM/W, the LED Track Light offers high energy efficiency, resulting in cost savings and reduced environmental impact.
Installation Flexibility: The track light is compatible with both 4 wires 3-phase and 1-phase adapters, allowing for easy integration into existing electrical systems.
Dimming Options: The availability of DALI or Triac Phase Dimmable functionality provides convenient control over the light’s brightness, enabling customization and energy savings.
Suitable for Various Applications: The LED Track Light is suitable for a wide range of applications, including retail stores, art galleries, museums, showrooms, hospitality spaces, and residential settings, making it a versatile choice for different projects.
Long Lifespan: With a lifespan of 50,000 hours, this track light offers long-lasting performance, reducing maintenance costs and ensuring consistent lighting quality over an extended period.
Q1: What wattages are available for the LED Track Light?
A1: The LED Track Light is available in wattages of 10w,15W,20w,25w, 30W, and 40W.
Q2: What is the standard color rendering index (CRI) of the LED Track Light?
A2: The standard CRI for the LED Track Light is 92.
Q3: Can I choose different color temperatures for this track light?
A3: Yes, you can select a color temperature ranging from 2200K to 6000K for the LED Track Light.
Q4: What is the input voltage range for the LED Track Light?
A4: The LED Track Light operates on a wide input voltage range of 220-240VAC or 110-277VAC.
Q5: How many sizes are available for the LED Track Light?
A5: The LED Track Light comes in four different sizes to accommodate various installation preferences.
Q6: What kind of LED source does this track light use?
A6: The LED Track Light utilizes high-quality CREE COB LEDs.
Q7: What type of driver is built into the LED Track Light?
A7: The LED Track Light is equipped with a built-in quality VS, Osram, or Tridonic driver.
Q8: Does the LED Track Light have a high power factor?
A8: Yes, the LED Track Light has a power factor greater than 0.9.
Q9: Is the LED Track Light flicker-free?
A9: Yes, the LED Track Light offers flicker-free lighting.
Q10: What material is used for the body of the LED Track Light?
A10: The LED Track Light has an aluminum body construction.
Q11: What is the lumen efficacy of the LED Track Light?
A11: The LED Track Light provides lumen efficacy of up to 110LM/W.
Q12: Is the LED Track Light suitable for spot lighting applications?
A12: Yes, the LED Track Light is designed to provide beautiful spot lighting.
Q13: Can the LED Track Light be used in commercial settings?
A13: Yes, the LED Track Light is suitable for commercial spaces such as retail stores, showrooms, and hospitality venues.
Q14: Does the LED Track Light support dimming?
A14: Yes, the LED Track Light offers the option of DALI or Triac Phase Dimmable functionality.
Q15: What is the expected lifespan of the LED Track Light?
A15: The LED Track Light has a lifespan of 50,000 hours.
Commonly used in art galleries, museums, and retail stores for accentuating specific objects or displays. In residential spaces, they are used for highlighting artwork, architectural features, or task areas. LED track spot lights are also favored in hospitality venues like hotels and restaurants to create ambiance and focus attention on key areas. Their adjustable nature allows for flexible lighting arrangements, making them suitable for exhibitions, trade shows, and events. With their energy efficiency and long lifespan, LED track spot lights are a popular choice for effective and versatile lighting solutions.
LED Track Light for Gallary Lighting
1. Can this 4 Wires 3 Phase adapter meet European standard Track Rail?
Yes, our adapter is 4 Wires European standard track rail.
2. How to replace the old track lights in the store or shop?
At first you need to check what kind of adapter，if you don’t know, you can send the picture to our professional sales. Then tell us the watts, input voltage, lens and color temperature. iLed can give the best choice for you.
3. Do you have track rail system?
Yes, we have , please see below track rail detail.
Track Rail
| Model | Wattage | Lumen Output | Dimensions |
| ILED-TL-D2 | 10W | 1000LM (100LM / W) | D62xL170xH140mm |
| ILED-TL-D3 | 20W | 2000LM (100LM / W) | D72xL185xH170mm |
| ILED-TL-D4 | 30W | 3000LM (100LM / W) | D80xL185xH175mm |
| ILED-TL-D6 | 40W | 4000LM (100LM / W) | D94xL190xH180mm |
| Input | 220-240VAC/110-277VAC | LED Source | Citizen or CREE COB |
| Materials | Aluminum+PC | PF | >0.9 |
| Watts | 10W/20W/30W/40W | Lumen Effective | 100LM/W |
| Lumen Output | 1000LM /2000LM/3000LM/4000LM | Adapt | 3 Phase 4 Wires for European
1 Phase 3 Wires for US
|
| Color Temperature | 2200-6000K | CRI | >92 , 95 or >97 |
| Electrical Classification | Class I | IP Rating | IP42 |
| Beam Angel | 12°,24°,36°or 60° | Body Color | White/Black |
| Warranty | 3-5 years | Certifications | SAA CE ROHS |
Send Your Inquiry
As a wholesale, electrical contractor, lighting designer, or installation company, there are several compelling reasons to choose the LED Track Light (model ILED-TL-D) for your projects:
Versatility: The LED Track Light offers a range of wattages (15W, 30W, and 45W) and four different sizes, providing flexibility to meet various lighting requirements and installation preferences.
High-Quality Lighting: With CREE COB LED technology and a color rendering index (CRI) of 92 (standard), the track light ensures excellent color accuracy and vibrant illumination, enhancing the visual appeal of any space.
Customizable Lighting Ambiance: The adjustable color temperature range from 2200K to 6000K allows you to create the desired lighting ambiance, catering to different environments and moods.
Reliable Performance: The built-in quality VS, Osram, or Tridonic driver ensures reliable and flicker-free operation, while the power factor exceeding 0.9 guarantees efficient energy usage.
Durability and Heat Dissipation: The aluminum body construction not only provides durability but also aids in efficient heat dissipation, contributing to the longevity of the product.
Energy Efficiency: With lumen efficacy of up to 110LM/W, the LED Track Light offers high energy efficiency, resulting in cost savings and reduced environmental impact.
Installation Flexibility: The track light is compatible with both 4 wires 3-phase and 1-phase adapters, allowing for easy integration into existing electrical systems.
Dimming Options: The availability of DALI or Triac Phase Dimmable functionality provides convenient control over the light’s brightness, enabling customization and energy savings.
Suitable for Various Applications: The LED Track Light is suitable for a wide range of applications, including retail stores, art galleries, museums, showrooms, hospitality spaces, and residential settings, making it a versatile choice for different projects.
Long Lifespan: With a lifespan of 50,000 hours, this track light offers long-lasting performance, reducing maintenance costs and ensuring consistent lighting quality over an extended period.
Q1: What wattages are available for the LED Track Light?
A1: The LED Track Light is available in wattages of 10w,15W,20w,25w, 30W, and 40W.
Q2: What is the standard color rendering index (CRI) of the LED Track Light?
A2: The standard CRI for the LED Track Light is 92.
Q3: Can I choose different color temperatures for this track light?
A3: Yes, you can select a color temperature ranging from 2200K to 6000K for the LED Track Light.
Q4: What is the input voltage range for the LED Track Light?
A4: The LED Track Light operates on a wide input voltage range of 220-240VAC or 110-277VAC.
Q5: How many sizes are available for the LED Track Light?
A5: The LED Track Light comes in four different sizes to accommodate various installation preferences.
Q6: What kind of LED source does this track light use?
A6: The LED Track Light utilizes high-quality CREE COB LEDs.
Q7: What type of driver is built into the LED Track Light?
A7: The LED Track Light is equipped with a built-in quality VS, Osram, or Tridonic driver.
Q8: Does the LED Track Light have a high power factor?
A8: Yes, the LED Track Light has a power factor greater than 0.9.
Q9: Is the LED Track Light flicker-free?
A9: Yes, the LED Track Light offers flicker-free lighting.
Q10: What material is used for the body of the LED Track Light?
A10: The LED Track Light has an aluminum body construction.
Q11: What is the lumen efficacy of the LED Track Light?
A11: The LED Track Light provides lumen efficacy of up to 110LM/W.
Q12: Is the LED Track Light suitable for spot lighting applications?
A12: Yes, the LED Track Light is designed to provide beautiful spot lighting.
Q13: Can the LED Track Light be used in commercial settings?
A13: Yes, the LED Track Light is suitable for commercial spaces such as retail stores, showrooms, and hospitality venues.
Q14: Does the LED Track Light support dimming?
A14: Yes, the LED Track Light offers the option of DALI or Triac Phase Dimmable functionality.
Q15: What is the expected lifespan of the LED Track Light?
A15: The LED Track Light has a lifespan of 50,000 hours.
Commonly used in art galleries, museums, and retail stores for accentuating specific objects or displays. In residential spaces, they are used for highlighting artwork, architectural features, or task areas. LED track spot lights are also favored in hospitality venues like hotels and restaurants to create ambiance and focus attention on key areas. Their adjustable nature allows for flexible lighting arrangements, making them suitable for exhibitions, trade shows, and events. With their energy efficiency and long lifespan, LED track spot lights are a popular choice for effective and versatile lighting solutions.
LED Track Light for Gallary Lighting
1. Can this 4 Wires 3 Phase adapter meet European standard Track Rail?
Yes, our adapter is 4 Wires European standard track rail.
2. How to replace the old track lights in the store or shop?
At first you need to check what kind of adapter，if you don’t know, you can send the picture to our professional sales. Then tell us the watts, input voltage, lens and color temperature. iLed can give the best choice for you.
3. Do you have track rail system?
Yes, we have , please see below track rail detail.
Track Rail
